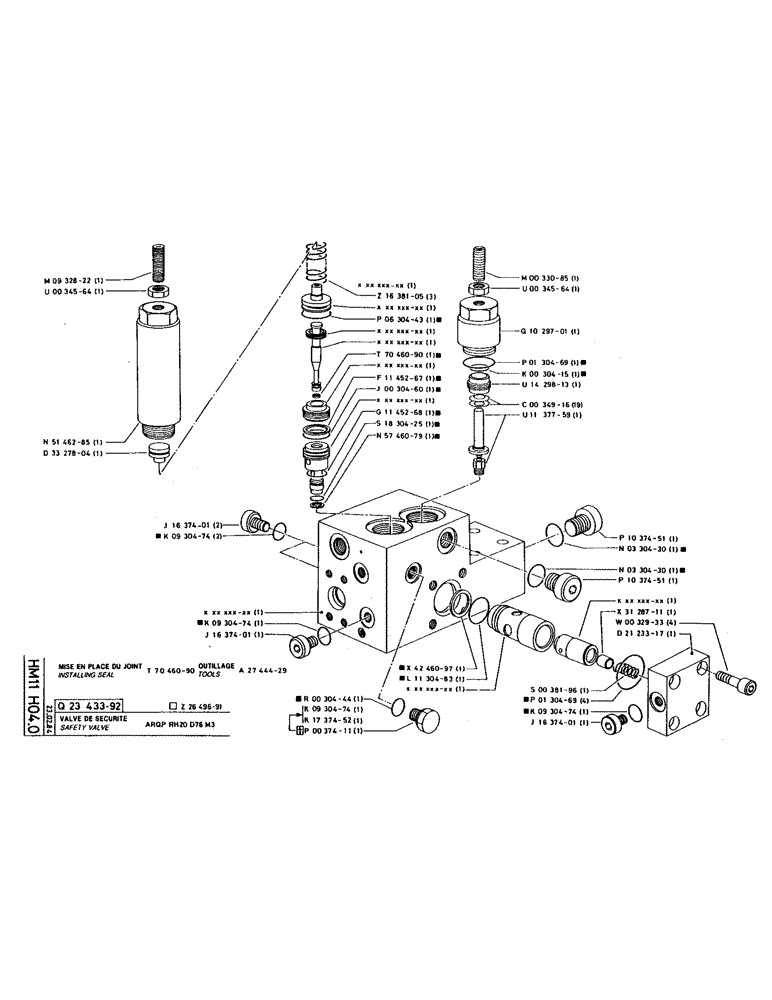

Запчасти Case 220 (179) - SAFETY VALVE (07) - HYDRAULIC SYSTEM

P932822

SCREW

/BOLT, M16 x 60

1шт.

P34564

NUT

1шт.

P34564 Nut. See SAT 71

1шт.

P5146285

CAP

COVER

1шт.

P3327804

TAPPET

PUSHER

1шт.

P1638105

COMPRESSION SPR

3шт.

P630443

O-RING

SEAL, 3.53 x 29.74-80, forms part of a kit

1шт.

P630443 Seal/O-ring. See SAT 81.

1шт.

P7046090

SEAL

forms part of a kit

1шт.

P1145267

BACK-UP RING

JOINT, 2.18 x 25.86-90, forms part of a kit

1шт.

P1145267-Joint Seal. See NIT 3211

1шт.

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2.62 x 25.07-80, forms part of a kit

1шт.

P30460 O-ring. See NIT 3211; SAT 81

1шт.

P1145268

SEAL

WASHER, 19.9 x 24.5 x 1.5, forms part of a kit

1шт.

P1145268-Seal. See EEX8009E; NEXSL00189; NIT 3211

1шт.

P1830425

O-RING

SEAL, 2.62 x 13.11-80, forms part of a kit

1шт.

P1830425-Seal. See NIT 3211

1шт.

P5746079

BACK-UP RING

JOINT, 18 x 1.1, forms part of a kit

1шт.

P33085

SCREW

/BOLT, M16 x 40

1шт.

P33085 Screw/Bolt. See SAT 71

1шт.

P34564

NUT

1шт.

P34564 Nut. See SAT 71

1шт.

P1029701

CAP

COVER

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2.62 x 40.94-80, forms part of a kit

1шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL, 2.62 x 20.29-80, forms part of a kit

1шт.

P30415 Seal. See EEX8007E; NIT 994

1шт.

P1429813

TAPPET

PUSHER

1шт.

P34916

RUBBER WASHER

SPRING WASHER, 25 x 12.2 x 1.5

19шт.

P1137759

ASSY

1шт.

P1637401

PLUG

2шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, forms part of a kit

2шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, forms part of a kit

1шт.

P1637401

PLUG

1шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15, forms part of a kit

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

1шт.

P1737452

PLUG

1шт.

P37411

PLUG

no longer sold

1шт.

P4246097

BACK-UP RING

JOINT, 3 x 25.81-90, forms part of a kit

1шт.

P1130483

O-RING

SEAL, 3.53 x 24.99-80, forms part of a kit

1шт.

P1130483-Seal. See EEX8010E, EEX8011E; NITS 3077, 3263, 3293, 3303, 3308; SAT #81

1шт.

P38196

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2.62 x 40.94-80, forms part of a kit

4шт.

P130469-Seal/0-ring. See NIT 3216

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, forms part of a kit

1шт.

P930474 Seal. See SAT 81

1шт.

P1637401

PLUG

1шт.

P3128711

BLOCK

SHIM

1шт.

P32933

SCREW

/BOLT, M10 x 30

4шт.

P32933 Screw/Bolt. See NITS 3077, 3228, 3263, 3293

1шт.

P2123317

LARGE PLATE

PLATE

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, forms part of a kit

1шт.

P1037451

PLUG

1шт.

P1037451

PLUG

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, forms part of a kit

1шт.

P330430 Seal. See EEX8006E, EEX8006ES1, EEX8007E; SAT 81

1шт.

P2343392

BRACKET

1шт.

P2649691

SEAL PACKAGE

SET OF SEALS, kit number

1шт.
