Запчасти Case 220 (176) - ELECTROVALVE (07) - HYDRAULIC SYSTEM

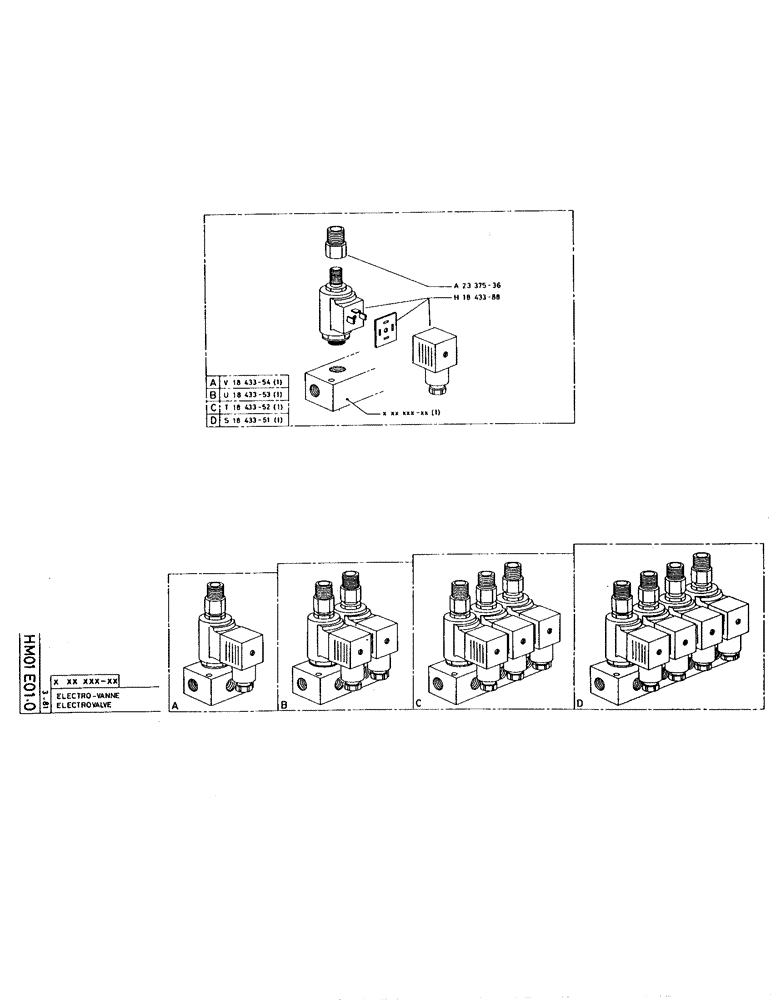

Схема запчастей Case 220 - (176) - ELECTROVALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P1843354

BLOCK

1шт.

P1843354-Block. See NIT 1004

1шт.

P1843353

BLOCK ASSY.

BLOCK

1шт.

P1843353-Block. See NIT 1004

1шт.

P1843352

BLOCK ASSY.

BLOCK

1шт.

P1843352-Block. See NIT 1004; USE P3143609, do not use the 4TH Solenoid.

1шт.

P1843351

BLOCK ASSY.

BLOCK

1шт.

P1843351-Block. See NIT 1004

1шт.

P2337536

FITTING

CONNECTION

1шт.

P1843388

SOLENOID VALVE

1шт.

P1843388-Electro Valve for 32 ft duplexed machines when tractor equipped w/single rear tires for in the furrow operation. For 24 ft, 28 ft & 32 ft duplex machines when tractor equipped w/dual rear tires or very large single rear tires for on the land operation.alveFor 32 ft duplexed machines when tractor equipped w/single rear tires for in the furrow operation. For 24 ft, 28 ft & 32 ft duplex machines when tractor equipped w/dual rear tires or very large single rear tires for on the land operation.alve.

1шт.

Выбрано товаров: 11
