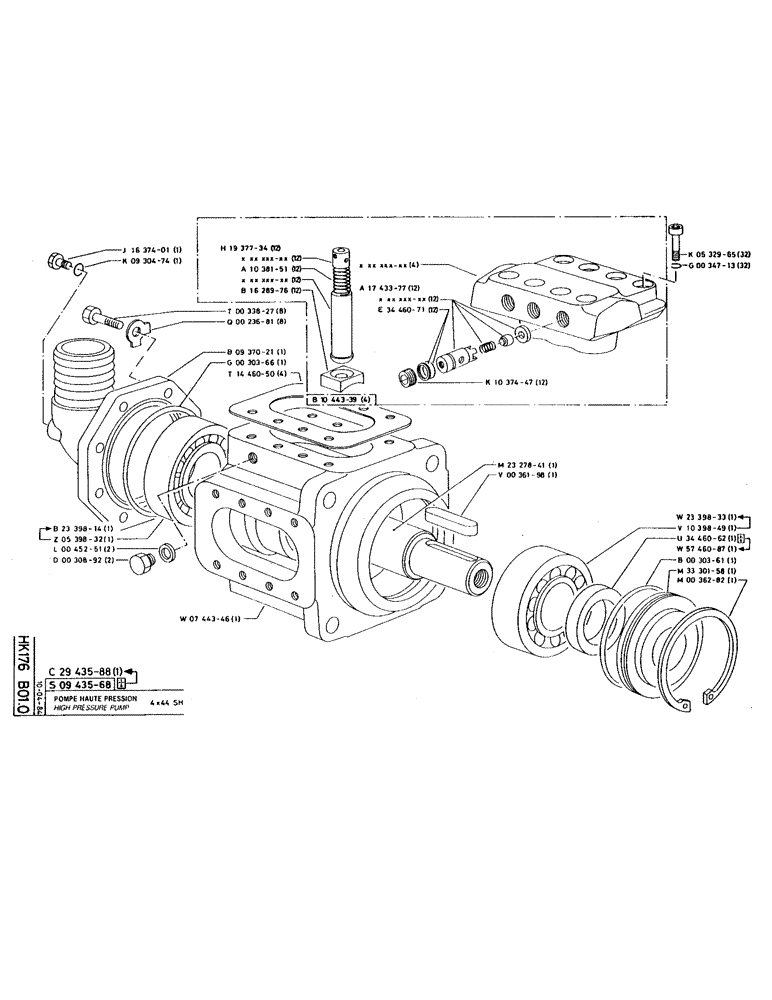

Запчасти Case 220 (172) - HIGH PRESSURE PUMP (07) - HYDRAULIC SYSTEM

P1937734

PISTON

12шт.

P1038151

COMPRESSION SPRING

COMPRESSION SPR

12шт.

P1628976

SKID/SHOE

12шт.

P1743377

VALVE

12шт.

P3446071

GASKET KIT

12шт.

P1037447

PLUG

12шт.

P1044339

HEAD (CYLINDER)

VALVE HEAD

4шт.

P1637401

PLUG

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

1шт.

P930474 Seal. See SAT 81

1шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

8шт.

P33827 Screw/Bolt. See NIT 994; SAT 80

1шт.

P23681

BRAKE

LOCKING

8шт.

P937021

FLANGE

1шт.

P30366

O-RING

SEAL, 6.99 x 158.12-80

1шт.

P1446050

SEAL

4шт.

P1446050-seal. See SAT 74

1шт.

P2339814

BEARING

1шт.

P539832

BEARING

1шт.

P45251

COMPOSITE SEAL

METAL PLASTICS

2шт.

P30892

SCREW

/BOLT

2шт.

P744346

HOUSING

1шт.

P2327841

CRANKSHAFT

1шт.

P36198

BUCKET TOOTH KEY

KEY, 18 x 11 x 110

1шт.

P532965

SCREW

/BOLT, M12 x 65

32шт.

P34713

WASHER

32шт.

See SAT 77.

1шт.

P2339833

BEARING

1шт.

P1039849

BEARING

1шт.

P3446062

OIL SEAL

SEAL RING, 70 x 90 x 7, no longer sold

1шт.

P5746087

BUSHING

1шт.

P30361

O-RING

SEAL, 6.99 x 139.07-80

1шт.

P30361-Seal. See NIT 1116

1шт.

P3330158

FLANGE

1шт.

P36282

RING, SNAP

LOCKING RING

1шт.

P2943588

PUMP

1шт.

P943568

PUMP

no longer sold

1шт.
