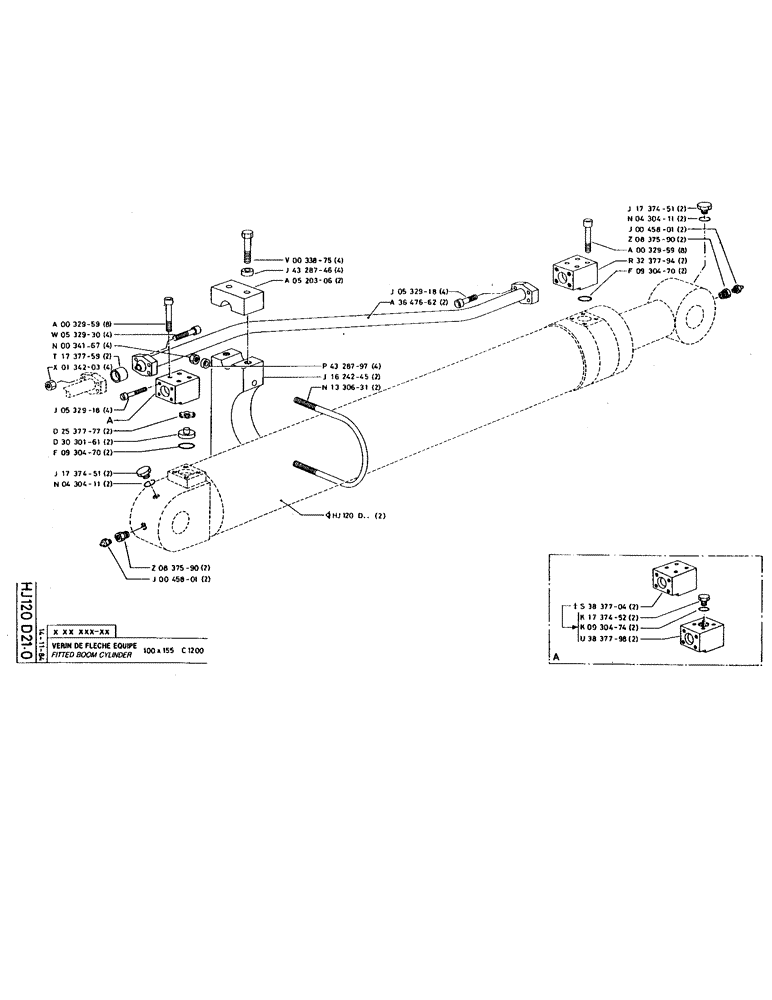

Запчасти Case 220 (167) - FITTED BOOM CYLINDER (07) - HYDRAULIC SYSTEM

P32959

SCREW

/BOLT, M16 x 100

8шт.

P532930

SCREW

/BOLT, M12 x 100

4шт.

337475

NUT,M12, Cl 10

4шт.

P930474 Seal. See SAT 81

1шт.

P1737759

JUNCTION

2шт.

337475

NUT,M12, Cl 10

4шт.

See NITS 3077, 3263, 3293

1шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

4шт.

P2537777

VALVE POPPET

VALVE

2шт.

P3030161

STOP

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

2шт.

P1737451

PLUG

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P837590

END FITTING

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P33875

SCREW

/BOLT, M16 x 70

4шт.

P4328746

WASHER

16.5 x 11 x 30

4шт.

See EEX8006E, EEX8006ES1

1шт.

P520306

SHIN

BRACKET

2шт.

P4328797

WASHER

12.5 x 8 x 25

4шт.

P4328797 Washer. See EEX8006E, EEX8006ES1, EEX8011E; NITS 994, 3263, 3293, 3294, 3303; SAT 72

1шт.

P1624245

SHIN

BRACKET

2шт.

P1330631

STIRRUP

BRACKET, 203 x 155

2шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

4шт.

See NEXSB04090; NIT 996

1шт.

P3647662

PIPE

24 x 34

2шт.

P1737451

PLUG

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

See NEXMP00587; NIT 994

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

See NEXSL00189; NIT 3260; SAT 65

1шт.

P837590

END FITTING

2шт.

P32959

SCREW

/BOLT, M16 x 100

8шт.

P3237794

SHIN

BRACKET

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

2шт.

P3837704

SHIN

BRACKET, no longer exists on new model

2шт.

P1737452

PLUG

2шт.

P3837798

SHIN

BRACKET

2шт.
