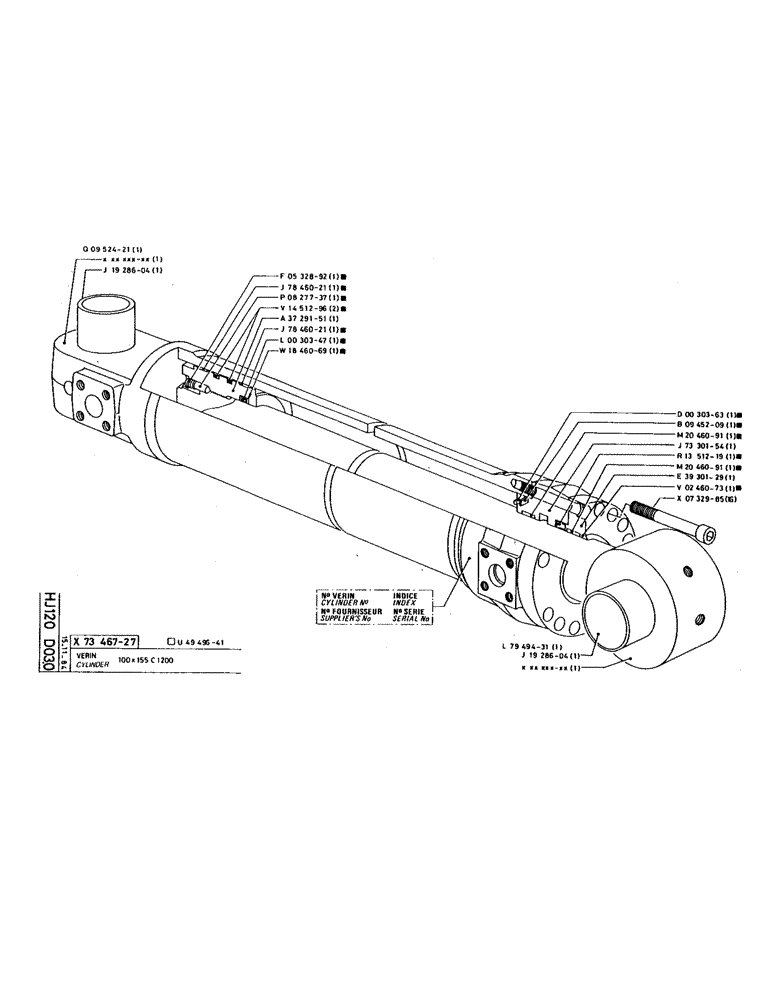

Запчасти Case 220 (166) - CYLINDER (07) - HYDRAULIC SYSTEM

P952421

JACK BODY

1шт.

P952421 Jack Body. Correct Description is Cylinder Tube.

1шт.

P1928604

BUSHING

65 x 85 x 100

1шт.

P1928604-Bushing. See NIT 1131

1шт.

P532892

SCREW

/BOLT, M14 x 14, forms part of a kit

1шт.

P7846021

BAND

STRIP, 15 x 1.5, forms part of a kit

1шт.

P827737

PIN

10 x 20, forms part of a kit

1шт.

P1451296

SEAL

forms part of a kit

2шт.

P3729151

PISTON

1шт.

P7846021

BAND

STRIP, 15 x 1.5, forms part of a kit

1шт.

P30347

O-RING

SEAL, 5.33 x 97.79-80, forms part of a kit

1шт.

P1846069

BACK-UP RING

JOINT, 4.65 x 99.01-90, forms part of a kit

1шт.

P30363

O-RING

SEAL, 6.99 x 145.42-80, forms part of a kit

1шт.

P945209

BACK-UP RING

JOINT, 5.99 x 144.17-90, forms part of a kit

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P7330154

CYLINDER END CAP

BEARING

1шт.

P1351219

SEAL

100 x 120 x 13.5, forms part of a kit

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P3930129

WASHER

1шт.

P246073

WIPER SEAL

SEAL, 100 x 110, forms part of a kit

1шт.

P732985

SCREW

/BOLT, M18 x 130

16шт.

P7949431

PISTON ROD

1шт.

P1928604

BUSHING

65 x 85 x 100

1шт.

P7346727

CYLINDER ASSY.

CYLINDER

1шт.

P4949641

SEAL PACKAGE

SET OF SEALS, kit number

1шт.
