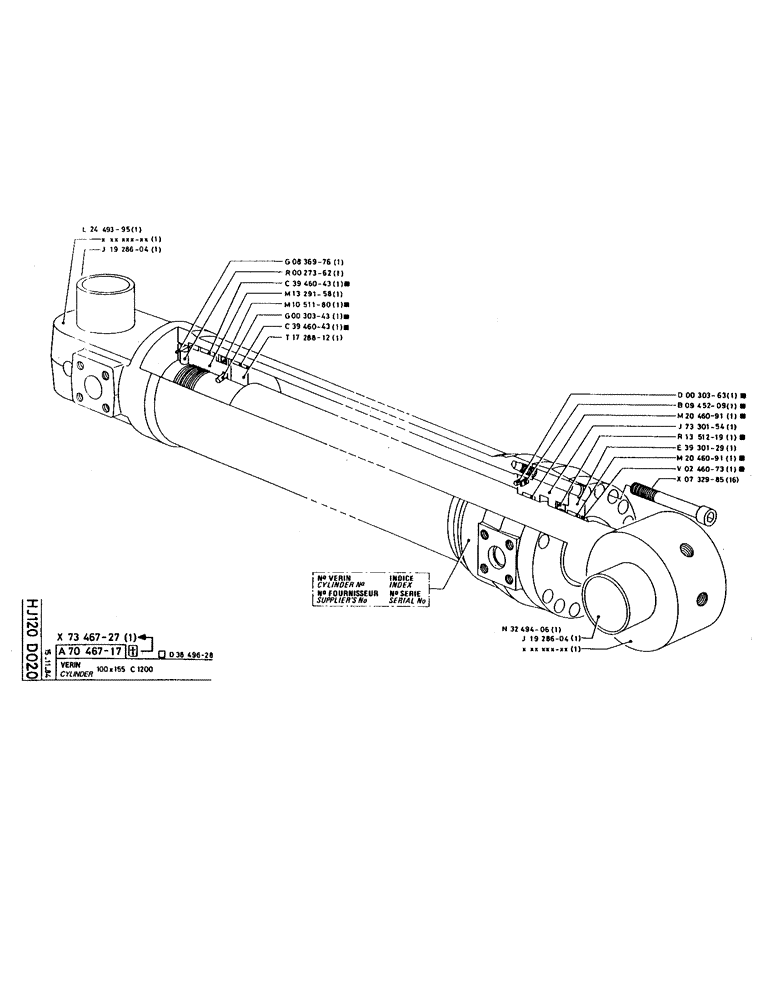

Запчасти Case 220 (165) - CYLINDER (07) - HYDRAULIC SYSTEM

P2449395

JACK BODY

1шт.

P2449395 Jack Body. Correct Description is Cylinder Tube.

1шт.

P1928604

BUSHING

65 x 85 x 100

1шт.

P1928604-Bushing. See NIT 1131

1шт.

P836976

SPECIAL RING

SPRING WASHER

1шт.

P836976 Spring Washer (Locking Ring). See NIT 1116.

1шт.

P27362

PIN

1шт.

P27362-Pin. See NIT 1116

1шт.

P3946043

SEGMENT

forms part of a kit

1шт.

P1329158

NUT

1шт.

P1051180

SEAL

130/155 x 25.5, forms part of a kit

1шт.

P30343

O-RING

SEAL, 5.33 x 85.09-80, forms part of a kit

1шт.

P3946043

SEGMENT

forms part of a kit

1шт.

P1728812

WASHER

1шт.

P30363

O-RING

SEAL, 6.99 x 145.42-80, forms part of a kit

1шт.

P945209

BACK-UP RING

JOINT, 5.99 x 144.17-90, forms part of a kit

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P7330154

CYLINDER END CAP

BEARING

1шт.

P1351219

SEAL

100 x 120 x 13.5, forms part of a kit

1шт.

P3930129

WASHER

1шт.

P2046091

SEGMENT

forms part of a kit

1шт.

P246073

WIPER SEAL

SEAL, 100 x 110, forms part of a kit

1шт.

P732985

SCREW

/BOLT, M18 x 130

16шт.

P3249406

PISTON ROD

1шт.

P1928604

BUSHING

65 x 85 x 100

1шт.

P7346727

CYLINDER ASSY.

CYLINDER

1шт.

P7046717

CYLINDER ASSY.

CYLINDER, no longer sold

1шт.

P3849628

SEAL PACKAGE

SET OF SEALS, kit number

1шт.
