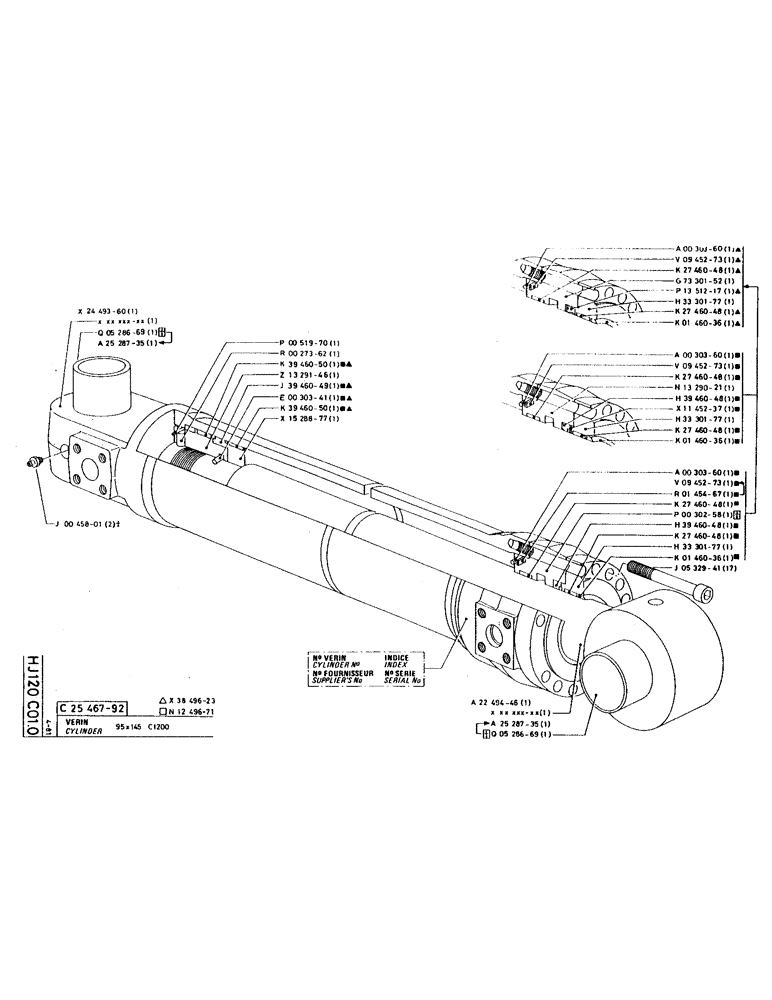

Запчасти Case 220 (163) - CYLINDER (07) - HYDRAULIC SYSTEM

P2449360

JACK BODY

1шт.

P2449360 Jack Body. Actually called a Cylinder

1шт.

P528669

BRONZE BUSHING

BRONZE BUSH, 65 x 85 x 100, no longer sold

1шт.

P2528735

BUSHING

65 x 85 x 100

1шт.

P51970

SPECIAL RING

SPRING WASHER

1шт.

P27362

PIN

1шт.

P27362-Pin. See NIT 1116

1шт.

P3946050

SEGMENT

forms part of a kit

1шт.

P1329146

NUT

1шт.

P3946049

SEAL

forms part of a kit

1шт.

P30341

O-RING

SEAL, 5.33 x 78.74-80, forms part of a kit

1шт.

P3946050

SEGMENT

forms part of a kit

1шт.

P1528877

WASHER

1шт.

P30360

O-RING

SEAL, 6.99 x 135.89-80, forms part of a kit

1шт.

P945273

BACK-UP RING

JOINT, 5.99 x 134.65-90, forms part of a kit

1шт.

P2746048

SEGMENT

forms part of a kit

1шт.

P7330152

CYLINDER END CAP

BEARING

1шт.

P1351217

SEAL

forms part of a kit

1шт.

P3330177

WASHER

1шт.

P2746048

SEGMENT

forms part of a kit

1шт.

P146036

WIPER SEAL

SEAL, 95 x 105, forms part of a kit

1шт.

P30360

O-RING

SEAL, 6.99 x 135.89-80, forms part of a kit

1шт.

P945273

BACK-UP RING

JOINT, 5.99 x 134.65-90, forms part of a kit

1шт.

P2746048

SEGMENT

forms part of a kit

1шт.

P1329021

CYLINDER END CAP

BEARING

1шт.

P1145237

BACK-UP RING

JOINT, 95 x 115 x 3, forms part of a kit

1шт.

P3330177

WASHER

1шт.

P2746048

SEGMENT

forms part of a kit

1шт.

P146036

WIPER SEAL

SEAL, 95 x 105, forms part of a kit

1шт.

P30360

O-RING

SEAL, 6.99 x 135.89-80, forms part of a kit

1шт.

P945273

BACK-UP RING

JOINT, 5.99 x 134.65-90, forms part of a kit

1шт.

P145467

BACK-UP RING

JOINT, 5.99 x 137.82-90, forms part of a kit

1шт.

P2746048

SEGMENT

forms part of a kit

1шт.

P30258

CYLINDER END CAP

BEARING, no longer sold

1шт.

P2746048

SEGMENT

forms part of a kit

1шт.

P3330177

WASHER

1шт.

P146036

WIPER SEAL

SEAL, 95 x 105, forms part of a kit

1шт.

P532941

SCREW

/BOLT, M16 x 130

17шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, , no longer exists on new model M8 x 1.25

2шт.

P45801 Seal. See NEXSL00189; NIT 3260; SAT 65

1шт.

P2249446

PISTON ROD

1шт.

P2528735

BUSHING

65 x 85 x 100

1шт.

P528669

BRONZE BUSHING

BRONZE BUSH, 65 x 85 x 100, no longer sold

1шт.

P2546792

CYLINDER, 95 x 145

1шт.

P3849623

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1249671

SEAL PACKAGE

SET OF SEALS, 95 x 145, kit number

1шт.
