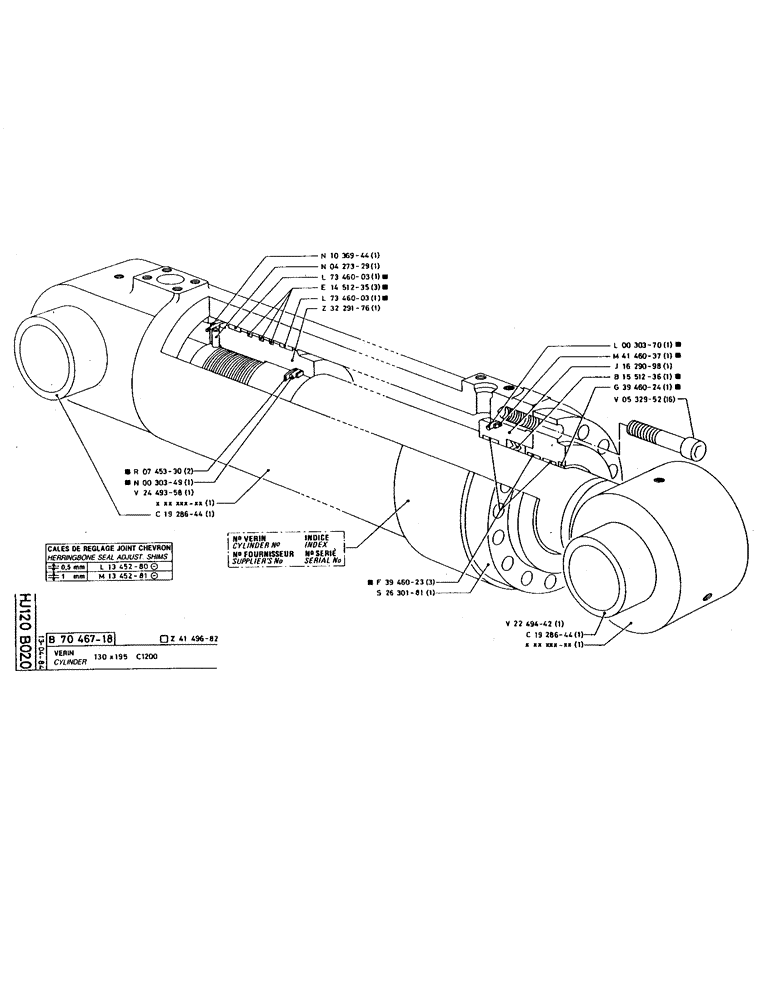

Запчасти Case 220 (158) - CYLINDER (07) - HYDRAULIC SYSTEM

P1036944

SPECIAL RING

SPRING WASHER

1шт.

P1036944-Spring Washer (locking Ring). see NIT 1116

1шт.

P427329

PIN

1шт.

P427329 Pin. See NIT 1116.

1шт.

P7346003

BAND

STRIP, 30 x 2, forms part of a kit

1шт.

P7346003 Strip. See NIT 1116.

1шт.

P1451235

SPECIAL MAT. SEAL

SEAL, forms part of a kit

3шт.

P1451216-seal See NIT 1116

1шт.

P7346003

BAND

STRIP, 30 x 2, forms part of a kit

1шт.

P3229176

PISTON

1шт.

P3229176 Piston (Piston Nut). See NIT 1116

1шт.

P30370

O-RING

SEAL, 6.99 x 183.52-80, forms part of a kit

1шт.

P30370 Seal, O-ring. See NIT 1116

1шт.

P4146037

BACK-UP RING

JOINT, 5.99 x 184.76-90, forms part of a kit

1шт.

P4146037 Joint (O-ring Backup Ring). See NIT 1116.

1шт.

P1629098

CYLINDER END CAP

BEARING

1шт.

P1629098-Bearing (Gland). See NIT 1116

1шт.

P1551236

SEAL

130 x 155, forms part of a kit

1шт.

P1551236-Seal. See NIT 1116

1шт.

P3946024

WIPER SEAL

SEAL, forms part of a kit

1шт.

P3946024 Seal. See NIT 1116.

1шт.

P532952

SCREW

/BOLT, M24 x 90

16шт.

P532952-Screw/Bolt. See NIT 1116.

1шт.

P745330

BACK-UP RING

JOINT, 4.65 x 105.49-90, forms part of a kit

2шт.

P745330 Joint (O-ring Backup Ring). See NIT 1116.

1шт.

P30349

O-RING

SEAL, 5.33 x 104.14-80, forms part of a kit

1шт.

P30349 O-ring. See NIT 1116

1шт.

P2449358

JACK BODY

1шт.

P2449358 Jack Body. Correct term is Cylinder

1шт.

P1928644

BUSHING

100/125 x 150

1шт.

P1928644-Bushing. See NIT 1131

1шт.

P3946023

SEGMENT

forms part of a kit

3шт.

P3946023 Segment (Support Strip). See NIT 1116

1шт.

P2630181

WASHER

1шт.

P2630181 Washer. See NIT 1116

1шт.

P2249442

PISTON ROD

1шт.

P1928644

BUSHING

100/125 x 150

1шт.

P7046718

CYLINDER ASSY.

CYLINDER

1шт.

P7046718 Cylinder. See NEXMP00389; NIT 1116

1шт.

P4149682

SEAL PACKAGE

SET, kit number

1шт.
