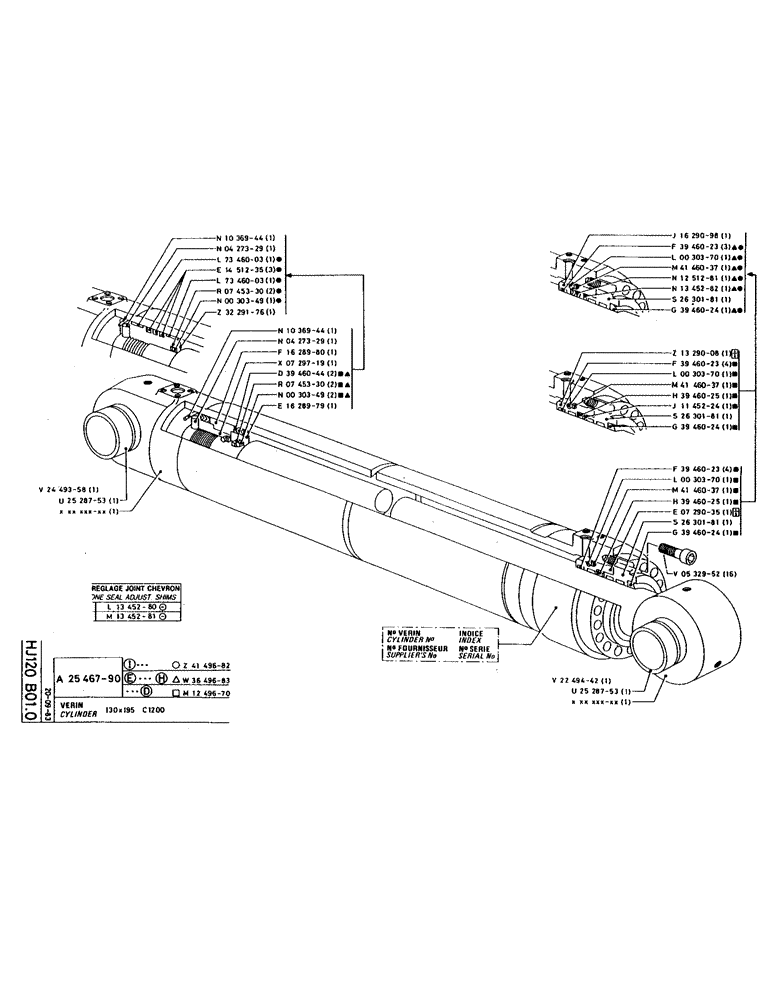

Запчасти Case 220 (157) - CYLINDER (07) - HYDRAULIC SYSTEM

P1036944

SPECIAL RING

SPRING WASHER

1шт.

P1036944-Spring Washer (locking Ring). see NIT 1116

1шт.

P427329

PIN

1шт.

P427329 Pin. See NIT 1116.

1шт.

P7346003

BAND

STRIP, 30 x 2, forms part of a kit6

1шт.

P7346003 Strip. See NIT 1116.

1шт.

P1451235

SPECIAL MAT. SEAL

SEAL, forms part of a kit

3шт.

P1451216-seal See NIT 1116

1шт.

P7346003

BAND

STRIP, 30 x 2, forms part of a kit

1шт.

P745330

BACK-UP RING

JOINT, 4.65 x 105.49-90, forms part of a kit

2шт.

P745330 Joint (O-ring Backup Ring). See NIT 1116.

1шт.

P30349

O-RING

SEAL, 5.33 x 104.14-80, forms part of a kit

1шт.

P30349 O-ring. See NIT 1116

1шт.

P3229176

PISTON

1шт.

P3229176 Piston (Piston Nut). See NIT 1116

1шт.

P1036944

SPECIAL RING

SPRING WASHER

1шт.

P427329

PIN

1шт.

P1628980

BUSHING

1шт.

P1628980 Bushing (Piston Ring). See NIT 1116

1шт.

P729719

NUT

1шт.

P729719 Nut (Piston Nut). See NIT 1116.

1шт.

P3946044

LINING

S, 165 x 195, forms part of a kit

2шт.

P3946044 Linings, Piston Seal. See NIT 1116.

1шт.

P745330

BACK-UP RING

JOINT, 4.65 x 105.49-90, forms part of a kit

2шт.

P30349

O-RING

SEAL, 5.33 x 104.14-80, forms part of a kit

2шт.

P1628979

WASHER

1шт.

P1628979-Washer (Piston Washer). See NIT 1116

1шт.

P1629098

CYLINDER END CAP

BEARING

1шт.

P1629098-Bearing (Gland). See NIT 1116

1шт.

P3946023

SEGMENT

forms part of a kit

3шт.

P30370

O-RING

SEAL, 6.99 x 183.52-80, forms part of a kit

1шт.

P4146037

BACK-UP RING

JOINT, 5.99 x 184.76-90, forms part of a kit

1шт.

P1251281

SEAL

forms part of a kit

1шт.

P1251281-Seal (Rod Seal). See NIT 1116

1шт.

P1345282

BACK-UP RING

JOINT, forms part of a kit

1шт.

P2630181

WASHER

1шт.

P3946024

WIPER SEAL

SEAL, forms part of a kit

1шт.

P1329008

CYLINDER END CAP

BEARING, no longer sold

1шт.

P1329008 Bearing (Gland). See NIT 1116

1шт.

P3946023

SEGMENT

forms part of a kit

4шт.

P3946023 Segment (Support Strip). See NIT 1116

1шт.

P30370

O-RING

SEAL, 6.99 x 183.52-80, forms part of a kit

1шт.

P30370 Seal, O-ring. See NIT 1116

1шт.

P4146037

BACK-UP RING

JOINT, 5.99 x 184.76-90, forms part of a kit

1шт.

P4146037 Joint (O-ring Backup Ring). See NIT 1116.

1шт.

P3946025

SEAL

forms part of a kit

1шт.

P2630181

WASHER

1шт.

P2630181 Washer (Gland). See NIT 1116

1шт.

P3946024

WIPER SEAL

SEAL, forms part of a kit

1шт.

P3946024 Seal, Scraper. See NIT 1116

1шт.

P3946023

SEGMENT

forms part of a kit

4шт.

P30370

O-RING

SEAL, 6.99 x 183.52-80, forms part of a kit

1шт.

P4146037

BACK-UP RING

JOINT, 5.99 x 184.76-90, forms part of a kit

1шт.

P3946025

SEAL

forms part of a kit

1шт.

P3946025 Seal, Rod. See NIT 1116.

1шт.

P729035

CYLINDER END CAP

BEARING, no longer sold

1шт.

P729035 Bearing. See NITS 792, 1116.

1шт.

P2630181

WASHER

1шт.

P3946024

WIPER SEAL

SEAL, forms part of a kit

1шт.

P532952

SCREW

/BOLT, M24 x 90

16шт.

P532952-Screw/Bolt. See NIT 1116.

1шт.

P2449358

JACK BODY

1шт.

P2528753

BUSHING, LARGE

BUSHING, 100 x 125 x 150

1шт.

P2249442

PISTON ROD

1шт.

P2528753

BUSHING, LARGE

BUSHING, 100 x 125 x 150

1шт.

P2546790

CYLINDER ASSY.

CYLINDER, 130 x 195

1шт.

P2546790 Cylinder. See NIT 1116

1шт.

P4149682

SEAL PACKAGE

SET, kit number

1шт.

P3649683

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1249670

SEAL PACKAGE

SET OF SEALS, 130 x 195, kit number

1шт.
