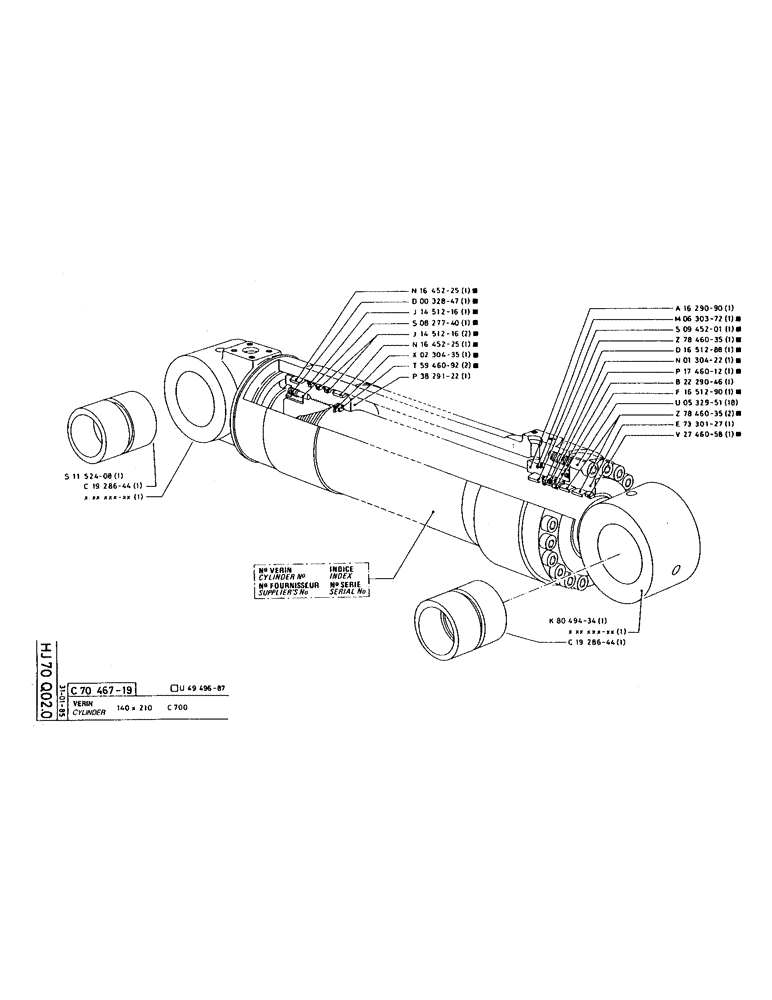

Запчасти Case 220 (156) - CYLINDER (07) - HYDRAULIC SYSTEM

P1152408

JACK BODY

1шт.

P1152408-Cylinder. Described "Jack Body".

1шт.

P1928644

BUSHING

100/125 x 150

1шт.

P8049434

PISTON ROD

1шт.

P1928644

BUSHING

100/125 x 150

1шт.

P1928644-Bushing. See NIT 1131

1шт.

P7046719

CYLINDER ASSY.

CYLINDER

1шт.

P7046719 Cylinder. See NIT 1116.

1шт.

P4949687

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1645225

BAND

STRIP, forms part of a kit

1шт.

P1645225-Strip (O-ring Backup Ring). See NIT 1116

1шт.

P32847

SCREW

/BOLT, M16 x 20, forms part of a kit

1шт.

P1451216

SPECIAL MAT. SEAL

SEAL, forms part of a kit

1шт.

P1451216-seal See NIT 1116

1шт.

P827740

PIN

forms part of a kit

1шт.

P1451216

SPECIAL MAT. SEAL

SEAL, forms part of a kit

1шт.

P1645225

BAND

STRIP, forms part of a kit

1шт.

P230435

O-RING

SEAL, 5.33 x 139.07-80, forms part of a kit

1шт.

P5946092

BACK-UP RING

JOINT, 4.65 x 140.41-90, forms part of a kit

1шт.

P3829122

PISTON

210/140 x 207

1шт.

P1629090

CYLINDER END CAP

BEARING

1шт.

P1629090-Bearing (Gland). See NIT 1116

1шт.

P630372

O-RING

SEAL, 6.99 x 196.22-80, forms part of a kit

1шт.

P630372 Seal (O-ring). See NIT 1116.

1шт.

P945201

BACK-UP RING

JOINT, 5.99 x 197.46-90, forms part of a kit

1шт.

P945201- Washer (O-ring Back-up Ring). See NIT 1116

1шт.

P7846035

BUSHING

forms part of a kit

1шт.

P7846035 Bushing (Support Strip). See NIT 1116.

1шт.

P1651288

SEAL

forms part of a kit

1шт.

P130422

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

SEAL, 3.53 x 158.34-80, forms part of a kit

1шт.

P130422-Seal (O-ring). See NIT 1116.

1шт.

P1746012

BACK-UP RING

JOINT, 3 x 159.21-90, forms part of a kit

1шт.

P1746012-Joint (O-ring Backup). See NIT 1116

1шт.

P2229046

BUSHING

1шт.

P2229046 Bushing (Seal-Carrier Ring). See NIT 1116

1шт.

P1651290

KIT

140/160 x 16, forms part of a kit

1шт.

P1651290-Ring (Rod Seal). See NIT 1116

1шт.

P532951

SCREW

/BOLT, M24 x 100

18шт.

P532951 Screw/Bolt. See NIT 1116 .

1шт.

P7846035

BUSHING

forms part of a kit

2шт.

P7330127

CYLINDER END CAP

BEARING

1шт.

P7330127 Bearing (Gland Washer). See NIT 1116.

1шт.

P2746058

WIPER SEAL

SEAL, 140 x 155, forms part of a kit

1шт.

P2746058 Seal. See NIT 1116

1шт.
