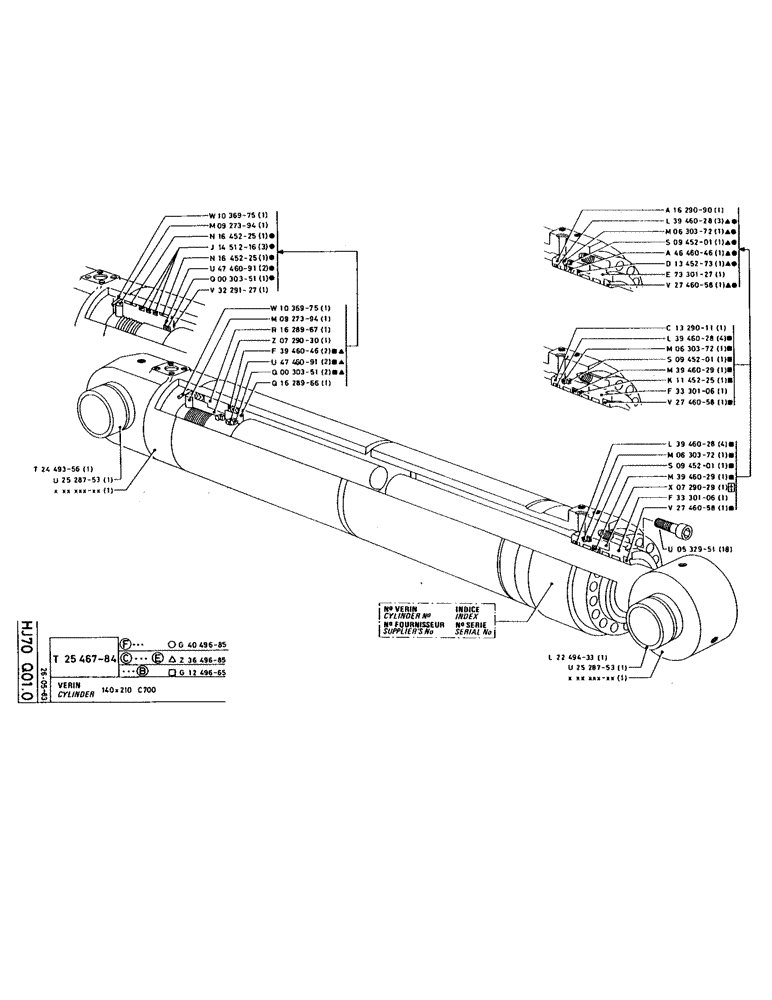

Запчасти Case 220 (155) - CYLINDER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
P1036975
SPECIAL RING
SPRING WASHER
1шт.
P1036975-Spring Washer. see NIT 1116
1шт.
P927394
LARGE PIN
PIN
1шт.
P927394 Pin. See NIT 1116.
1шт.
P1645225
BAND
STRIP, forms part of a kit
1шт.
P1451216
SPECIAL MAT. SEAL
SEAL, forms part of a kit
3шт.
P1451216-seal See NIT 1116
1шт.
P1645225
BAND
STRIP, forms part of a kit
1шт.
P1645225-Strip (O-ring Backup Ring). See NIT 1116
1шт.
P4746091
BACK-UP RING
JOINT, 4.65 x 111.84-90, forms part of a kit
2шт.
P30351
O-RING
SEAL, 5.33 x 110.49-80, forms part of a kit
1шт.
P3229127
PISTON
1шт.
P3229127 Piston (Gland). See NIT 1116
1шт.
P1036975
SPECIAL RING
SPRING WASHER
1шт.
P927394
LARGE PIN
PIN
1шт.
P1628967
BUSHING, LARGE
BUSHING
1шт.
P1628967-Bushing (Seal). See NIT 1116
1шт.
P729030
NUT
1шт.
P729030 Nut. See NIT 1116.
1шт.
P3946046
LINING
S, 180 x 210, forms part of a kit
2шт.
P3946046 Linings. See NIT 1116.
1шт.
P4746091
BACK-UP RING
JOINT, 4.65 x 111.84-90, forms part of a kit
2шт.
P4746091 Joint (Rod Seal). See NIT 1116.
1шт.
P30351
O-RING
SEAL, 5.33 x 110.49-80, forms part of a kit
2шт.
P30351 O-Ring (Support Strip). See EEX8006E, EEX8006ES1; NIT 1116
1шт.
P1628966
WASHER
1шт.
P1628966-Washer. See NIT 1116
1шт.
P1629090
CYLINDER END CAP
BEARING
1шт.
P1629090-Bearing (Gland). See NIT 1116
1шт.
P3946028
SEGMENT
forms part of a kit
3шт.
P630372
O-RING
SEAL, 6.99 x 196.22-80, forms part of a kit
1шт.
P945201
BACK-UP RING
JOINT, 5.99 x 197.46-90, forms part of a kit
1шт.
P4646046
SEAL
forms part of a kit
1шт.
P4646046-SEAL. See NIT 1007.
1шт.
P1345273
BACK-UP RING
JOINT, forms part of a kit
1шт.
P1345273 Seal See NIT 1007
1шт.
P7330127
CYLINDER END CAP
BEARING
1шт.
P7330127 Bearing (Gland Washer). See NIT 1116.
1шт.
P2746058
WIPER SEAL
SEAL, 140 x 155, forms part of a kit
1шт.
P1329011
BEARING
1шт.
P1329011 Bearing (Gland). See NIT 1116
1шт.
P3946028
SEGMENT
forms part of a kit
4шт.
P3946028 Segment, Rod. See NIT 1116.
1шт.
P630372
O-RING
SEAL, 6.99 x 196.22-80, forms part of a kit
1шт.
P630372 Seal (O-ring). See NIT 1116.
1шт.
P945201
BACK-UP RING
JOINT, 5.99 x 197.46-90, forms part of a kit
1шт.
P945201- Washer (O-ring Back-up Ring). See NIT 1116
1шт.
P3946029
SEAL
forms part of a kit
1шт.
P3946029 Seal. See NIT 1116.
1шт.
P1145225
JOINT, 141 x 170 x 4, forms part of a kit
1шт.
P1145225-JointT (O-ring Back-up Ring). see NIT 1116
1шт.
P3330106
WASHER
1шт.
P3330106 Washer. See NIT 1116
1шт.
P2746058
WIPER SEAL
SEAL, 140 x 155, forms part of a kit
1шт.
P2746058 Lining (Scaper Seal). See NIT 1116
1шт.
P3946028
SEGMENT
forms part of a kit
4шт.
P630372
O-RING
SEAL, 6.99 x 196.22-80, forms part of a kit
1шт.
P945201
BACK-UP RING
JOINT, 5.99 x 197.46-90, forms part of a kit
1шт.
P3946029
SEAL
forms part of a kit
1шт.
P729029
CYLINDER END CAP
BEARING, no longer sold
1шт.
P729029 Bearing (Gland). See NIT 1116 .
1шт.
P3330106
WASHER
1шт.
P2746058
WIPER SEAL
SEAL, 140 x 155, forms part of a kit
1шт.
P532951
SCREW
/BOLT, M24 x 100
18шт.
P532951 Screw/Bolt. See NIT 1116 .
1шт.
P2449356
JACK BODY
1шт.
P2528753
BUSHING, LARGE
BUSHING, 100 x 125 x 150
1шт.
P2249433
PISTON ROD
1шт.
P2528753
BUSHING, LARGE
BUSHING, 100 x 125 x 150
1шт.
P2546784
CYLINDER ASSY.
CYLINDER, 140 x 210
1шт.
P2546784 Cylinder. See NIT 1116
1шт.
P4049685
SEAL PACKAGE
SET OF SEALS, kit number
1шт.
P4049685 Pack Kit. See NIT 1007.
1шт.
P3649685
SEAL PACKAGE
SET OF SEALS, kit number
1шт.
P1249665
SEAL PACKAGE
SET OF SEALS, 140 x 210, kit number
1шт.
Выбрано товаров: 75
