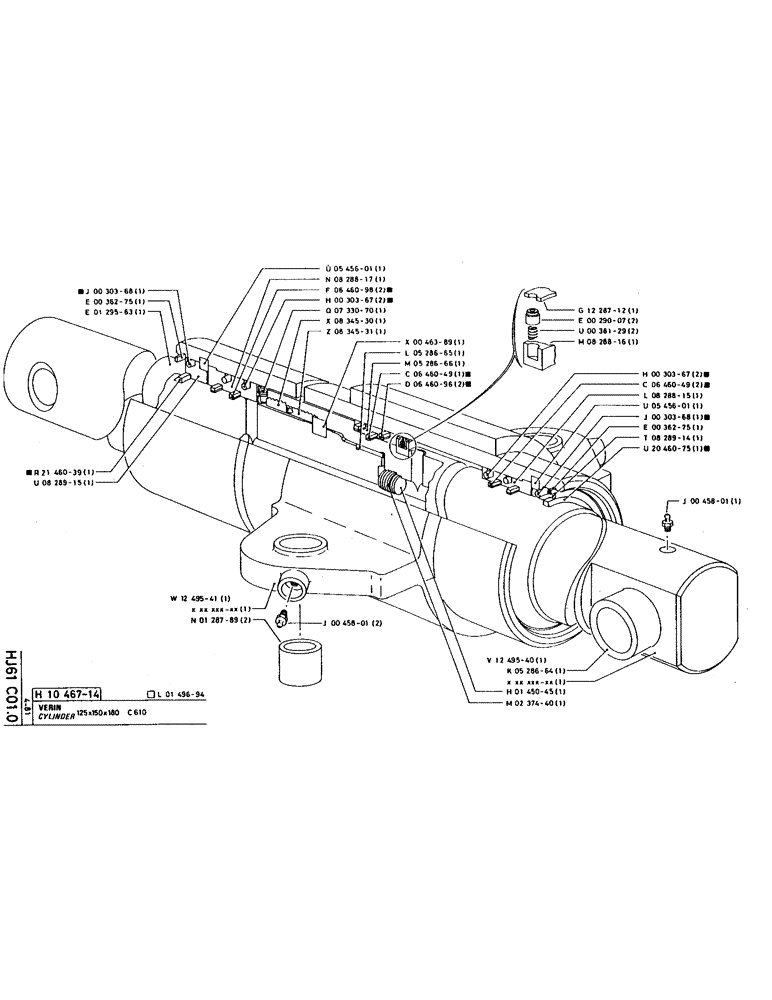

Запчасти Case 220 (153) - CYLINDER (07) - HYDRAULIC SYSTEM

P30368

O-RING

SEAL, 6.99 x 170.82-80, forms part of a kit

1шт.

P36275

SNAP RING

LOCKING RING

1шт.

P129563

PISTON ROD

1шт.

P545601

WASHER

1шт.

P828817

CYLINDER END CAP

BEARING

1шт.

P646098

SPECIAL MAT. SEAL

SEAL, forms part of a kit

2шт.

P30367

O-RING

SEAL, 6.99 x 164.47-80, forms part of a kit

2шт.

P733070

SCREW

/BOLT

1шт.

P834530

NUT, M155 x 2

1шт.

P834531

NUT

M150 x 2

1шт.

P46389

SAFETY SET COLL

1шт.

P528665

BRONZE BUSHING

BRONZE BUSH

1шт.

P528666

BUSHING

1шт.

P646049

SPECIAL MAT. SEAL

SEAL, forms part of a kit

1шт.

P646096

SPECIAL MAT. SEAL

SEAL, forms part of a kit

2шт.

P646096 Seal. See NIT 1116.

1шт.

P1228712

RING

1шт.

P29007

SMALL PIN

PIN

2шт.

P38129

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P828816

BUSHING

1шт.

P30367

O-RING

SEAL, 6.99 x 164.47-80, forms part of a kit

2шт.

P30367 O-ring. See NIT 1116

1шт.

P646049

SPECIAL MAT. SEAL

SEAL, forms part of a kit

2шт.

P828815

CYLINDER END CAP

BEARING

1шт.

P545601

WASHER

1шт.

P30368

O-RING

SEAL, 6.99 x 170.82-80, forms part of a kit

1шт.

P36275

SNAP RING

LOCKING RING

1шт.

P828914

SAFETY SET COLL

1шт.

P2046075

WIPER SEAL

SEAL, 150 x 165, forms part of a kit

1шт.

P2046075-Seal See NIT 1116

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

P828915

COLLAR

SAFETY SET COLL

1шт.

P1249541

JACK BODY

1шт.

P128789

BUSHING

60 x 75 x 65

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P45801 Grease Fitting. See NEXSL00189; NIT 3260; SAT 65.

1шт.

P1249540

PISTON ROD

1шт.

P528664

BRONZE BUSHING

BRONZE BUSH, 60 x 75 x 110

1шт.

P145045

HOLE PLUG BUTTON

BUTTON

1шт.

P237440

PLUG, M25 x 1.5

1шт.

P1046714

CYLINDER, DE125 x 150 x 180

1шт.

P1046714-Cylinder. see SAT 94

1шт.

P149694

SET OF SEALS, 125 x 150 x 180, kit number

1шт.
