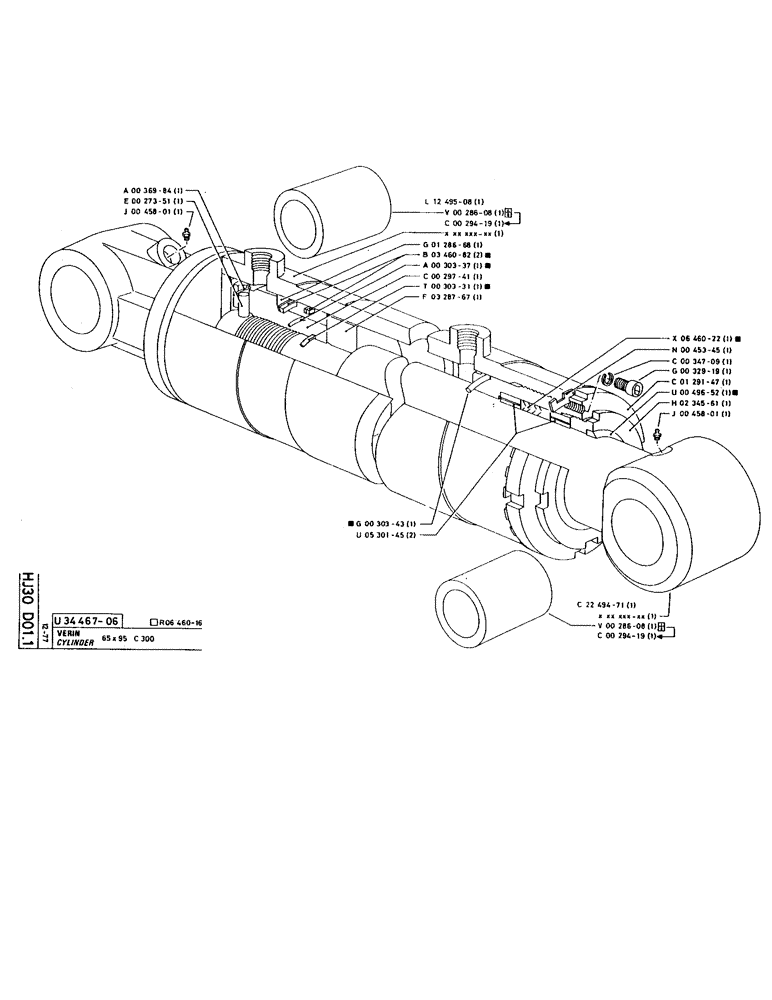

Запчасти Case 220 (151) - CYLINDER (07) - HYDRAULIC SYSTEM

P36984

SPECIAL RING

RING

1шт.

P27351

PIN

10 x 24

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

P45801 Grease Fitting. See NEXSL00189; NIT 3260; SAT 65.

1шт.

P1249508

JACK BODY

1шт.

P1249508-Cylinder Tube. Described in parts list as "Jack Body".

1шт.

P28608

BRONZE BUSHING

BRONZE BUSH, 40 x 50 x 80, no longer sold

1шт.

P29419

BUSHING

40 x 50 x 80

1шт.

P128668

BRONZE BUSHING

BRONZE BUSH

1шт.

P346082

SPECIAL MAT. SEAL

SEAL, forms part of a kit

2шт.

P30337

O-RING

SEAL, 5.33 x 66.04-80, forms part of a kit

1шт.

P29741

NUT

1шт.

P30331

O-RING

SEAL, 5.33 x 46.99-80, forms part of a kit

1шт.

P328767

WASHER

1шт.

P646022

LINING

S, 65 x 80, forms part of a kit

1шт.

P45345

WASHER

100 x 115 x 1

1шт.

P34709

WASHER

1шт.

P34709 Lock Washer. See SAT 77

1шт.

P32919

SCREW

/BOLT, M8 x 10

1шт.

P129147

CYLINDER END CAP

BEARING

1шт.

P49652

WIPER SEAL

SEAL, 65 x 75, forms part of a kit

1шт.

P234561

NUT

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

P30343

O-RING

SEAL, 5.33 x 85.09-80, forms part of a kit

1шт.

P530145

BEARING LINER

BEARING

2шт.

P2249471

PISTON ROD

1шт.

P28608

BRONZE BUSHING

BRONZE BUSH, 40 x 50 x 80, no longer sold

1шт.

P29419

BUSHING

40 x 50 x 80

1шт.

P3446706

CYLINDER

65 x 95

1шт.

P646016

SEAL PACKAGE

SET OF SEALS, 65 x 95, kit number

1шт.
