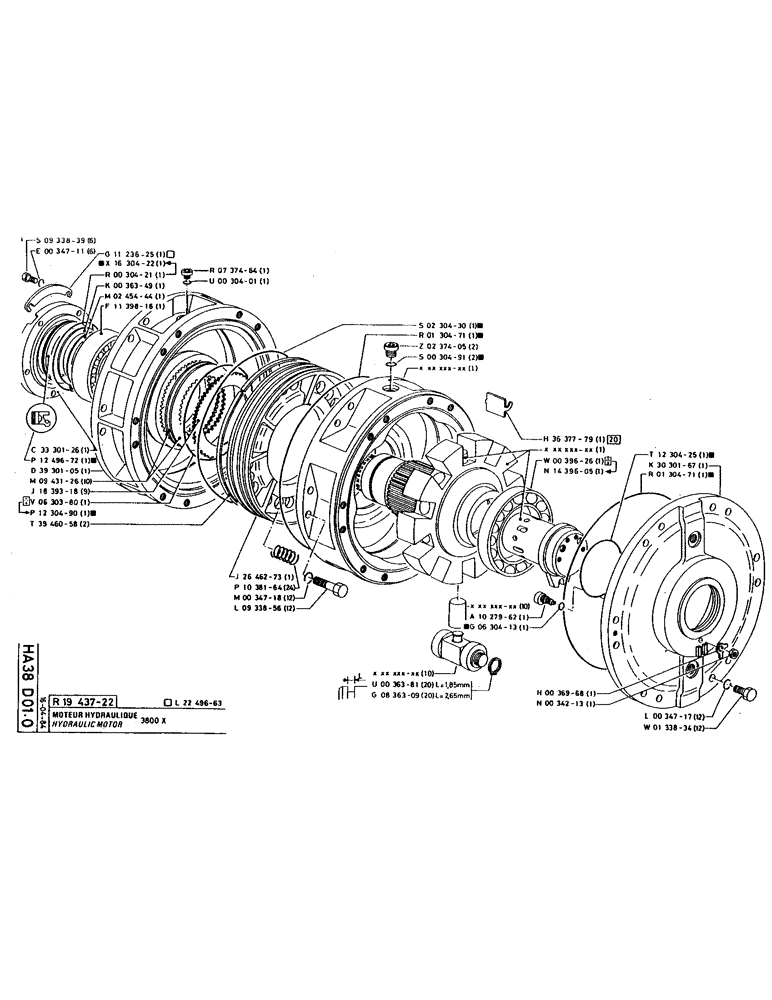

Запчасти Case 220 (147) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

P933839

SCREW

/BOLT, M10 x 35 x 35

6шт.

P933839 Screw/Bolt. See EEX8006E, EEX8006ES1; NITS 3257, 3263, 3275; SAT 84

1шт.

P34711

WASHER

6шт.

See NITS 1128, 3275

1шт.

P1123625

SHIM KIT

SET OF SHIMS, kit number

1шт.

P1630422

O-RING

SEAL, 3 x 214-60, forms part of a kit

1шт.

P30421

O-RING

3 x 220

1шт.

P36349

RING, SNAP

LOCKING RING

1шт.

P245444

WASHER

1шт.

P1139816

BEARING

1шт.

P737464

PLUG

1шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

1шт.

P230430

O-RING

SEAL, 6.99 x 456.06-60, forms part of a kit

1шт.

P130471

O-RING

4 x 530, forms part of a kit

1шт.

P237405

PLUG

3/4 x 12

2шт.

P30491

O-RING

2.5 x 28, forms part of a kit

2шт.

P3637779

KIT

SET

1шт.

P39626

BEARING

no longer sold

1шт.

P1439605

BEARING

1шт.

P1230425

O-RING

10 x 140, forms part of a kit

1шт.

P3030167

COVER

PLATE

1шт.

P130471

O-RING

4 x 530, forms part of a kit

1шт.

P3330126

CAP

COVER

1шт.

P1249672

ASSEMBLY

forms part of a kit

1шт.

P3930105

SLEWING RING

1шт.

P943126

DISC

10шт.

P1839318

DISC

9шт.

P630380

O-RING

no longer sold

1шт.

P1230490

O-RING

SEAL, 6.99 x 291.47-80, forms part of a kit

1шт.

P3946058

SEGMENT

2шт.

P2646273

PISTON

1шт.

P1038164

COMPRESSION SPRING

COMPRESSION SPR

24шт.

P34718

WASHER, LOCK

WASHER

12шт.

P933856

SCREW

/BOLT, M22 x 70

12шт.

P36381

RING, SNAP

LOCKING RING

20шт.

P836309

RING, SNAP

LOCKING RING

20шт.

P1027962

FINGER

DOWEL

1шт.

P630413

O-RING

SEAL, 2.62 x 9.19-80, forms part of a kit

1шт.

P36968

BRAKE

LOCKING

1шт.

P34213

NUT

1шт.

P34717

WASHER, LOCK

WASHER

12шт.

P133834

SCREW

/BOLT, M20 x 50

12шт.

P1943722

MOTOR, HYDRAULIC

HYD. MOTOR

1шт.

P2249663

SEAL PACKAGE

SET OF SEALS, kit number

1шт.
