Запчасти Case 220 (141) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

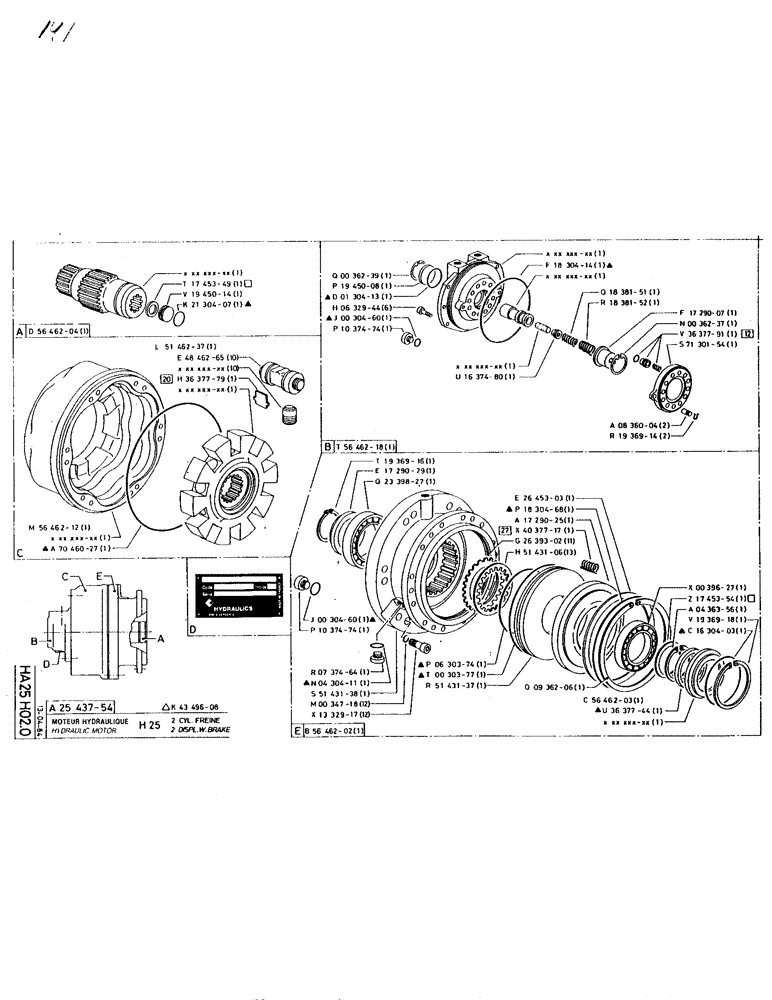

Схема запчастей Case 220 - (141) - HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P5646204

SHAFT

1шт.

P1745349

SHIM KIT

SET OF SHIMS, kit number

1шт.

P1945014

WASHER

1шт.

P2130407

O-RING

SEAL, 1.78 x 34.65-80, forms part of a kit

1шт.

P36239

RING, SNAP

LOCKING RING

1шт.

P36239-Snap Ring. See SAT 74

1шт.

P1945008

WASHER

1шт.

P130413

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAL, 2.62 x 61.60-80, forms part of a kit

1шт.

P632944

SCREW

/BOLT, M16 x 35

6шт.

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2.62 x 25.07-80, forms part of a kit

1шт.

P30460 O-ring. See NIT 3211; SAT 81

1шт.

P1037474

PLUG

M22 x 1.5

1шт.

P1830414

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

SEAL, 3.53 x 221.84-60, forms part of a kit

1шт.

P1838151

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P1838152

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P1729007

WASHER

1шт.

P36237

RING, SNAP

LOCKING RING

1шт.

P3637791

KIT

SET

1шт.

P7130154

LARGE PLATE

PLATE

1шт.

P1637480

PLUG

M20 x 1.5

1шт.

P836004

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 9 x 32

2шт.

P1936914

SEGMENT

2шт.

P5146237

CYLINDER BLOCK

1шт.

P4846265

LARGE PIN

PIN

10шт.

P4846265-Pin (Roller). See NIT 979.

1шт.

P3637779

KIT

SET

1шт.

P5646212

HOUSING

1шт.

P7046027

SEAL

forms part of a kit

1шт.

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2.62 x 25.07-80, forms part of a kit.

1шт.

P1037474

PLUG

M22 x 1.5

1шт.

P737464

PLUG

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, forms part of a kit

1шт.

See NEXMP00587; NIT 994

1шт.

P5143138

SLEWING RING

1шт.

P34718

WASHER, LOCK

WASHER

12шт.

P1332917

SCREW

/BOLT, M22 x 50

12шт.

P630374

O-RING

SEAL, 6.99 x 215.27-80, forms part of a kit

1шт.

P30377

O-RING

SEAL, 6.99 x 253.37-80, forms part of a kit

1шт.

P5143137

PISTON

1шт.

P936206

RING, SNAP

LOCKING RING

1шт.

P5646203

CAP

COVER

1шт.

P3637744

OIL SEAL

SEAL RING, forms part of a kit

1шт.

P1936916

SEGMENT

1шт.

P1729029

SPACER

1шт.

P2339827

BEARING

1шт.

P2645303

BLOCK

SHIM

1шт.

P1830468

O-RING

SEAL, 3.53 x 278.99-60, forms part of a kit

1шт.

P1729025

SUPPORT

1шт.

P4037717

KIT

SET

1шт.

P2639302

DISC

11шт.

P2639302-Disc. See NIT 800

1шт.

P5143106

DISC

13шт.

P39627

BEARING

1шт.

P1745354

SHIM KIT

SET OF SHIMS, kit number

1шт.

P436356

RING, SNAP

LOCKING RING

1шт.

P1936918

SEGMENT

1шт.

P1630403

O-RING

SEAL, 3.53 x 148.82-80, forms part of a kit

1шт.

Выбрано товаров: 57
