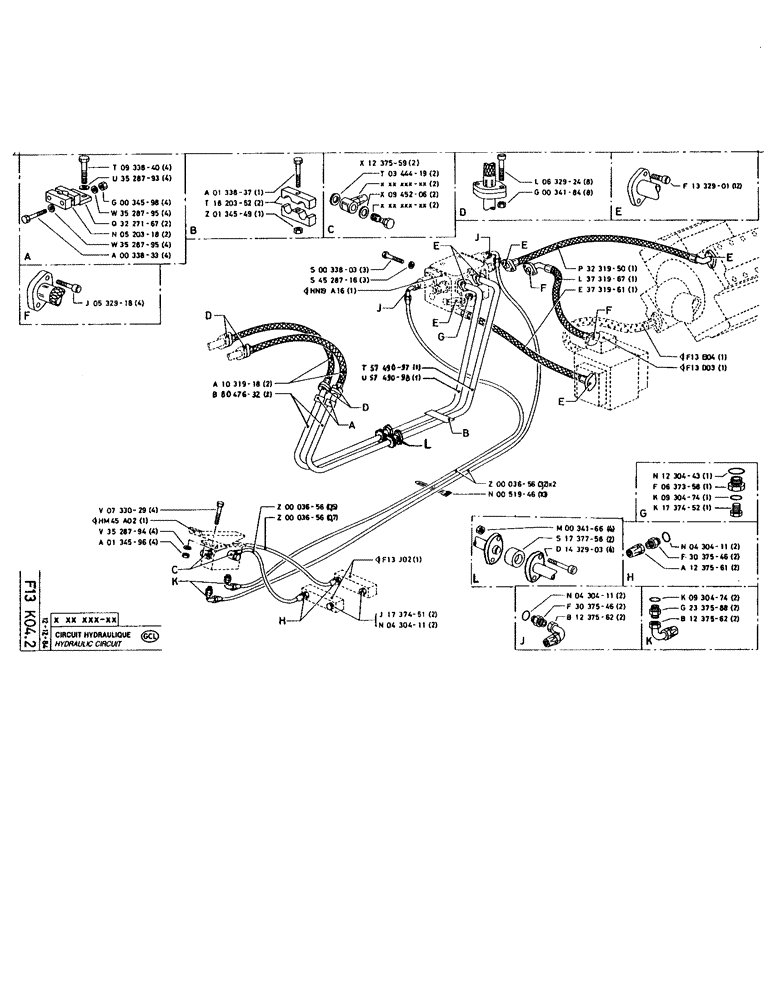

Запчасти Case 220 (131) - HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

P933840

SCREW

/BOLT, M12 x 35 x 35

4шт.

P933840-Screw/Bolt. See SAT 92

1шт.

P3528793

WASHER

12.5 x 8 x 30

4шт.

P3528793 Washer. See EEX3001E; NITS 994, 3077, 3228, 3263, 3293

1шт.

P34598

SAFETY NUT

4шт.

P34598-Safety/Stop Nut. See EEX8010E; NITS 3077, 3238, 3262, 3263, 3267, 3269, 3275, 3293, 3308

1шт.

P3528795

WASHER

10.25 x 7 x 25

4шт.

P3528795 Washer. See EEX8006E, EEX8006ES1; NITS 994, 3077, 3262, 3263, 3267, 3268, 3293

1шт.

P3227167

SHIN

BRACKET, 20 x 27

2шт.

P520318

SHIN

BRACKET, 20 x 27

2шт.

P3528795

WASHER

10.25 x 7 x 25

4шт.

P33833

SCREW

/BOLT, M10 x 75

4шт.

P133837

SCREW

/BOLT, M14 x 80

1шт.

P1820352

SHIN

BRACKET, 19 x 27

2шт.

P134549

SAFETY NUT

1шт.

P134549-Safety/Stop Nut. See SAT94

1шт.

P1237559

END FITTING

2шт.

P1237559-Elbow. See NIT 1005

1шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

2шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

2шт.

L632924

SCREW

/BOLT, M10 x 55

8шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

See EEX8011E; NITS 3077, 3262, 3263, 3293, 3303; SAT 80

1шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

12шт.

P1332901 Screw/Bolt. See EEX8006E, EEX8006ES1; NIT 996

1шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

4шт.

See NEXSB04090; NIT 996

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

1шт.

See NEXSB01890; NIT 994; SAT 81

1шт.

P637358

RESTRICTOR

21G x 13G

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

1шт.

P1737452

PLUG

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P3037546

UNION

2шт.

P1237561

END FITTING

2шт.

See NIT 1005

1шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P1737758

JUNCTION

2шт.

P1432903

SCREW

/BOLT, M10 x 85

4шт.

See NITS 996, 1127

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

2шт.

See SAT 81

1шт.

P2337588

UNION

2шт.

P1237562

END FITTING

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P3037546

UNION

2шт.

P1237562

END FITTING

2шт.

See NIT 1005

1шт.

P33803

SCREW

/BOLT, M16 x 55

3шт.

P33803 Screw/Bolt. See NIT 3230

1шт.

P4528716

WASHER

16.5 x 32 x 30

3шт.

P4528716 Washer. See NIT 3226.

1шт.

P3231950

HOSE

1шт.

P3731967

HOSE

1шт.

P3731961

HOSE

1шт.

P1031918

HOSE

2шт.

P5749097

PIPE

19 x 27

1шт.

P5749098

PIPE

19 x 27

1шт.

P3656

PIPE

1шт.

P51946

CLAMP

COLLAR

10шт.

See NITS 994, 3057, 3125, 3132, 3252, 3254, 3257, 3263, 3271, 3275, 3292

1шт.

P3656

PIPE

1шт.

See NIT 1005

1шт.

P3656

PIPE

1шт.

P733029

SCREW

/BOLT, M8 x 30 x 30

4шт.

P3528794

WASHER

8.25 x 6 x 20

4шт.

P3528794 Washer. See EEX3001E; NITS 994, 3053, 3216, 3262, 3292, 3299; SAT 94

1шт.

P134596

SAFETY NUT

4шт.

See EEX 3001E, EEX9001E; NITS 994, 3216, 3252, 3262, 3275, 3299; SAT 94

1шт.

P1737451

PLUG

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

See NEXMP00587; NIT 994

1шт.
