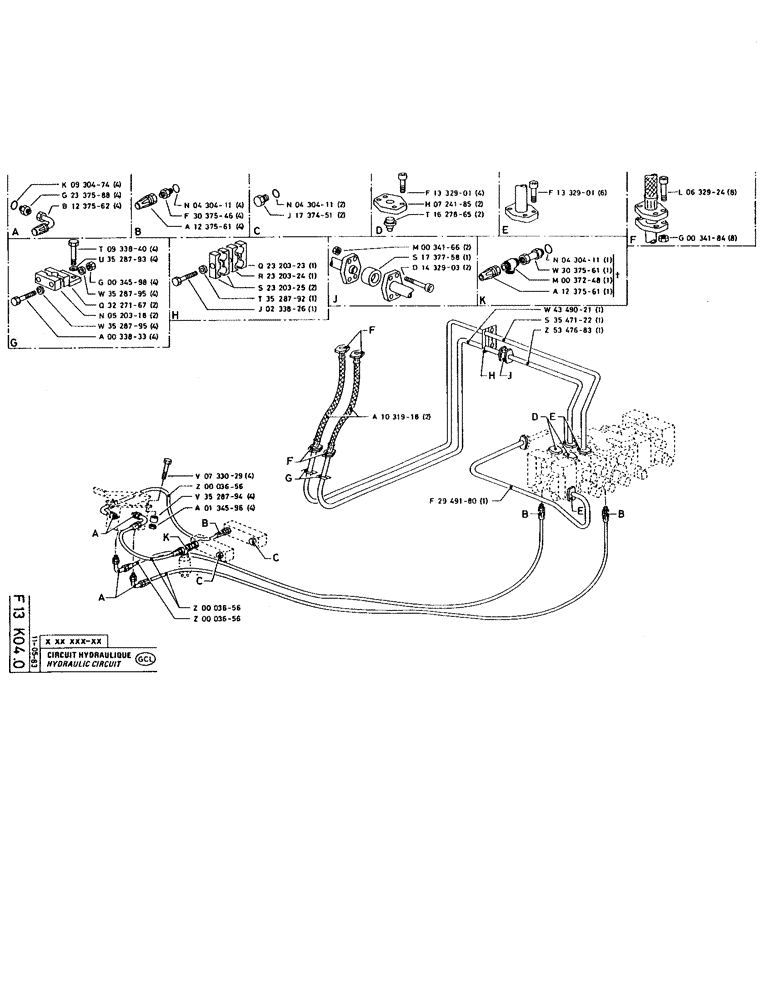

Запчасти Case 220 (129) - HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

4шт.

See SAT 81

1шт.

P2337588

UNION

4шт.

P1237562

END FITTING

4шт.

See NIT 1005

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

4шт.

See NEXMP00587; NIT 994

1шт.

P3037546

UNION

4шт.

P1237561

END FITTING

4шт.

See NIT 1005

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P1737451

PLUG

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P1332901 Screw/Bolt. See EEX8006E, EEX8006ES1; NIT 996

1шт.

P724185

SHIN

BRACKET

2шт.

P1627865

BLANK-OFF PLUG

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

L632924

SCREW

/BOLT, M10 x 55

8шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

See EEX8011E; NITS 3077, 3262, 3263, 3293, 3303; SAT 80

1шт.

P933840

SCREW

/BOLT, M12 x 35 x 35

4шт.

P933840-Screw/Bolt. See SAT 92

1шт.

P3528793

WASHER

12.5 x 8 x 30

4шт.

P3528793 Washer. See EEX3001E; NITS 994, 3077, 3228, 3263, 3293

1шт.

P34598

SAFETY NUT

4шт.

P34598-Safety/Stop Nut. See EEX8010E; NITS 3077, 3238, 3262, 3263, 3267, 3269, 3275, 3293, 3308

1шт.

P3528795

WASHER

10.25 x 7 x 25

4шт.

P3528795 Washer. See EEX8006E, EEX8006ES1; NITS 994, 3077, 3262, 3263, 3267, 3268, 3293

1шт.

P3227167

SHIN

BRACKET, 20 x 27

2шт.

P520318

SHIN

BRACKET, 20 x 27

2шт.

P3528795

WASHER

10.25 x 7 x 25

4шт.

P33833

SCREW

/BOLT, M10 x 75

4шт.

P2320323

SUPPORT

1шт.

P2320324

BRACKET, 33 x 42

1шт.

P2320325

SHIN

BRACKET, 20 x 27

2шт.

P3528792

WASHER

14.5 x 10 x 35

1шт.

P233826

SCREW

/BOLT, M14 x 140

1шт.

P233826 Screw/Bolt. See TS263-93R

1шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P1737758

JUNCTION

1шт.

P1432903

SCREW

/BOLT, M10 x 85

2шт.

See NITS 996, 1127

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, no longer exists on new model

1шт.

P3037561

FITTING

CONNECTION, no longer exists on new model

1шт.

P3037561 Adaptor. See NEXMP00387

1шт.

P37248

TEE

T PIECE, DN10 x 17 x 10, no longer exists on new model

1шт.

P1237561

END FITTING

no longer exists on new model

1шт.

P4349021

PIPE, 19 x 27

1шт.

P3547122

PIPE, 19 x 27

1шт.

P5347683

PIPE, 19 x 27

1шт.

P1031918

HOSE

2шт.

P733029

SCREW

/BOLT, M8 x 30 x 30

4шт.

See EEX9001E; NIT 3257

1шт.

P3656

PIPE

1шт.

See NIT 1005

1шт.

P3528794

WASHER

8.25 x 6 x 20

4шт.

P3528794 Washer. See EEX3001E; NITS 994, 3053, 3216, 3262, 3292, 3299; SAT 94

1шт.

P134596

SAFETY NUT

4шт.

See EEX 3001E, EEX9001E; NITS 994, 3216, 3252, 3262, 3275, 3299; SAT 94

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

P2949180

PIPE, 19 x 27

1шт.
