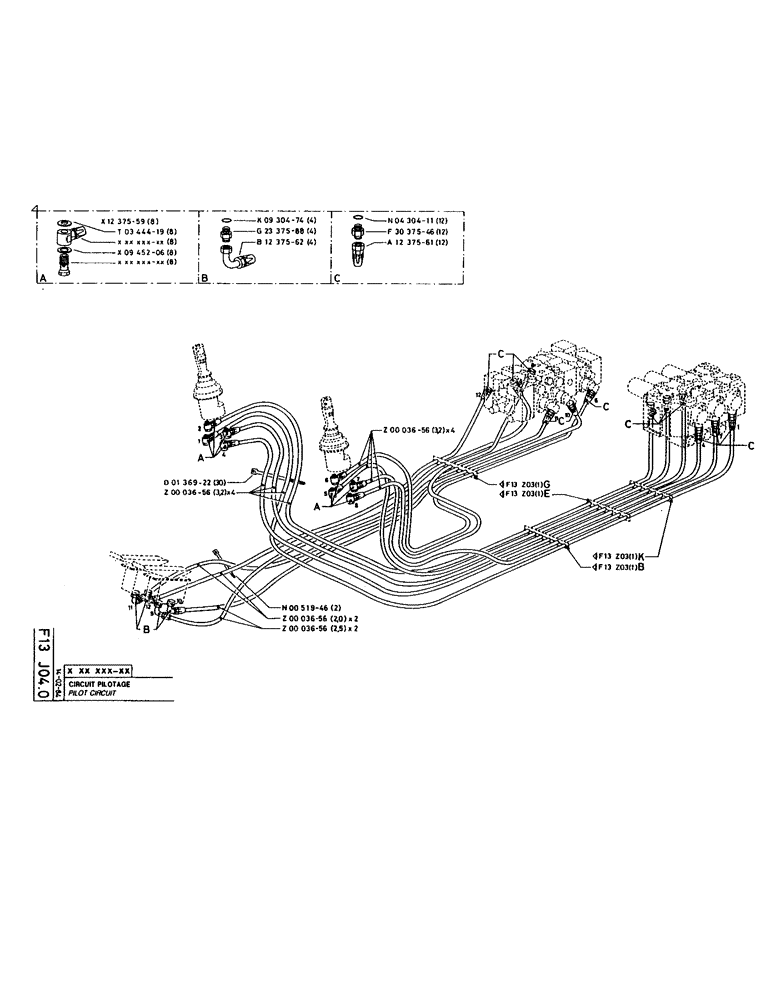

Запчасти Case 220 (124) - PILOT CIRCUIT (07) - HYDRAULIC SYSTEM

P4037540

FITTING

END FITTING ( replaced P1237559 )

8шт.

P344419

WASHER, SEALING

SEAL WASHER, 13.2 x 17.9 x 1.5

8шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

8шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

4шт.

See SAT 81

1шт.

P2337588

UNION

4шт.

P1237562

END FITTING

4шт.

See NIT 1005

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

12шт.

See NEXMP00587; NIT 994

1шт.

P3037546

UNION

12шт.

P1237561

END FITTING

12шт.

See NIT 1005

1шт.

P136922

CLAMP

COLLAR

30шт.

See NITS 1127, 3077, 3263

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.

See NIT 1005

1шт.

P51946

CLAMP

COLLAR

2шт.

See NITS 994, 3057, 3125, 3132, 3252, 3254, 3257, 3263, 3271, 3275, 3292

1шт.

P3656

PIPE

1шт.

P3656

PIPE

1шт.
