Заказать запчасти

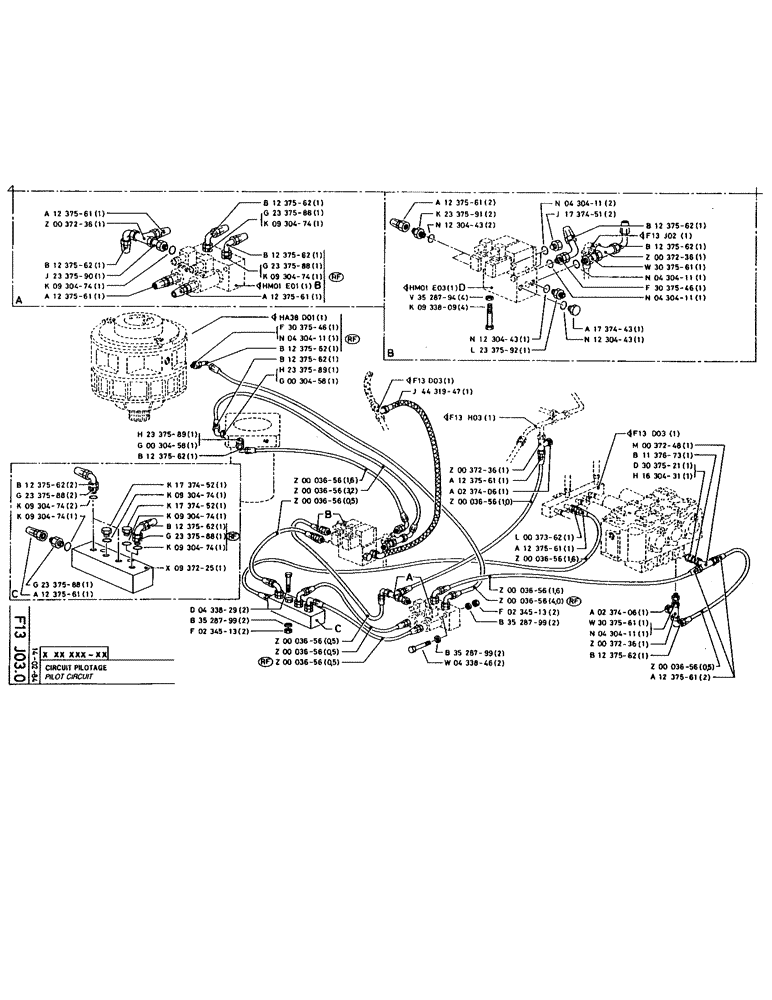

Запчасти Case 220 (122) - PILOT CIRCUIT (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
P1237561
END FITTING
1шт.
P37236
TEE
T PIECE
1шт.
P1237562
END FITTING
1шт.
P2337590
FITTING
CONNECTION
1шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80
1шт.
P1237561
END FITTING
1шт.
P1237562
END FITTING
1шт.
P2337588
UNION
1шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80
1шт.
P1237562
END FITTING
braking-type swing motors
1шт.
P2337588
UNION
braking-type swing motors
1шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80, braking-type swing motors
1шт.
P1237561
END FITTING
braking-type swing motors
1шт.
P1237561
END FITTING
2шт.
P2337591
UNION
2шт.
P1230443
O-RING
SEAL, 2.62 x 23.47-80
2шт.
P3528794
WASHER
8.25 x 6 x 20
4шт.
P933809
BOLT
SCREW/BOLT, M8 x 28
4шт.
P1230443
O-RING
SEAL, 2.62 x 23.47-80
1шт.
P2337592
UNION
1шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
2шт.
P1737451
PLUG
2шт.
P1237562
END FITTING
1шт.
P1237562
END FITTING
1шт.
P37236
TEE
T PIECE
1шт.
P3037561
FITTING
CONNECTION
1шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
1шт.
P3037546
UNION
1шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
1шт.
P1737443
PLUG
1шт.
P1230443
O-RING
SEAL, 2.62 x 23.47-80
1шт.
P1237562
END FITTING
2шт.
P2337588
UNION
2шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80
2шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80
1шт.
P2337588
UNION
1шт.
P1237561
END FITTING
1шт.
P1737452
PLUG
1шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80
1шт.
P1737452
PLUG
1шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80
1шт.
P1237562
END FITTING
braking-type swing motors
1шт.
P2337588
UNION
braking-type swing motors
1шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80, braking-type swing motors
1шт.
P937225
BLOCK ASSY.
BLOCK, 5 x 13G
1шт.
P3037546
UNION
braking-type swing motors
1шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80, braking-type swing motors
1шт.
P1237562
END FITTING
braking-type swing motors
1шт.
P1237562
END FITTING
1шт.
P2337589
UNION
1шт.
P30458
O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro
SEAL, 2.62 x 29.82-80
1шт.
P2337589
UNION
1шт.
P30458
O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro
SEAL, 2.62 x 29.82-80
1шт.
P1237562
END FITTING
1шт.
P3656
PIPE
1шт.
P3656
PIPE
1шт.
P3656
PIPE
1шт.
P433829
SCREW
/BOLT, M6 x 60
2шт.
P3528799
WASHER
6.25 x 4 x 15
2шт.
P234513
SAFETY NUT
2шт.
P3656
PIPE
1шт.
P3656
PIPE
1шт.
P3656
PIPE
braking-type swing motors
1шт.
P4431947
HOSE
1шт.
P37236
TEE
T PIECE
1шт.
P1237561
END FITTING
1шт.
P237406
BLANK-OFF PLUG
1шт.
P3656
PIPE
1шт.
P37248
TEE
T PIECE, DN10 x 17 x 10
1шт.
P1137673
TUBE,16.75 mm OD x 45 mm L
PIPE, 11 x 17
1шт.
P3037521
UNION
1шт.
P1630431
O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro
SEAL, 2.62 x 36.17-80
1шт.
P37362
UNION
DN17 x 10
1шт.
P1237561
END FITTING
1шт.
P3656
PIPE
1шт.
P3656
PIPE
1шт.
P3656
PIPE
braking-type swing motors
1шт.
P234513
SAFETY NUT
2шт.
P3528799
WASHER
6.25 x 4 x 15
2шт.
P3528799
WASHER
6.25 x 4 x 15
2шт.
P433846
SCREW
/BOLT, M6 x 50
2шт.
P37248
TEE
T PIECE, DN10 x 17 x 10
1шт.
P1137673
TUBE,16.75 mm OD x 45 mm L
PIPE, 11 x 17
1шт.
P3037521
UNION
1шт.
P1630431
O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro
SEAL, 2.62 x 36.17-80
1шт.
P237406
BLANK-OFF PLUG
1шт.
P3037561
FITTING
CONNECTION
1шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
1шт.
P37236
TEE
T PIECE
1шт.
P1237562
END FITTING
1шт.
P3656
PIPE
1шт.
P1237561
END FITTING
2шт.
Выбрано товаров: 92
