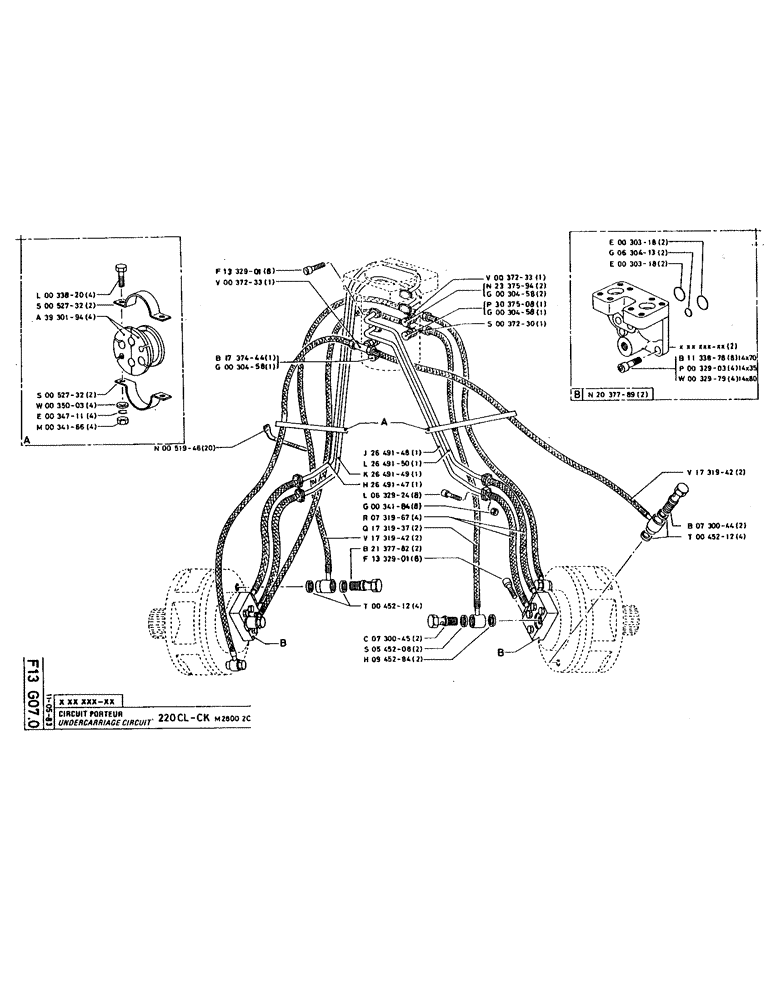

Запчасти Case 220 (111) - UNDERCARRIAGE CIRCUIT (07) - HYDRAULIC SYSTEM

P33820

SCREW

/BOLT, M10 x 45

4шт.

P52732

HALF-COLLAR

HALF COLLAR

2шт.

P3930194

SHIN

BRACKET

4шт.

P52732

HALF-COLLAR

HALF COLLAR

2шт.

P35003

WASHER

4шт.

P34711

WASHER

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P30318

O-RING

SEAL, 3.6 x 23

2шт.

P630413

O-RING

SEAL, 2.62 x 9.19-80

2шт.

P30318

O-RING

SEAL, 3.6 x 23

2шт.

P1133878

SCREW

/BOLT, M14 x 70

8шт.

P32903

SCREW

/BOLT, M14 x 35

4шт.

P32979

SCREW

/BOLT, M14 x 80

4шт.

P2037789

SHIN

BRACKET, 19 x 27

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

P37233

TEE

T PIECE

1шт.

P1737444

PLUG

1шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

1шт.

P51946

CLAMP

COLLAR

20шт.

P37233

TEE

T PIECE

1шт.

P2337594

FITTING

CONNECTION

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P3037508

FITTING

CONNECTION

1шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

1шт.

P37230

TEE

T PIECE

1шт.

P2649148

PIPE, 19 x 27

1шт.

P2649150

PIPE, 19 x 27

1шт.

P2649149

PIPE

19 x 27

1шт.

P2649147

PIPE, 19 x 27

1шт.

L632924

SCREW

/BOLT, M10 x 55

8шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

P731967

HOSE

4шт.

P1731937

HOSE

2шт.

P1731942

HOSE

2шт.

P2137782

BANJO BOLT

FEMALE SCREW

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.

P730045

BANJO BOLT

FEMALE SCREW

2шт.

P545208

WASHER, SEALING

SEAL WASHER, 18 x 24 x 1.5

2шт.

P945284

WASHER, SEALING

SEAL WASHER, 17.2 x 22.9 x 1

2шт.

P1731942

HOSE

2шт.

P730044

BANJO BOLT

FEMALE SCREW

2шт.

P45212

COPPER SEAL

32 x 27.2 x 1.5

4шт.
