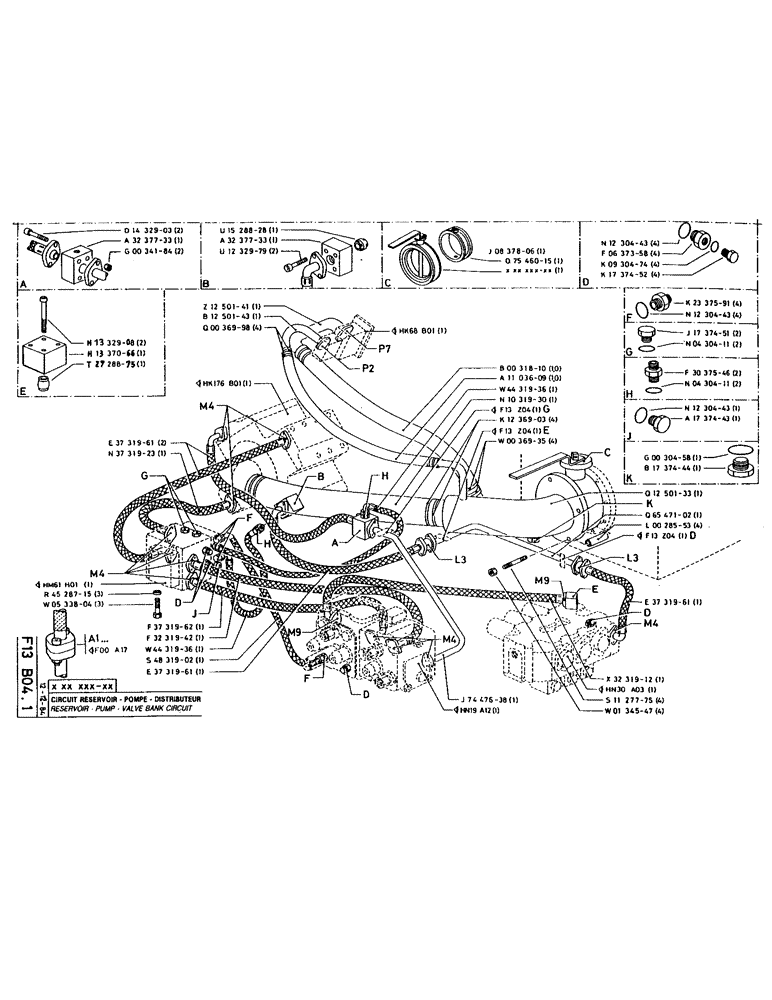

Запчасти Case 220 (103) - RESERVOIR-PUMP-VALVE BANK CIRCUIT (07) - HYDRAULIC SYSTEM

P1432903

SCREW

/BOLT, M10 x 85

2шт.

P3237733

JUNCTION

1шт.

86500689

NUT,M10 x 1.5, Cl 10

2шт.

P1528828

JUNCTION

1шт.

P3237733

JUNCTION

1шт.

P1232979

SCREW

/BOLT, M10 x 80

2шт.

P837806

VANEUM GAUGE

VANE

1шт.

P7546015

BUSHING

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

4шт.

P637358

RESTRICTOR

21G x 13G

4шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

4шт.

P1737452

PLUG

4шт.

P2337591

UNION

4шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

4шт.

P1737451

PLUG

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P3037546

UNION

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

1шт.

P1737443

PLUG

1шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

1шт.

P1737444

PLUG

1шт.

P1250141

PIPE

33 x 42

1шт.

P1250143

PIPE

20 x 27

1шт.

P36998

COLLAR CLAMP

CLAMP COLLAR

4шт.

P3731961

HOSE

2шт.

P3731923

HOSE

1шт.

P4528715

WASHER

14.5 x 28 x 28

3шт.

P533804

SCREW

/BOLT, M14 x 55

3шт.

P3731962

HOSE

1шт.

P3231942

HOSE

1шт.

P4431936

HOSE

1шт.

P4831902

HOSE

1шт.

P3731961

HOSE

1шт.

P31810

HOSE, BULK

PIPE

1шт.

P1103609

LARGE HOSE

PIPE, 27 x 37

1шт.

P4431936

HOSE

1шт.

P1031930

LARGE HOSE

HOSE

1шт.

P1236903

CLAMP

COLLAR

4шт.

P36935

COLLAR CLAMP

CLAMP COLLAR

4шт.

P1250133

MANIFOLD

COLLECTOR

1шт.

P6547102

PIPE

19 x 27

1шт.

P28553

WASHER

17 x 10 x 30

4шт.

P3731961

HOSE

1шт.

P7447638

PIPE

19 x 27

1шт.

P3231912

HOSE

1шт.

P1127775

STUD, 16 x 2

4шт.

P134547

SAFETY NUT

4шт.
