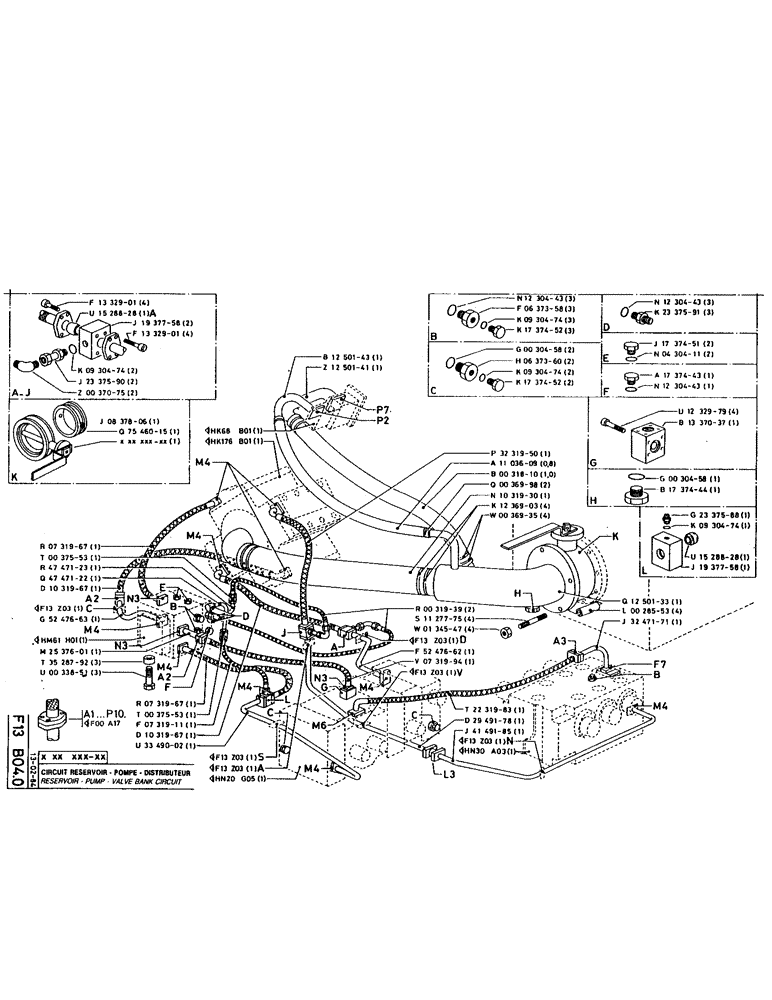

Запчасти Case 220 (102) - RESERVOIR-PUMP-VALVE BANK CIRCUIT (07) - HYDRAULIC SYSTEM

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P1528828

JUNCTION

1шт.

P1937758

JUNCTION

19 x 27

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

2шт.

P2337590

FITTING

CONNECTION

2шт.

P37075

ELBOW

-CONNECTION

2шт.

P837806

VANEUM GAUGE

VANE

1шт.

P7546015

BUSHING

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

3шт.

P637358

RESTRICTOR

21G x 13G

3шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

3шт.

P1737452

PLUG

3шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P637360

RESTRICTOR

27G x 13G

2шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

2шт.

P1737452

PLUG

2шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

3шт.

P2337591

UNION

3шт.

P1737451

PLUG

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P1737443

PLUG

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

1шт.

P1232979

SCREW

/BOLT, M10 x 80

4шт.

P1337037

SHIN

BRACKET

1шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

1шт.

P1737444

PLUG

1шт.

P2337588

UNION

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

1шт.

P1528828

JUNCTION

1шт.

P1937758

JUNCTION

19 x 27

1шт.

P731967

HOSE

1шт.

P37553

UNION

1шт.

P4747123

PIPE

6 x 10

1шт.

P4747122

PIPE

6 x 10

1шт.

P1031967

HOSE

1шт.

P5247663

PIPE, 19 x 27

1шт.

P2537601

PIPE

19 x 27

1шт.

P3528792

WASHER

14.5 x 10 x 35

3шт.

P33851

SCREW

/BOLT, M14 x 35

3шт.

P731967

HOSE

1шт.

P37553

UNION

1шт.

P731911

HOSE

1шт.

P1031967

HOSE

1шт.

P3349002

PIPE

19 x 27

1шт.

P1250143

PIPE

20 x 27

1шт.

P1250141

PIPE

33 x 42

1шт.

P3231950

HOSE

1шт.

P1103609

LARGE HOSE

PIPE, 27 x 37

1шт.

P31810

HOSE, BULK

PIPE

1шт.

P36998

COLLAR CLAMP

CLAMP COLLAR

2шт.

P1031930

LARGE HOSE

HOSE

1шт.

P1236903

CLAMP

COLLAR

4шт.

P36935

COLLAR CLAMP

CLAMP COLLAR

4шт.

P31939

HOSE

2шт.

P1127775

STUD, 16 x 2

4шт.

P134547

SAFETY NUT

4шт.

P5247662

PIPE

19 x 27

1шт.

P731994

HOSE

1шт.

P2231983

HOSE

1шт.

P2949178

PIPE

19 x 27

1шт.

P4149185

PIPE

19 x 27

1шт.

P1250133

MANIFOLD

COLLECTOR

1шт.

P28553

WASHER

17 x 10 x 30

4шт.

P3247171

PIPE

24 x 34

1шт.
