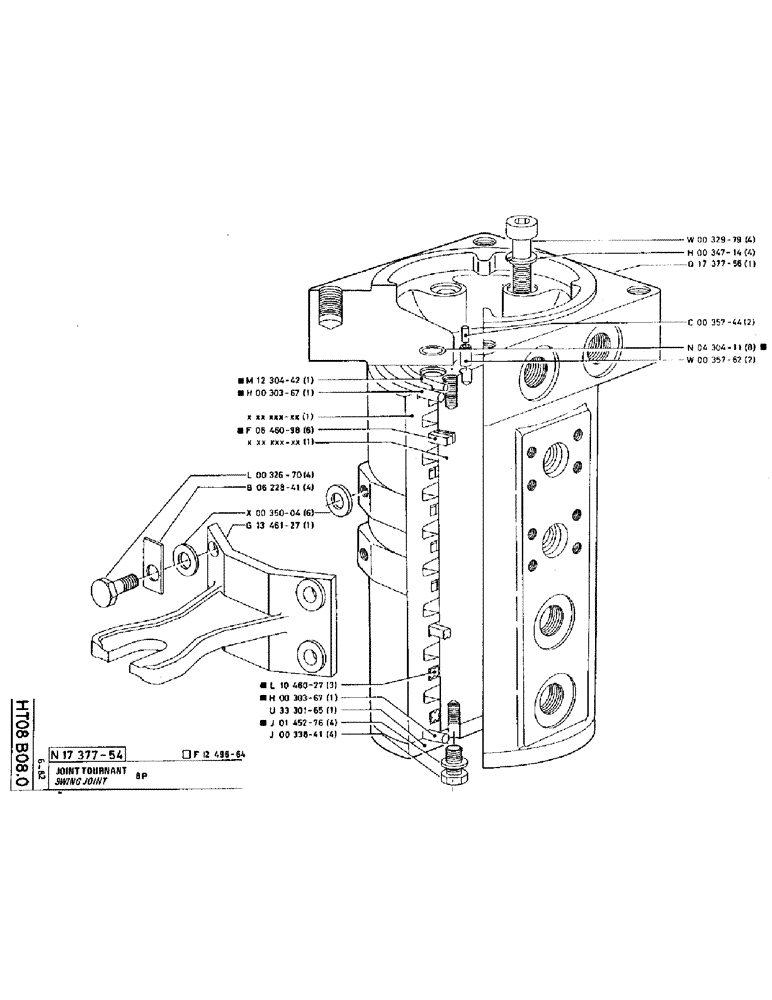

Запчасти Case 220 (B-080) - SWING JOINT (05) - UPPERSTRUCTURE CHASSIS

M1230442

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

SEAL, 2.62 x 113.97-60

1шт.

H0030367

SEAL, 6.99 x 164.47-80

1шт.

F0646098

SEAL

6шт.

L0032670

SCREW/BOLT, M12 x 30

4шт.

B0622841

LOCKING

4шт.

X0035004

WASHER

6шт.

G1346127

SUPPORT

BRACKET

1шт.

L1046027

SEAL,126.37mm ID x 140.35mm OD x 6.99mm Thk

SEAL, 6.99 x 126.37

3шт.

H0030367

SEAL, 6.99 x 164.47-80

1шт.

U3330165

WASHER

1шт.

J0145276

SEAL, 13.3 x 21 x 1.2

4шт.

J0033841

SCREW/BOLT, M12 x 35

4шт.

F1249664

SEAL PACKAGE

SET OF SEALS

1шт.

W0032979

SCREW/BOLT, M14 x 80

4шт.

H0034714

WASHER

4шт.

Q1737756

HEAD

1шт.

C0035744

SPLIT PIN/SAFET, 6 x 20

2шт.

N0430411

SEAL, 2.62 x 18.72-80

8шт.

W0035762

SPLIT PIN/SAFET, 10 x 18

2шт.
