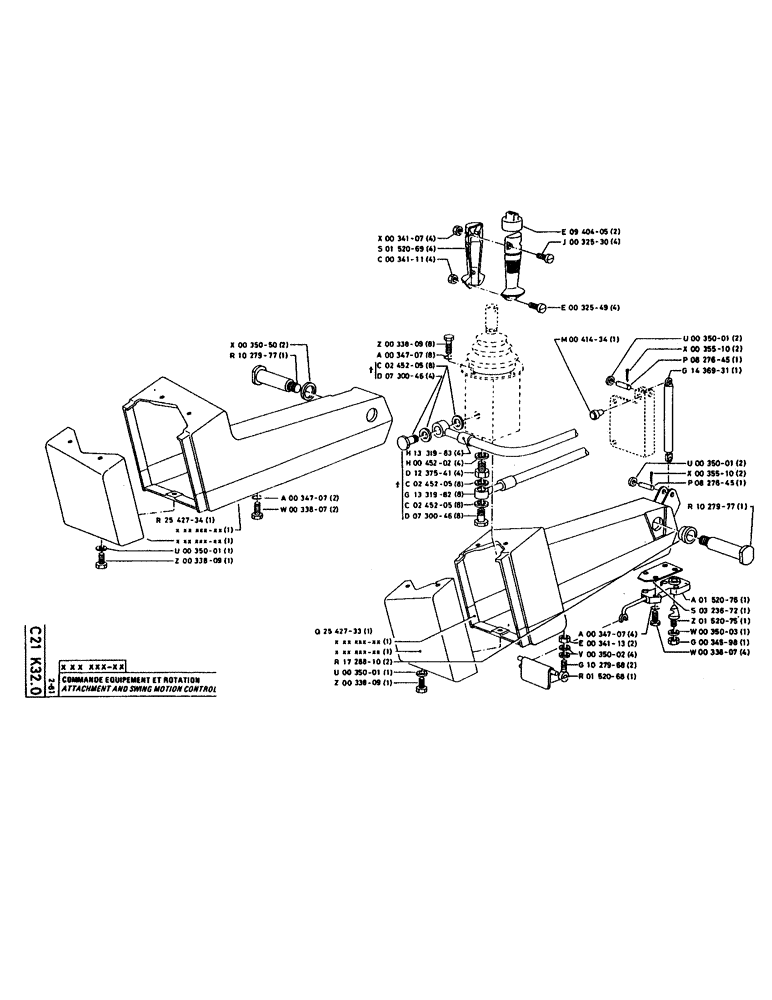

Запчасти Case 160CL (083) - ATTACHMENT AND SWING MOTION CONTROL (05) - UPPERSTRUCTURE CHASSIS

P2542734

CASE

BOX

1шт.

P35001

WASHER

1шт.

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

P35050

WASHER

2шт.

P1027977

PIN

1шт.

P34707

WASHER

2шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

P34107

NUT

4шт.

P152069

HANDLE

4шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

P34707

WASHER

8шт.

P245205

WASHER, SEALING

SEAL WASHER, no longer sold

8шт.

P730046

BANJO BOLT

FEMALE SCREW, no longer sold

4шт.

P1331983

HOSE

no longer sold

4шт.

P45202

WASHER, SEALING

SEAL WASHER, 17.2 x 20.9 x 1.5, no longer sold

4шт.

P1237541

UNION

no longer sold

4шт.

P245205

WASHER, SEALING

SEAL WASHER, no longer sold

8шт.

P1331982

HOSE

no longer sold

8шт.

P245205

WASHER, SEALING

SEAL WASHER, no longer sold

8шт.

P730046

BANJO BOLT

FEMALE SCREW, no longer sold

8шт.

P2542733

CASE

BOX

1шт.

P1728810

SELF LUB RING

20/26 x 16

2шт.

P35001

WASHER

1шт.

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

P940405

LIGHT FAIRING

CAP

2шт.

P32530

SCREW

/BOLT, M4 x 10

4шт.

P32549

SCREW

/BOLT, M6 x 16

4шт.

P41434

STOP

1шт.

P35001

WASHER

2шт.

P35510

SPLIT PIN

2 x 20

2шт.

P827645

PIN

1шт.

P1436931

CYLINDER ASSY.

RUNNER

1шт.

P35001

WASHER

2шт.

P35510

SPLIT PIN

2 x 20

2шт.

P827645

PIN

1шт.

P1027977

PIN

1шт.

P152076

LOCK

1шт.

P323672

HOOD

PLATE

1шт.

P152075

CONE

1шт.

P35003

WASHER

1шт.

P34598

SAFETY NUT

1шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

4шт.

P34707

WASHER

4шт.

P34113

NUT

2шт.

P35002

WASHER

4шт.

P1027968

CLEVIS

FORK

2шт.

P152068

HANDLE

1шт.
