Запчасти Case 160CL (033) - FITTED ENGINE (01) - ENGINE

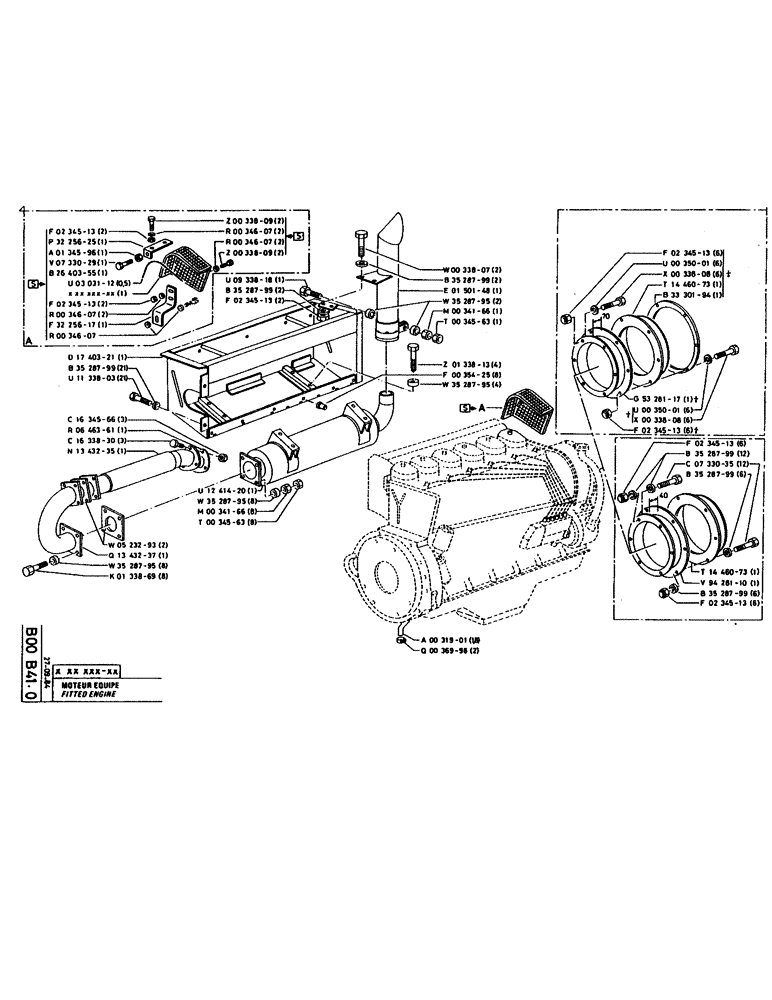

Схема запчастей Case 160CL - (033) - FITTED ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

P234513

SAFETY NUT

(Sweden)

2шт.

P3225625

SUPPORT

(Sweden)

1шт.

P134596

SAFETY NUT

(Sweden)

1шт.

P733029

SCREW

/BOLT, M8 x 30 x 30 (Sweden)

1шт.

P2640355

PROTECTOR

(Sweden)

1шт.

P303112

SEAL

(Sweden)

1шт.

P234513

SAFETY NUT

(Sweden)

2шт.

P34607

WASHER

(Sweden)

2шт.

P3225617

PLATE

(Sweden)

1шт.

P34607

WASHER

(Sweden)

1шт.

P1740321

VENT MANIFOLD

BOX

21шт.

P3528799

WASHER

6.25 x 4 x 15

21шт.

P1133803

SCREW

/BOLT, M6 x 22

21шт.

P1634566

DEUTZ PART

NUT

3шт.

P646361

BUSHING

1шт.

P1633830

BOLT

SCREW/BOLT, M10 x 50

3шт.

P1343235

MANIFOLD

COLLECTOR

1шт.

P523293

SEAL

2шт.

P1343237

PIPE, EXHAUST SYSTEM

MANIFOLD

1шт.

P3528795

WASHER

10.25 x 7 x 25

8шт.

P133869

SCREW

/BOLT, M10 x 55

8шт.

120100

BOLT,M6 x 20mm, Cl 8.8

(Sweden) Hex, M6 x 20, 8.8

2шт.

P34607

WASHER

(Sweden)

2шт.

P34607

WASHER

(Sweden)

2шт.

120100

BOLT,M6 x 20mm, Cl 8.8

(Sweden) Hex, M6 x 20, 8.8

2шт.

P933818

SCREW

/BOLT, M10 x 40 x 40

1шт.

P3528799

WASHER

6.25 x 4 x 15

2шт.

P234513

SAFETY NUT

2шт.

P1241420

MUFFLER

SILENCER

1шт.

P3528795

WASHER

10.25 x 7 x 25

8шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

P34563

NUT

8шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

P3528799

WASHER

6.25 x 4 x 15

2шт.

P150148

PIPE, EXHAUST SYSTEM

MANIFOLD

1шт.

P3528795

WASHER

10.25 x 7 x 25

2шт.

100016

NUT,M10 x 1.5, Cl 8

1шт.

P34563

NUT

1шт.

P133813

SCREW

/BOLT, M10 x 50

4шт.

P35425

RIVET

8шт.

P3528795

WASHER

10.25 x 7 x 25

4шт.

P31901

HOSE, BULK

PIPE

1шт.

P36998

COLLAR CLAMP

CLAMP COLLAR

2шт.

P234513

SAFETY NUT

no longer exists on new model

6шт.

P35001

WASHER

no longer exists on new model

6шт.

P33808

SCREW

/BOLT, M6 x 30 x 30, no longer exists on new model

6шт.

P1446073

SEAL, RUBBER

RUBBER SEAL, no longer exists on new model

1шт.

P3330194

SLEWING RING, no longer exists on new model

1шт.

P5328117

ENGINE VENT SLEEVE

SLEEVE, no longer exists on new model

1шт.

P35001

WASHER

no longer exists on new model

6шт.

P33808

SCREW

/BOLT, M6 x 30 x 30, no longer exists on new model

6шт.

P234513

SAFETY NUT

no longer exists on new model

6шт.

P234513

SAFETY NUT

6шт.

P3528799

WASHER

6.25 x 4 x 15

12шт.

P733035

SCREW

/BOLT, M6 x 35 x 35

12шт.

P3528799

WASHER

6.25 x 4 x 15

6шт.

P1446073

SEAL, RUBBER

RUBBER SEAL

1шт.

P9428110

ENGINE VENT SLEEVE

SLEEVE

1шт.

P3528799

WASHER

6.25 x 4 x 15

6шт.

P234513

SAFETY NUT

6шт.

Выбрано товаров: 60
