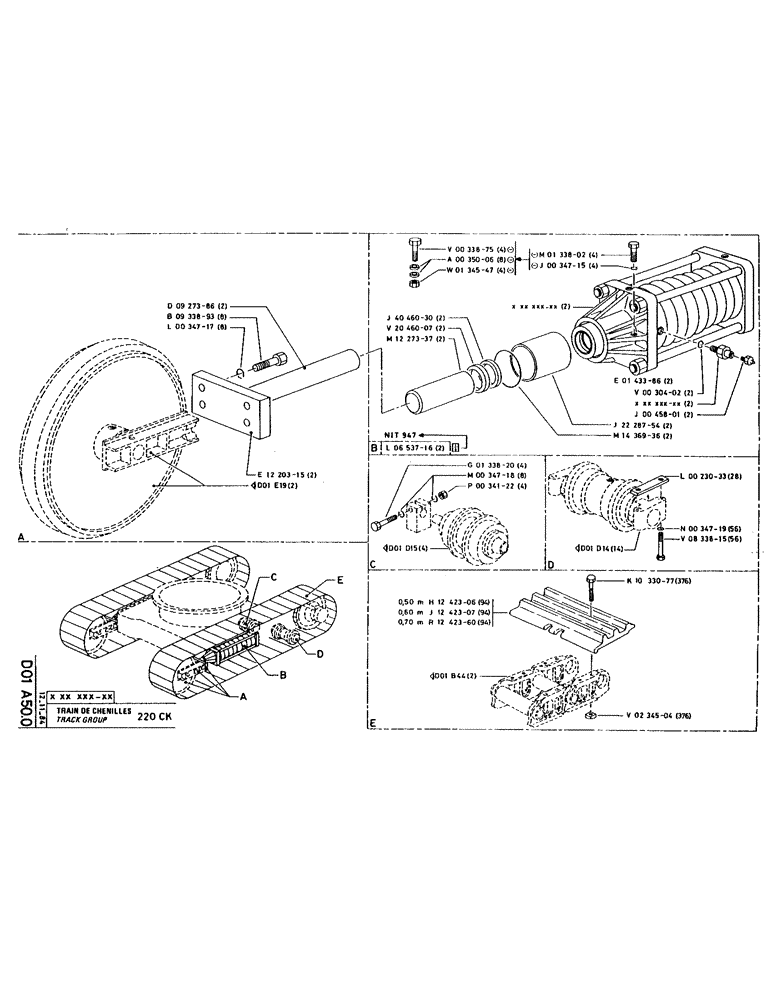

Запчасти Case 160CKS (084) - TRACK GROUP (04) - UNDERCARRIAGE

P927386

PUSHER

2шт.

P933893

SCREW

/BOLT, M20 x 1.5 x 120

8шт.

P34717

WASHER, LOCK

WASHER

8шт.

P1220315

TRAVERSE

2шт.

P33875

SCREW

/BOLT, M16 x 70, part not sold under assembly reference number

4шт.

P35006

WASHER

part not sold under assembly reference number

8шт.

P134547

SAFETY NUT

part not sold under assembly reference number

4шт.

P133802

SCREW

/BOLT, M16 x 40, part not sold under assembly reference number

4шт.

P34715

WASHER, LOCK

WASHER, part not sold under assembly reference number

4шт.

P4046030

SEAL

2шт.

P2046007

WIPER SEAL

SEAL, 90 x 100

2шт.

P1227337

PISTON

2шт.

P1642321

TRACK SHOE

VALVE ( replaced P143386 )

2шт.

P30402

O-RING

2.5 x 22.5

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P2228754

BUSHING, 125 x 140 x 115

2шт.

P1436936

SPRING WASHER

2шт.

P653716

SHOCK ABSORBER

no longer sold

2шт.

P133820

SCREW/BOLT, M22 x 160

4шт.

P34718

WASHER, LOCK

WASHER

8шт.

P34122

NUT

4шт.

P23033

PLATE, M24 x 3

28шт.

P34719

WASHER, LOCK

WASHER

56шт.

P833815

SCREW

/BOLT, M24 x 120

56шт.

P1242306

TRACK SHOE

PAD

94шт.

P1242307

TRACK SHOE

PAD

94шт.

P1242360

TRACK SHOE

PAD

94шт.

P1033077

SCREW

/BOLT, 3/4-16 UNF x 70

376шт.

P234504

NUT

376шт.
