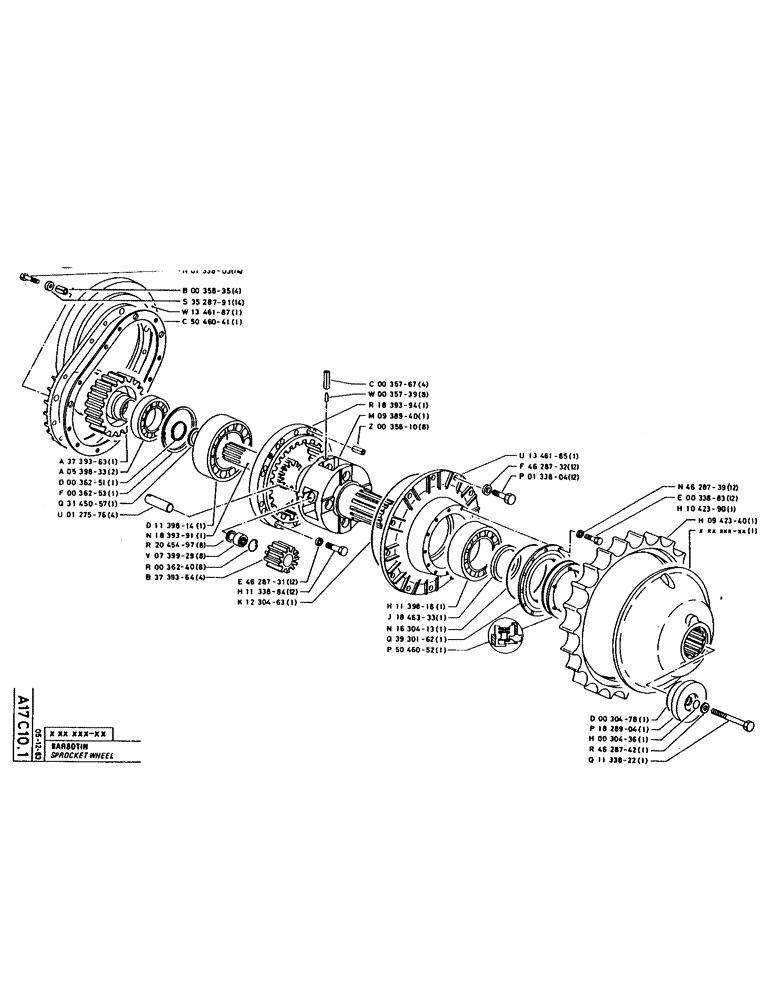

Запчасти Case 160CKS (035) - SPROCKET WHEEL (04) - UNDERCARRIAGE

P35835

SPLIT PIN/SAFET, 30 x 35

4шт.

P3528791

WASHER

19 x 13 x 42

14шт.

P1346187

SUPPORT

1шт.

P5046041

PAPER SEAL

1шт.

P35767

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 10 x 70

4шт.

P35739

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 6 x 25

8шт.

P1839394

SLEWING RING

1шт.

P938940

PINION CARRIER

1шт.

P35810

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 20 x 50

8шт.

P1346185

SUPPORT

1шт.

P4628732

WASHER

21 x 7 x 35

12шт.

P133804

BOLT,Hex, M20 x 85

12шт.

P4628739

WASHER

14.5 x 5 x 28

12шт.

P33883

SCREW

/BOLT, M14 x 50

12шт.

P1042390

GEAR-WHEEL

1шт.

P942340

SLEWING RING

1шт.

P942340- Described as a Slewing Ring; is actually a Sprocket.

1шт.

P3739363

PINION

1шт.

P539833

BEARING

2шт.

P36251

RING, SNAP

LOCKING RING

1шт.

P36253

RING, SNAP

LOCKING RING

1шт.

P3145057

LARGE PLATE

PLATE

1шт.

P127576

PIN

4шт.

P1139814

BEARING

1шт.

P1839391

FINGER ASSY.

SHAFTED PINION

1шт.

P2045497

WASHER

45 x 73 x 5.5

8шт.

P739929

SHIFTER ROLLER

ROLLER, 44 x 62 x 30

8шт.

P36240

RING, SNAP

LOCKING RING

8шт.

P3739364

PINION

4шт.

P4628731

WASHER

16.5 x 6 x 30

12шт.

P1133884

SCREW

/BOLT, 16 x 80

12шт.

P1230463

O-RING

SEAL, 5.33 x 481.41-60

1шт.

P1139818

BEARING

1шт.

P1846333

WASHER

1шт.

P1630413

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

SEAL, 3.53 x 253.59-80

1шт.

P3930162

COVER

PLATE

1шт.

P5046052

SEAL

1шт.

P30478

O-RING

3 x 161

1шт.

P1828904

PLATE, LOCKING

LOCK WASHER

1шт.

P30436

O-RING

SEAL, 3.53 x 45.36-80

1шт.

P4628742

WASHER, 34 x 12 x 75

1шт.

P1133822

SCREW

/BOLT, M33 x 1.5 x 190

1шт.
