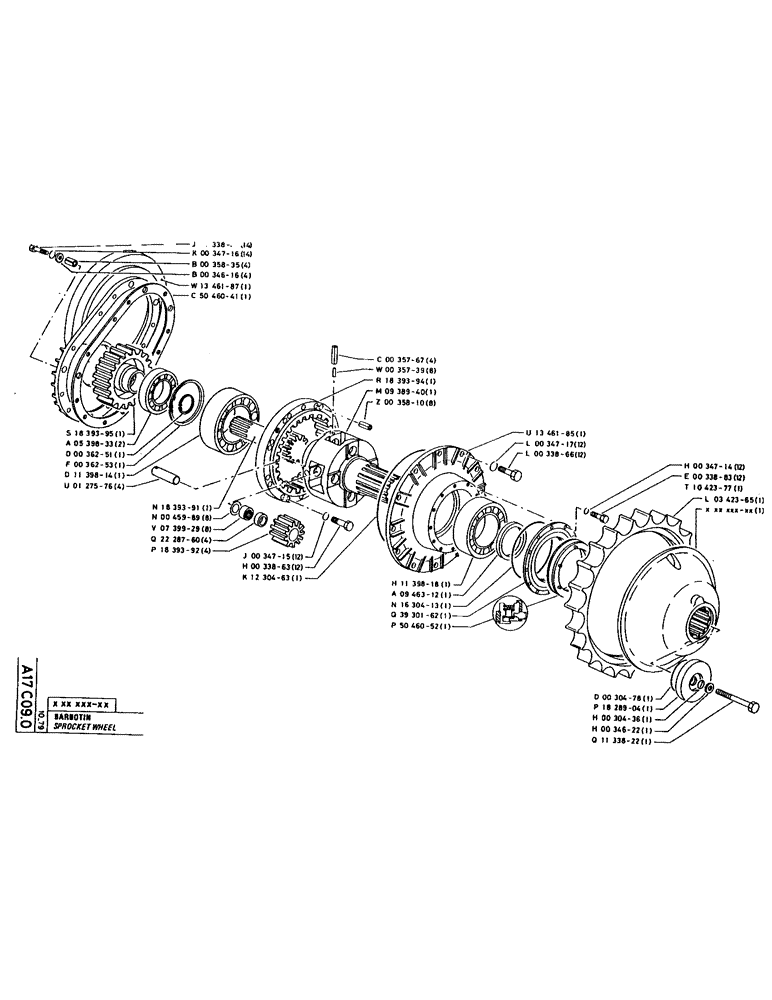

Запчасти Case 160CKS (032) - SPROCKET WHEEL (04) - UNDERCARRIAGE

P34716

WASHER

14шт.

P35835

SPLIT PIN/SAFET, 30 x 35

4шт.

P34616

DEUTZ PART

WASHER

4шт.

P1346187

SUPPORT

1шт.

P5046041

PAPER SEAL

1шт.

P35767

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 10 x 70

4шт.

P35739

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 6 x 25

8шт.

P1839394

SLEWING RING

1шт.

P938940

PINION CARRIER

1шт.

P35810

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 20 x 50

8шт.

P1346185

SUPPORT

1шт.

P34717

WASHER, LOCK

WASHER

12шт.

P33866

SCREW

/BOLT, M20 x 75

12шт.

P34714

WASHER, LOCK

WASHER

12шт.

P33883

SCREW

/BOLT, M14 x 50

12шт.

P1042377

GEAR-WHEEL

1шт.

P342365

DRIVE SPROCKET

GEAR-WHEEL

1шт.

P1839395

PINION

1шт.

P539833

BEARING

2шт.

P36251

RING, SNAP

LOCKING RING

1шт.

P36253

RING, SNAP

LOCKING RING

1шт.

P1139814

BEARING

1шт.

P127576

PIN

4шт.

P1839391

FINGER ASSY.

SHAFTED PINION

1шт.

P45989

WASHER

45.1 x 64.4 x 0.8

8шт.

P739929

SHIFTER ROLLER

ROLLER, 44 x 62 x 30

8шт.

P2228760

BUSHING

46 x 62 x 24.4

4шт.

P1839392

PINION

4шт.

P34715

WASHER, LOCK

WASHER

12шт.

P33863

SCREW

/BOLT, M16 x 75

12шт.

P1230463

O-RING

SEAL, 5.33 x 481.41-60

1шт.

P1139818

BEARING

1шт.

P946312

WASHER

1шт.

P1630413

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

SEAL, 3.53 x 253.59-80

1шт.

P3930162

COVER

PLATE

1шт.

P5046052

SEAL

1шт.

P30478

O-RING

3 x 161

1шт.

P1828904

PLATE, LOCKING

LOCK WASHER

1шт.

P30436

O-RING

SEAL, 3.53 x 45.36-80

1шт.

P34622

WASHER

1шт.

P1133822

SCREW

/BOLT, M33 x 1.5 x 190

1шт.
