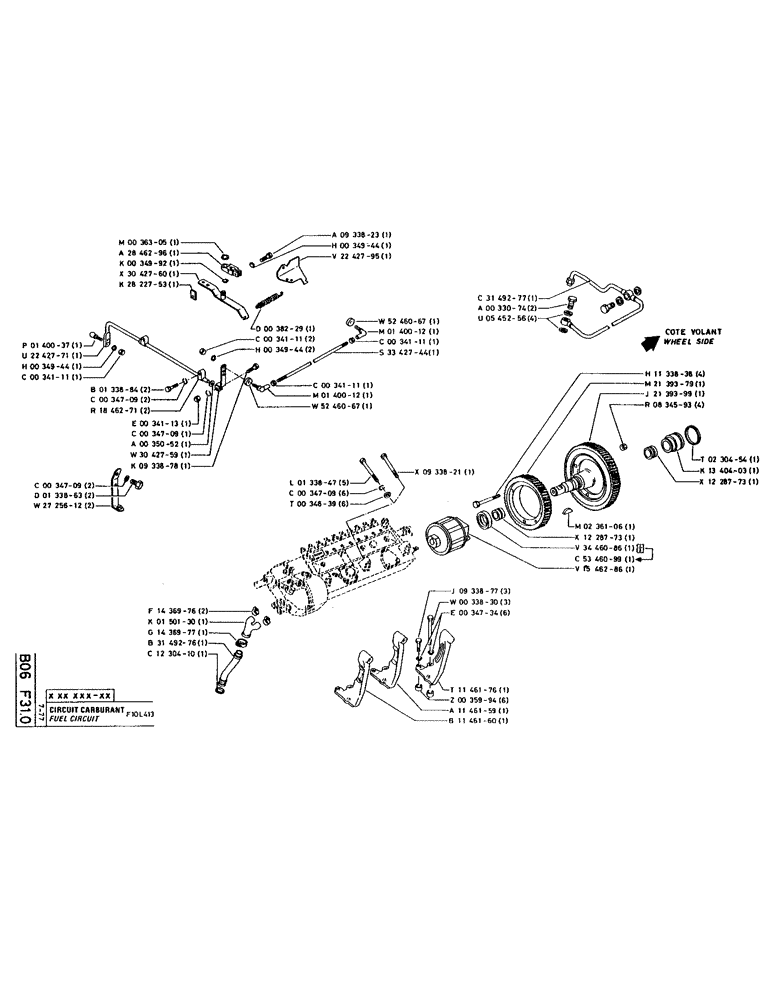

Запчасти Case 160CKS (064) - FUEL CIRCUIT (02) - FUEL SYSTEM

800-1112

SNAP RING,M12, Ext

RING, SNAP, (Replaced P36305 ) M12, Ext

1шт.

P2846296

DEUTZ PART

BEARING

1шт.

P34992

RUBBER WASHER

SPRING WASHER

1шт.

P3042760

DEUTZ PART

LEVER

1шт.

P2822753

SCREW

LOCK

1шт.

P933823

SCREW

/BOLT, M6 x 20 x 20

1шт.

P34944

DEUTZ PART

SPRING WASHER

1шт.

P2242795

DEUTZ PART

LEVER

1шт.

P140037

BALL JOINT

JOINT

1шт.

P2242771

DEUTZ PART

ROD

1шт.

P34944

DEUTZ PART

SPRING WASHER

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

P133884

SCREW

/BOLT, M8 x 35 x 35

2шт.

P34709

WASHER

2шт.

P1846271

DEUTZ PART

BLOCK

2шт.

P34113

NUT

1шт.

P34709

WASHER

1шт.

P35052

DEUTZ PART

WASHER

1шт.

P3042759

DEUTZ PART

CONTROL LEVER

1шт.

P933878

SCREW/BOLT, M8 x 30

1шт.

P34709

WASHER

2шт.

P133863

SCREW

/BOLT, M8 x 18

2шт.

P2725612

DEUTZ PART

SUPPORT

2шт.

P38229

DEUTZ PART

SPRING

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

P34944

DEUTZ PART

SPRING WASHER

2шт.

P5246067

DEUTZ PART

SEAL

1шт.

P140012

DEUTZ PART

JOINT

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

P3342744

DEUTZ PART

CONTROL ROD

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

P140012

DEUTZ PART

JOINT

1шт.

P5246067

DEUTZ PART

SEAL

1шт.

P1436976

DEUTZ PART

COLLAR

2шт.

P150130

DEUTZ PART

END FITTING

1шт.

P1436977

DEUTZ PART

COLLAR

1шт.

P3149276

DEUTZ PART

PIPELINE

1шт.

P1230410

DEUTZ PART

3 x 16

1шт.

P133847

DEUTZ PART

SCREW/BOLT, M8 x 75

5шт.

P36305 Locking Ring subs to 800-1112 External Retaining Ring, P933823 Screw/Bolt subs to 614-6020 Bolt, P933878 Screw/Bolt subs to P733029 Bolt, P143697 Collar subs to P2036988 Clamp, P933877 Screw/Bolt subs to 614-10030 Bolt, P33830 Screw/Bolt subs to 814-10070 Bolt, P1546286 Coupling subs to P1846267 Coupling, P34111-Nut subs to 825-1406 Nut.

1шт.

P34709

WASHER

6шт.

P34839

DEUTZ PART

WASHER

6шт.

P933821

BOLT

SCREW/BOLT, M8 x 75

1шт.

P3149277

PIPELINE

1шт.

P33074

BOLT

FEMALE SCREW

2шт.

P545256

DEUTZ PART

COPPER SEAL

4шт.

P1133838

BOLT

SCREW/BOLT, M8 x 50

4шт.

P2139379

DEUTZ PART

PINION

1шт.

P2139399

PINION

1шт.

P834593

DEUTZ PART

NUT

4шт.

P230454

DEUTZ PART

4 x 60

1шт.

P1340403

DEUTZ PART

COVER

1шт.

P1228773

DEUTZ PART

BUSHING

1шт.

P236106

DEUTZ PART

KEY, 4 x 6.5

1шт.

P1228773

DEUTZ PART

BUSHING

1шт.

P3446086

OIL SEAL

SEAL RING, no longer sold

1шт.

P5346099

DEUTZ PART

SEAL RING

1шт.

P1546286

COUPLING, BREAK AWAY

COUPLING

1шт.

P933877

SCREW

/BOLT, M10 x 30

3шт.

P33830

SCREW

/BOLT, M10 x 70

3шт.

P34734

WASHER

6шт.

P1146176

DEUTZ PART

SUPPORT

1шт.

P35994

DEUTZ PART

BUSHING

6шт.

P1146159

DEUTZ PART

SUPPORT

1шт.

P1146160

DEUTZ PART

SUPPORT

1шт.
