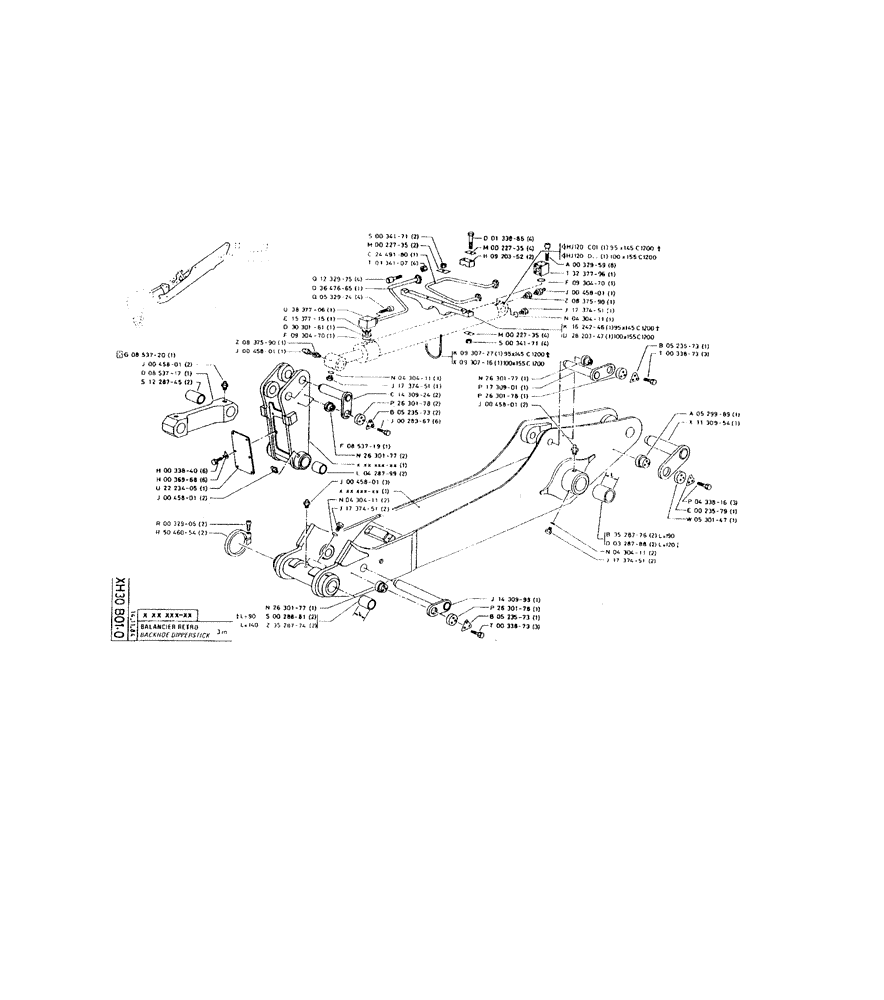

Запчасти Case 160CKS (280) - BACKHOE DIPPERSTICK (14) - DIPPERSTICKS
№
Артикул
Название
Примечание
Количество
P853720
ROD, CONNECTING
CONNECTING ROD, no longer sold
1шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P853717
ROD, CONNECTING
CONNECTING ROD
1шт.
P1228745
BUSHING
65 x 85 x 130
2шт.
P837590
END FITTING
1шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
1шт.
P3837706
SHIN
BRACKET
1шт.
P1537715
VALVE POPPET
VALVE
1шт.
P3030161
STOP
1шт.
P930470
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
SEAL, 3.53 x 44.04-80
1шт.
P1232975
SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9
/BOLT, M14 x 70
4шт.
P3647665
PIPE
30 x 42
1шт.
P532924
SCREW
/BOLT, M14 x 45
4шт.
P34171
NUT
2шт.
P22735
BRAKE
LOCKING
2шт.
P2449180
PIPE
30 x 42
1шт.
P134107
NUT
4шт.
P133886
SCREW/BOLT, M20 x 130
4шт.
P22735
BRAKE
LOCKING
4шт.
P920352
SHIN
BRACKET
2шт.
P32959
SCREW
/BOLT, M16 x 100
8шт.
P3237796
SHIN
BRACKET
1шт.
P930470
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
SEAL, 3.53 x 44.04-80
1шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
1шт.
P837590
END FITTING
1шт.
P1737451
PLUG
1шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
1шт.
P1624246
BRACKET
1шт.
P2820347
SHIN
BRACKET
1шт.
P22735
BRAKE
LOCKING
4шт.
P34171
NUT
4шт.
P930727
BRACKET, 190 x 175
1шт.
P930716
STIRRUP
BRACKET, 206 x 170
1шт.
P33840
SCREW
/BOLT, M12 x 30
6шт.
P36968
BRAKE
LOCKING
6шт.
P2223405
COVER PLATE
1шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
1шт.
P1737451
PLUG
1шт.
P1430924
HEADED PIN
PIN, HEADED
2шт.
P2630178
CAP
COVER
2шт.
P523573
BRAKE
LOCKING
2шт.
P28367
SCREW
/BOLT, M12 x 25
6шт.
P853719
YOKE
1шт.
P2630177
SHAFT LOCK
2шт.
P428799
BUSHING
65 x 85 x 90
2шт.
P2630177
SHAFT LOCK
1шт.
P1730901
HEADED PIN
PIN, HEADED
1шт.
P2630178
CAP
COVER
1шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P523573
BRAKE
LOCKING
1шт.
P33873
SCREW
/BOLT, M12 x 25
3шт.
P32905
SCREW
/BOLT, M8 x 55
2шт.
P5046054
SEAL
2шт.
P2630177
SHAFT LOCK
1шт.
P28881
BUSHING
75 x 100 x 90
2шт.
P3528774
BUSHING, LARGE
BUSHING, 75 x 100 x 140
2шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
3шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
2шт.
P1737451
PLUG
2шт.
P1430999
LARGE PIN
PIN
1шт.
P2630178
CAP
COVER
1шт.
P523573
BRAKE
LOCKING
1шт.
P33873
SCREW
/BOLT, M12 x 25
3шт.
P2630177
SHAFT LOCK
1шт.
P1730901
HEADED PIN
PIN, HEADED
1шт.
P2630178
CAP
COVER
1шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
See NEXSL00189; NIT 3260; SAT 65
1шт.
P3528776
BUSHING, LARGE
BUSHING, 100 x 130 x 190
2шт.
P328788
BUSHING
100 x 130 x 120
2шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
2шт.
P1737451
PLUG
2шт.
P523573
BRAKE
LOCKING
1шт.
P33873
SCREW
/BOLT, M12 x 25
3шт.
P529989
SHAFT LOCK
1шт.
P1130954
HEADED PIN
PIN
1шт.
P433816
SCREW
/BOLT, M18 x 35 x 35
3шт.
P23579
BRAKE
LOCKING
1шт.
P530147
CAP
COVER
1шт.
Выбрано товаров: 80
