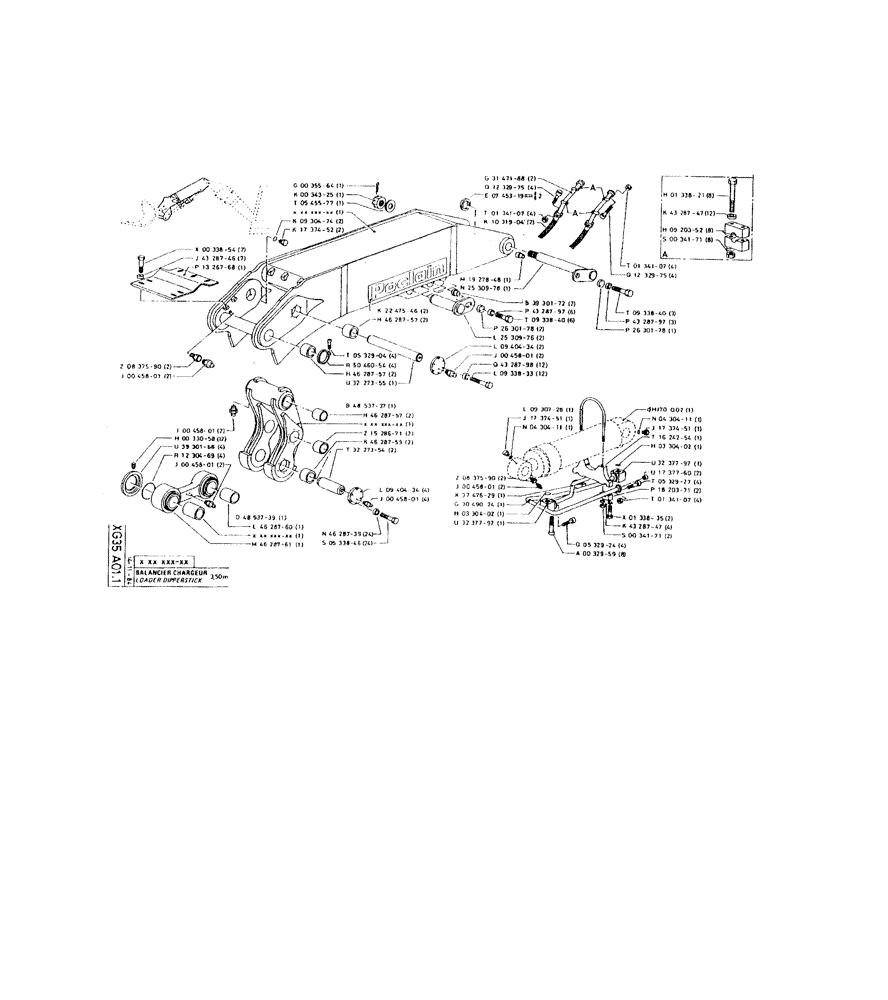

Запчасти Case 160CKS (276) - LOADER DIPPERSTICK (14) - DIPPERSTICKS
№
Артикул
Название
Примечание
Количество
P33854
SCREW
/BOLT, M16 x 50
7шт.
P4328746
WASHER
16.5 x 11 x 30
7шт.
P1326768
HOOD
PLATE
1шт.
P837590
END FITTING
2шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P35564
SPLIT PIN/SAFETY PIN
SPLIT PIN, 10 x 140
1шт.
P34325
NUT
1шт.
P545577
WASHER
1шт.
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
SEAL, 2.62 x 15.54-80
2шт.
P1737452
PLUG
2шт.
P2247546
DECAL
ADHESIVE
2шт.
P4628757
BUSHING, LARGE
BUSHING, 90 x 120 x 100
2шт.
P532904
SCREW
/BOLT, M10 x 90 x 55
4шт.
P5046054
SEAL
4шт.
P4628757
BUSHING, LARGE
BUSHING, 90 x 120 x 100
2шт.
P3227355
LARGE PIN
PIN
1шт.
P3147188
PIPE
30 x 42
2шт.
P1232975
SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9
/BOLT, M14 x 70
4шт.
P745319
WASHER
91 x 160 x 2
1шт.
P134107
NUT
4шт.
P1031904
HOSE
2шт.
P3930172
SHAFT LOCK
2шт.
P4328797
WASHER
12.5 x 8 x 25
6шт.
P933840
SCREW
/BOLT, M12 x 35 x 35
6шт.
P2630178
CAP
COVER
2шт.
P2530976
LARGE PIN
PIN
2шт.
P940434
CAP
COVER
2шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P4328798
WASHER
14.5 x 10 x 28
12шт.
P933833
SCREW
/BOLT, M14 x 45 x 45
12шт.
P134107
NUT
4шт.
P1232975
SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9
/BOLT, M14 x 70
4шт.
P933840
SCREW
/BOLT, M12 x 35 x 35
3шт.
P4328797
WASHER
12.5 x 8 x 25
3шт.
P2630178
CAP
COVER
1шт.
P133821
SCREW
/BOLT, M20 x 150
8шт.
P4328747
WASHER
21 x 14 x 35
12шт.
P920352
SHIN
BRACKET
8шт.
P34171
NUT
8шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P33058
SCREW
/BOLT, M6 x 15
12шт.
P3930166
FLANGE
4шт.
P1230469
O-RING
16 x 172
4шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P4853739
ROD, CONNECTING
CONNECTING ROD
1шт.
P4628760
BUSHING, LARGE
BUSHING, 100 x 130 x 150
1шт.
P4628761
BUSHING
100 x 130 x 170
1шт.
P4853737
LINKAGE YOKE
YOKE
1шт.
P4628757
BUSHING, LARGE
BUSHING, 90 x 120 x 100
2шт.
P1528671
BUSHING, LARGE
BUSHING, 100 x 130 x 90
2шт.
P4628759
BUSHING, LARGE
BUSHING, 100 x 130 x 90
2шт.
P3227354
LARGE PIN
PIN
2шт.
P940434
CAP
COVER
4шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
4шт.
P837590
END FITTING
2шт.
J45801
LUBE NIPPLE,M8 x 1.25
GREASE NIPPLE, M8 x 1.25
2шт.
P3747629
PIPE
30 x 42
1шт.
P3049024
PIPE, 30 x 42
1шт.
P330402
O-RING
SEAL, 3.53 x 53.57-80
1шт.
P3237797
SHIN
BRACKET
1шт.
P930728
STIRRUP
BRACKET, 273 x 273.5
1шт.
P1737451
PLUG
1шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
1шт.
P532924
SCREW
/BOLT, M14 x 45
4шт.
P32959
SCREW
/BOLT, M16 x 100
8шт.
P430411
O-RING
SEAL, 2.62 x 18.72-80
1шт.
P1737451
PLUG
1шт.
P1624254
SUPPORT
1шт.
P330402
O-RING
SEAL, 3.53 x 53.57-80
1шт.
P3237797
SHIN
BRACKET
1шт.
P1737760
JUNCTION
2шт.
P532927
SCREW
/BOLT, M14 x 120
4шт.
P1820371
SHIN
BRACKET
2шт.
P134107
NUT
4шт.
P133835
SCREW
/BOLT, M20 x 100
2шт.
P4328747
WASHER
21 x 14 x 35
4шт.
P34171
NUT
2шт.
P532924
SCREW
/BOLT, M14 x 45
4шт.
P32959
SCREW
/BOLT, M16 x 100
8шт.
Выбрано товаров: 79
