Запчасти Case 160CKS (275) - LOADER DIPPERSTICK (14) - DIPPERSTICKS

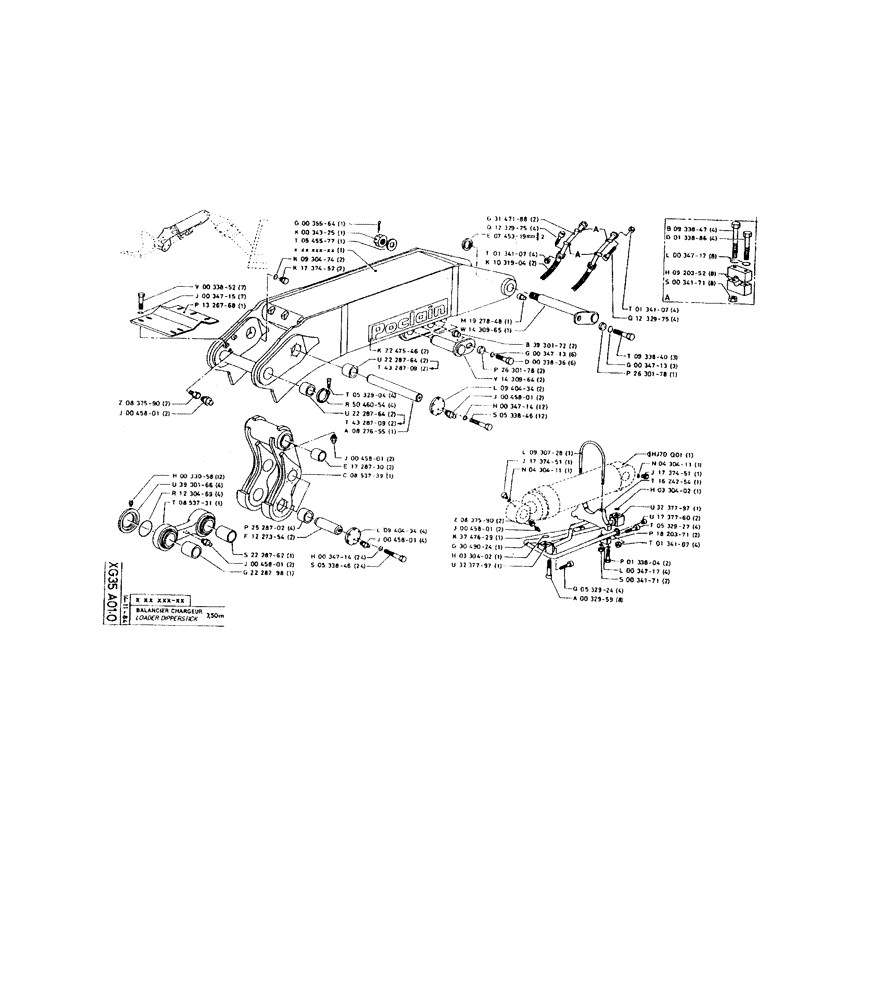

Схема запчастей Case 160CKS - (275) - LOADER DIPPERSTICK (14) - DIPPERSTICKS

Артикул

Название

Примечание

Количество

P33852

SCREW

/BOLT, M16 x 45

7шт.

P34715

WASHER, LOCK

WASHER

7шт.

See SAT 77.

1шт.

P1326768

HOOD

PLATE

1шт.

P837590

END FITTING

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P33058

SCREW

/BOLT, M6 x 15

12шт.

P3930166

FLANGE

4шт.

P1230469

O-RING

16 x 172

4шт.

P853731

ROD, CONNECTING

CONNECTING ROD

1шт.

P35564

SPLIT PIN/SAFETY PIN

SPLIT PIN, 10 x 140

1шт.

P34325

NUT

1шт.

P545577

WASHER

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80

2шт.

P1737452

PLUG

2шт.

P2528702

BUSHING

100 x 130 x 90

4шт.

P1227354

PIN

2шт.

P2228762

BUSHING, LARGE

BUSHING, 100 x 130 x 170

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P2228798

BUSHING, LARGE

BUSHING, 100 x 130 x 150

1шт.

P2247546

DECAL

ADHESIVE

2шт.

P2228764

BUSHING, LARGE

BUSHING, 90 x 120 x 100

2шт.

P4328709

BUSHING, LARGE

BUSHING, 90 x 120 x 100

2шт.

P532904

SCREW

/BOLT, M10 x 90 x 55

4шт.

P5046054

SEAL

4шт.

P2228764

BUSHING, LARGE

BUSHING, 90 x 120 x 100

2шт.

P4328709

BUSHING, LARGE

BUSHING, 90 x 120 x 100

2шт.

P827655

LARGE PIN

PIN

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P1728730

BUSHING, LARGE

BUSHING, 90 x 120 x 100

2шт.

P853739

LINKAGE YOKE

YOKE

1шт.

P940434

CAP

COVER

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

P34714

WASHER, LOCK

WASHER

24шт.

P533846

SCREW

/BOLT, M14 x 40

24шт.

P3147188

PIPE

30 x 42

2шт.

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

/BOLT, M14 x 70

4шт.

P745319

WASHER

91 x 160 x 2

1шт.

P134107

NUT

4шт.

P1031904

HOSE

2шт.

P1927848

SHAFT LOCK

1шт.

P1430965

LARGE PIN

PIN

1шт.

P3930172

SHAFT LOCK

2шт.

P34713

WASHER

6шт.

P33836

SCREW

/BOLT, M12 x 20

6шт.

P2630178

CAP

COVER

2шт.

P1430964

LARGE PIN

PIN

2шт.

P940434

CAP

COVER

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P34714

WASHER, LOCK

WASHER

12шт.

P533846

SCREW

/BOLT, M14 x 40

12шт.

P134107

NUT

4шт.

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

/BOLT, M14 x 70

4шт.

P933840

SCREW

/BOLT, M12 x 35 x 35

3шт.

P34713

WASHER

3шт.

P2630178

CAP

COVER

1шт.

P933847

SCREW/BOLT, M20 x 135

4шт.

P133886

SCREW/BOLT, M20 x 130

4шт.

P34717

WASHER, LOCK

WASHER

8шт.

P920352

SHIN

BRACKET

8шт.

P34171

NUT

8шт.

P837590

END FITTING

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

See NEXSL00189; NIT 3260; SAT 65

1шт.

P3747629

PIPE

30 x 42

1шт.

P3049024

PIPE, 30 x 42

1шт.

P330402

O-RING

SEAL, 3.53 x 53.57-80

1шт.

P3237797

SHIN

BRACKET

1шт.

P930728

STIRRUP

BRACKET, 273 x 273.5

1шт.

P1737451

PLUG

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P532924

SCREW

/BOLT, M14 x 45

4шт.

P32959

SCREW

/BOLT, M16 x 100

8шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P1737451

PLUG

1шт.

P1624254

SUPPORT

1шт.

P330402

O-RING

SEAL, 3.53 x 53.57-80

1шт.

P3237797

SHIN

BRACKET

1шт.

P1737760

JUNCTION

2шт.

P532927

SCREW

/BOLT, M14 x 120

4шт.

P1820371

SHIN

BRACKET

2шт.

P134107

NUT

4шт.

P133804

BOLT,Hex, M20 x 85

2шт.

P34717

WASHER, LOCK

WASHER

4шт.

P34171

NUT

2шт.

P532924

SCREW

/BOLT, M14 x 45

4шт.

P32959

SCREW

/BOLT, M16 x 100

8шт.

Выбрано товаров: 87
