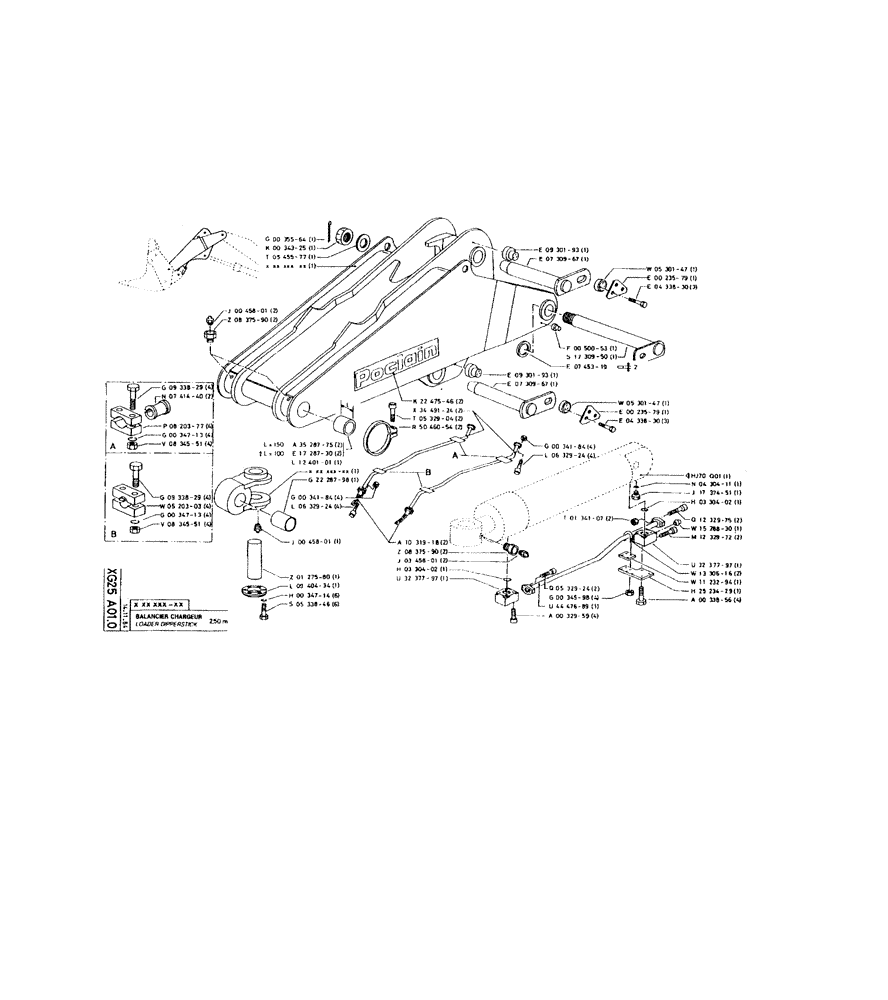

Запчасти Case 160CKS (273) - LOADER DIPPERSTICK (14) - DIPPERSTICKS

P933829

SCREW

/BOLT, M12 x 1.75 x 85

4шт.

P741440

BUSHING

2шт.

P820377

SHIN

BRACKET

4шт.

P34713

WASHER

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P933829

SCREW

/BOLT, M12 x 1.75 x 85

4шт.

P520303

SHIN

BRACKET

4шт.

P34713

WASHER

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P35564

SPLIT PIN/SAFETY PIN

SPLIT PIN, 10 x 140

1шт.

P34325

NUT

1шт.

P545577

WASHER

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P837590

END FITTING

2шт.

P3528775

BUSHING, LARGE

BUSHING, 90 x 120 x 150

2шт.

P1728730

BUSHING, LARGE

BUSHING, 90 x 120 x 100

2шт.

P1240101

COUPLING

1шт.

P2228798

BUSHING, LARGE

BUSHING, 100 x 130 x 150

1шт.

86500689

NUT,M10 x 1.5, Cl 10

4шт.

L632924

SCREW

/BOLT, M10 x 55

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

P127580

LARGE PIN

PIN

1шт.

P940434

CAP

COVER

1шт.

P34714

WASHER, LOCK

WASHER

1шт.

P533846

SCREW

/BOLT, M14 x 40

6шт.

P2247546

DECAL

ADHESIVE

2шт.

P3449124

PIPE

19 x 27

2шт.

P532904

SCREW

/BOLT, M10 x 90 x 55

2шт.

P5046054

SEAL

2шт.

P1031918

HOSE

2шт.

P837590

END FITTING

2шт.

P330402

O-RING

SEAL, 3.53 x 53.57-80

1шт.

P3237797

SHIN

BRACKET

1шт.

P930193

SHAFT LOCK

1шт.

P730967

LARGE PIN

PIN

1шт.

P930193

SHAFT LOCK

1шт.

P730967

LARGE PIN

PIN

1шт.

86500689

NUT,M10 x 1.5, Cl 10

4шт.

L632924

SCREW

/BOLT, M10 x 55

4шт.

P532924

SCREW

/BOLT, M14 x 45

2шт.

P34598

SAFETY NUT

4шт.

P4447689

PIPE

30 x 42

1шт.

P32959

SCREW

/BOLT, M16 x 100

4шт.

P530147

CAP

COVER

1шт.

P23579

BRAKE

LOCKING

1шт.

P433830

SCREW

/BOLT, M18 x 40

3шт.

P50053

SHAFT LOCK

1шт.

P1730950

LARGE PIN

PIN

1шт.

P745319

WASHER

91 x 160 x 2

1шт.

P530147

CAP

COVER

1шт.

P23579

BRAKE

LOCKING

1шт.

P433830

SCREW

/BOLT, M18 x 40

3шт.

P134107

NUT

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P1737451

PLUG

1шт.

P330402

O-RING

SEAL, 3.53 x 53.57-80

1шт.

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

/BOLT, M14 x 70

2шт.

P1528830

JUNCTION

1шт.

P1232972

SCREW

/BOLT, M14 x 50

2шт.

P3237797

SHIN

BRACKET

1шт.

P1330616

STIRRUP

BRACKET, 44 x 50

2шт.

P1123294

LARGE PLATE

PLATE

1шт.

P2523429

PLATE

1шт.

P33856

SCREW

/BOLT, M16 x 120

4шт.
