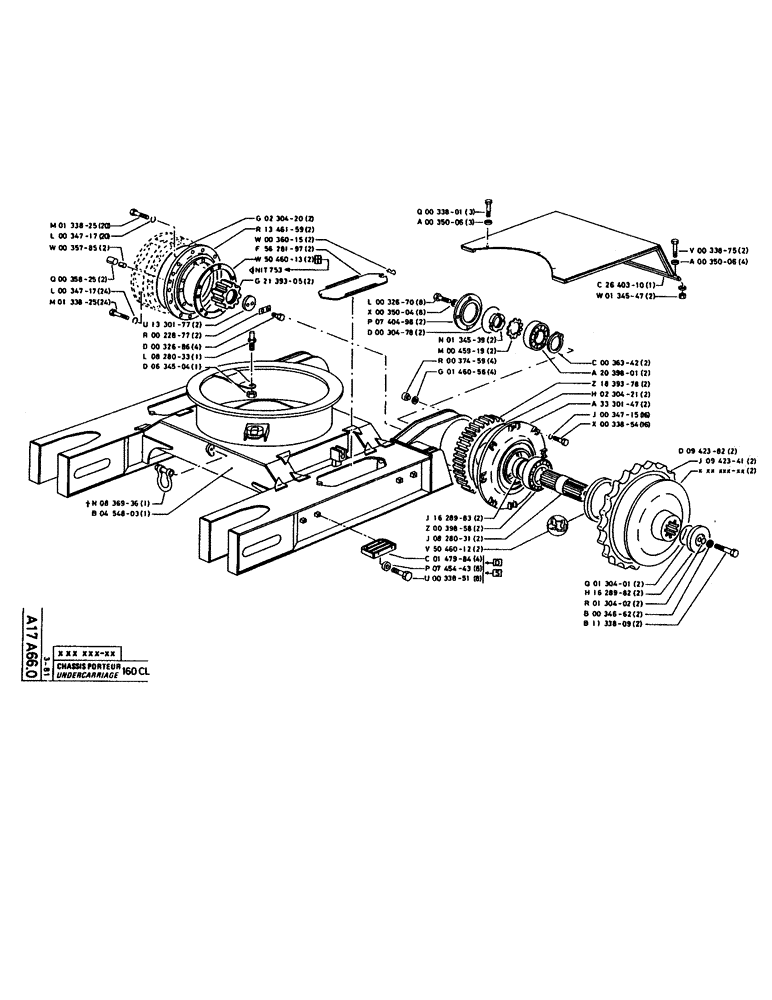

Запчасти Case 160CK (029) - UNDERCARRIAGE (04) - UNDERCARRIAGE

P133825

SCREW

/BOLT, M20 x 60

20шт.

P34717

WASHER, LOCK

WASHER

20шт.

P35785

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 14 x 60

2шт.

P35825

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 22 x 60

2шт.

P34717

WASHER, LOCK

WASHER

24шт.

P133825

SCREW

/BOLT, M20 x 60

24шт.

P836936

SHACKLE, no longer exists on new model

1шт.

P454803

CHASSIS

1шт.

P1330177

WASHER

2шт.

P22877

BRAKE

LOCKING

2шт.

P32686

SCREW

/BOLT, M14 x 30

4шт.

P828033

LARGE PIN

PIN

1шт.

P634504

NUT

1шт.

P230420

O-RING

2.5 x 470

2шт.

P1346159

SUPPORT

2шт.

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

P5628197

HOOD

PLATE

2шт.

P5046013

PAPER SEAL, no longer sold

2шт.

P2139305

PINION

2шт.

P33801

SCREW

/BOLT, M16 x 25

3шт.

P35006

WASHER

3шт.

P32670

SCREW

/BOLT, M12 x 30

8шт.

P35004

WASHER

8шт.

P740498

COVER

PLATE

2шт.

P30478

O-RING

3 x 161

2шт.

P134539

SLOTTED NUT

M95 x 2

2шт.

P45919

SPECIAL WASHER

NUT LOCK

2шт.

P37459

PLUG

D27 x 1.5

4шт.

P146056

COMPOSITE SEAL

METAL PLASTICS

4шт.

P1628983

SPACER

2шт.

P39858

BEARING

2шт.

P828031

SHAFT

2шт.

P5046012

SEAL

2шт.

P147984

STEP

FOOTBOARD (Germany, Sweden)

4шт.

P745443

WASHER

15 x 5 x 30 (Germany, Sweden)

8шт.

P33851

SCREW

/BOLT, M14 x 35 (Germany, Sweden)

8шт.

P33875

SCREW

/BOLT, M16 x 70

2шт.

P35006

WASHER

4шт.

P2640310

COVER

1шт.

P134547

SAFETY NUT

2шт.

P36342

RING, SNAP

LOCKING RING

2шт.

P2039801

BEARING

2шт.

P1839378

PINION

2шт.

P230421

O-RING

SEAL, 3.5 x 510

2шт.

P3330147

SUPPORT

2шт.

P34715

WASHER, LOCK

WASHER

16шт.

P33854

SCREW

/BOLT, M16 x 50

16шт.

P942382

GEAR WHEEL

2шт.

P942341

DRIVE SPROCKET

SLEWING RING

2шт.

P130401

O-RING

3 x 120

2шт.

P1628982

PLATE, LOCKING

LOCK WASHER

2шт.

P130402

O-RING

2 x 32

2шт.

P34662

WASHER

2шт.

P1133809

SCREW

/BOLT, M27 x 1.5 x 165

2шт.
