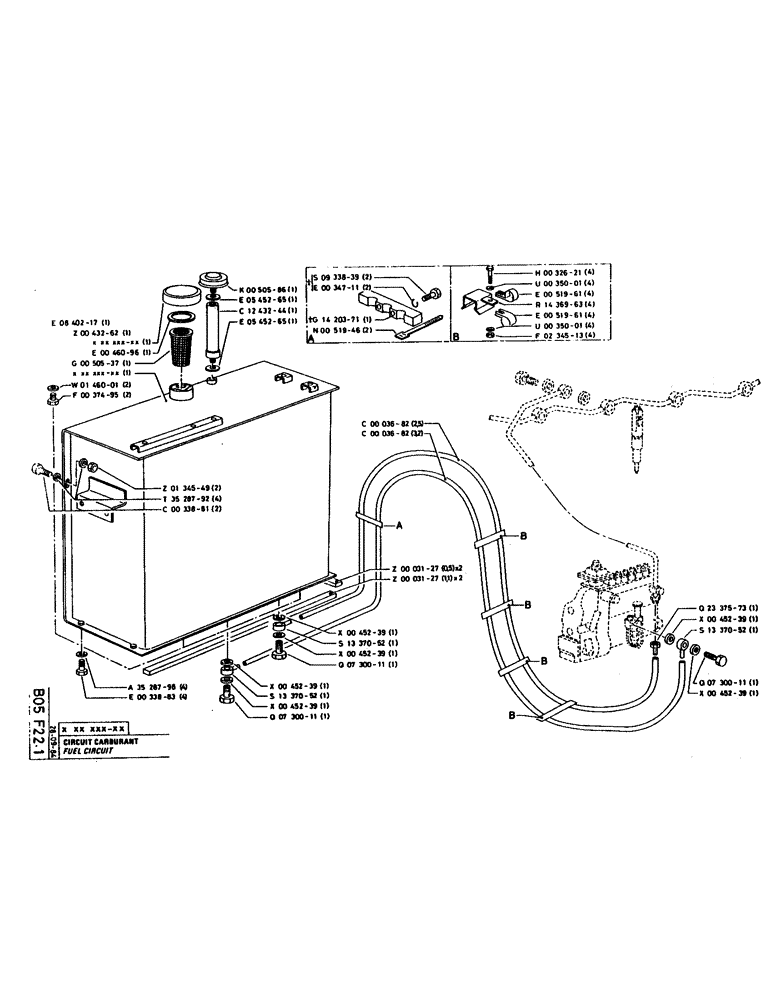

Запчасти Case 160CK (040) - FUEL CIRCUIT (02) - FUEL SYSTEM

P840217

FUEL TANK

1шт.

P43262

PLUG

1шт.

P46096

WASHER, SEALING

SEAL, 88 x 100 x 3

1шт.

P50537

FILTER BOWL

1шт.

P146001

WASHER, SEALING

SEAL WASHER

2шт.

P37495

PLUG

2шт.

P134549

SAFETY NUT

2шт.

P3528792

WASHER

14.5 x 10 x 35

4шт.

P33881

SCREW

/BOLT, M14 x 60

2шт.

P3528798

WASHER

15.2 x 25 x 34

4шт.

P33883

SCREW

/BOLT, M14 x 50

4шт.

P50586

BREATHER

1шт.

P545265

COPPER SEAL

14.2 x 19 x 1.5

1шт.

P1243244

SUPPORT

1шт.

P545265

COPPER SEAL

14.2 x 19 x 1.5

1шт.

P45239

WASHER, SEALING

SEAL WASHER

1шт.

P1337052

FITTING

CONNECTION

1шт.

P45239

WASHER, SEALING

SEAL WASHER

1шт.

P730011

BANJO BOLT

FEMALE SCREW

1шт.

P933839

SCREW

/BOLT, M10 x 35 x 35, no longer exist on new model

2шт.

P34711

WASHER

no longer exists on new model

2шт.

P1420371

SHIN

BRACKET, 8 x 10, no longer exists on new model

1шт.

P51946

CLAMP

COLLAR

2шт.

P3682

TUBE

PIPE, 8 x 12

1шт.

P3682

TUBE

PIPE, 8 x 12

1шт.

P3127

SEAL

30 x 10

1шт.

P3127

SEAL

30 x 10

1шт.

P45239

WASHER, SEALING

SEAL WASHER

1шт.

P1337052

FITTING

CONNECTION

1шт.

P45239

WASHER, SEALING

SEAL WASHER

1шт.

P730011

BANJO BOLT

FEMALE SCREW

1шт.

P32621

SCREW

/BOLT, M6 x 16

4шт.

P35001

WASHER

4шт.

P51961

CLAMP

COLLAR

4шт.

P1436963

CLASP

4шт.

P51961

CLAMP

COLLAR

4шт.

P35001

WASHER

4шт.

P234513

SAFETY NUT

4шт.

P2337573

FITTING

CONNECTION

1шт.

P45239

WASHER, SEALING

SEAL WASHER

1шт.

P1337052

FITTING

CONNECTION

1шт.

P730011

BANJO BOLT

FEMALE SCREW

1шт.

P45239

WASHER, SEALING

SEAL WASHER

1шт.
