Запчасти Case 160CK (352) - 5-TINE GRAB (18) - ATTACHMENT ACCESSORIES

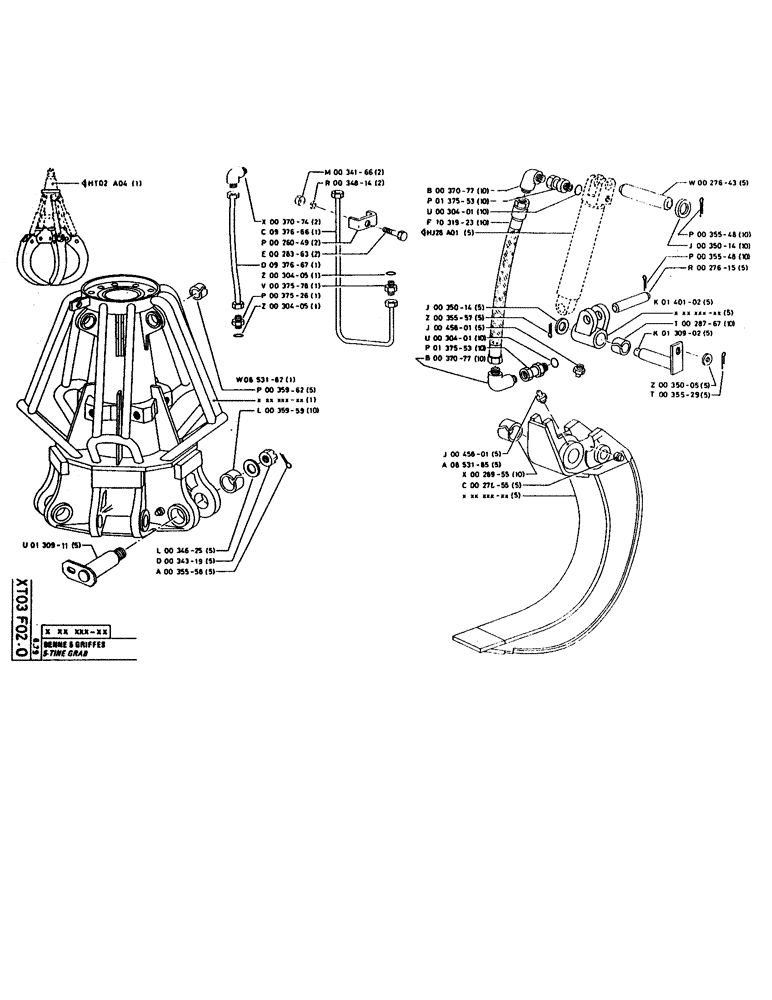

Схема запчастей Case 160CK - (352) - 5-TINE GRAB (18) - ATTACHMENT ACCESSORIES

Артикул

Название

Примечание

Количество

P130911

PIN

5шт.

P34625

WASHER

5шт.

P34319

SLOTTED NUT

NUT

5шт.

P35558

SPLIT PIN

8 x 100

5шт.

P853182

FRAME

1шт.

P35962

BUSHING

40 x 50 x 35

5шт.

P35959

BUSHING

55 x 70 x 35

10шт.

P37074

ELBOW-CONNECTION

2шт.

P937666

PIPE, 19 x 27

1шт.

P26049

PIPE CLAMP

2шт.

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

P937667

PIPE, 19 x 27

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

P37578

UNION

1шт.

P37526

SUN VISOR

CONNECTION

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P34814

WASHER

2шт.

P37077

ELBOW-CONNECTION

ELBOW CONNECTION

10шт.

P137553

FITTING

CONNECTION

10шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

10шт.

P1031923

HOSE

10шт.

P35014

WASHER

5шт.

P35557

SPLIT PIN

8 x 80

5шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

5шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

10шт.

P137553

FITTING

CONNECTION

10шт.

P37077

ELBOW-CONNECTION

ELBOW CONNECTION

10шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

5шт.

P853185

CLAW

TOOTH

5шт.

P28955

BUSHING, 55 x 75 x 65

10шт.

P27855

SHAFT LOCK

5шт.

P27643

PIN

5шт.

P35548

SPLIT PIN/SAFETY PIN

SPLIT PIN, 6 x 70

10шт.

P35014

WASHER

10шт.

P35548

SPLIT PIN/SAFETY PIN

SPLIT PIN, 6 x 70

10шт.

P27615

PIN

5шт.

P140102

COUPLING

5шт.

P28767

BUSHING

40 x 55 x 45

10шт.

P130902

HEADED PIN

PIN, HEADED

5шт.

P35005

WASHER

5шт.

P35529

SPLIT PIN

4 x 35

5шт.

Выбрано товаров: 42
