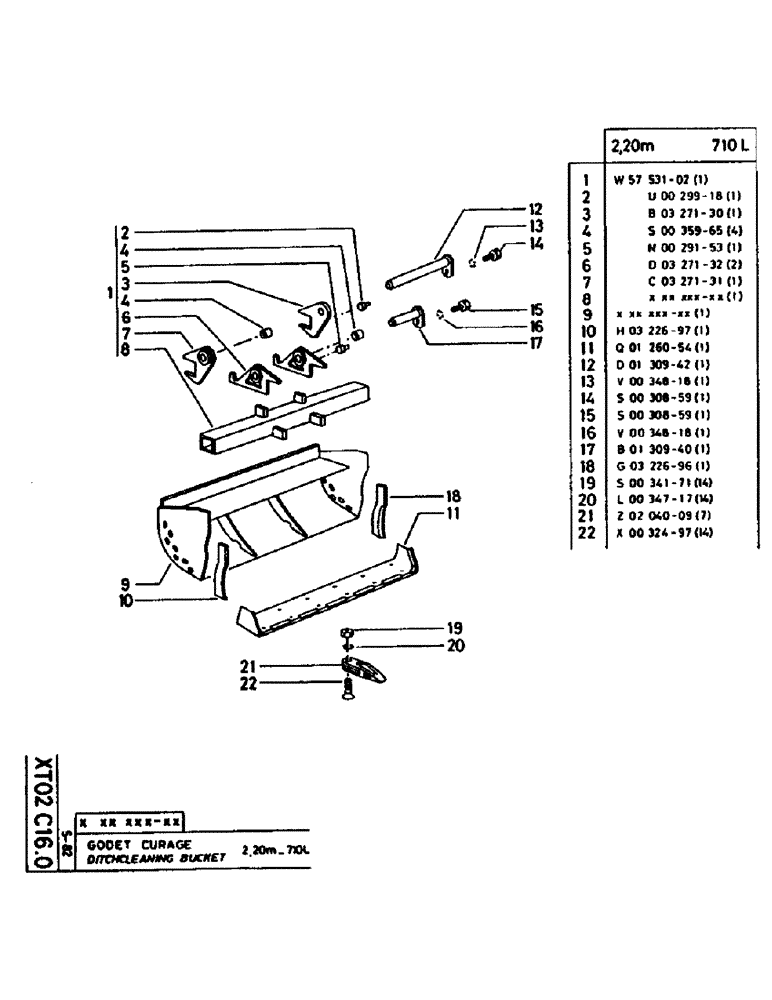

Запчасти Case 160CK (341) - DITCH CLEANING BUCKET (18) - ATTACHMENT ACCESSORIES

1

P5753102

BEAM

MEMBER

1шт.

2

P29918

SHAFT LOCK

1шт.

3

P327130

WELDABLE LUG

LUG

1шт.

4

P35965

BUSHING

65 x 75 x 58.5

4шт.

5

P29153

SHAFT LOCK

1шт.

6

P327132

LUG

2шт.

7

P327131

WELDABLE LUG

LUG

1шт.

8

XXXXXXXX

1шт.

9

XXXXXXXX

1шт.

10

P322697

STIFFENER

REINFORCEMENT

1шт.

11

P126054

BLADE

1шт.

12

P130942

PIN

1шт.

13

P34818

WASHER

1шт.

14

P30859

BOLT

SCREW/BOLT

1шт.

15

P30859

BOLT

SCREW/BOLT

1шт.

16

P34818

WASHER

1шт.

17

P130940

HEADED PIN

PIN, HEADED

1шт.

18

P322696

STIFFENER

REINFORCEMENT

1шт.

19

P34171

NUT

14шт.

20

P34717

WASHER, LOCK

WASHER

14шт.

21

P204009

TOOTH

7шт.

22

P32497

SCREW

/BOLT, M20 x 90

14шт.
