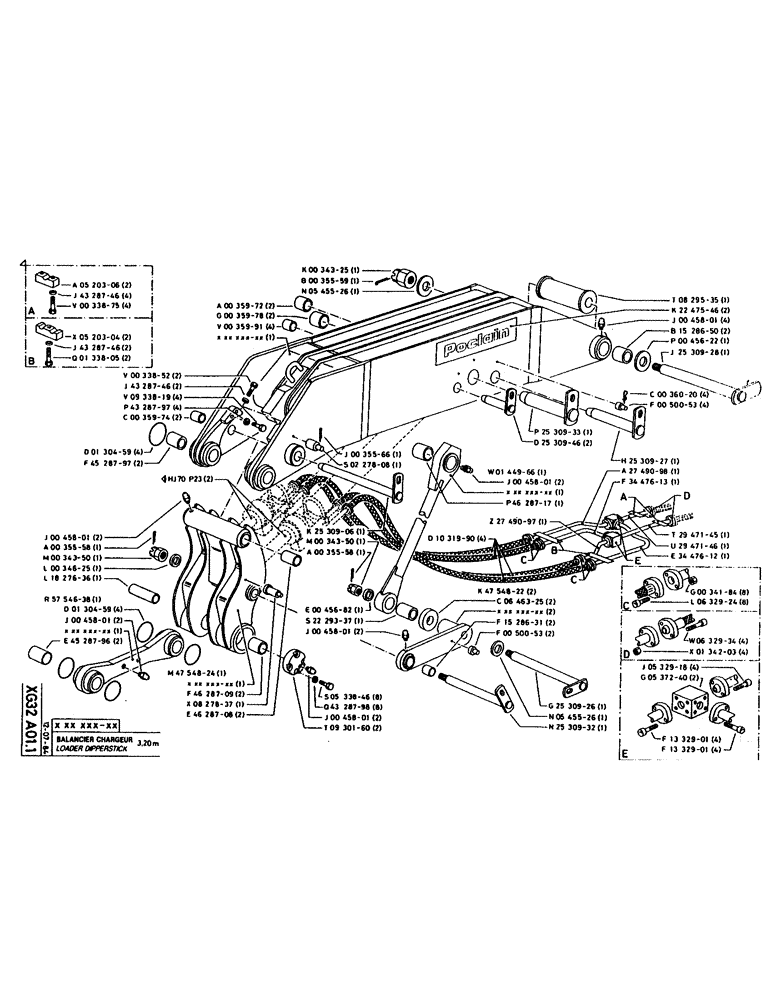

Запчасти Case 160CK (296) - LOADER DIPPERSTICK (14) - DIPPERSTICKS

P520306

SHIN

BRACKET

2шт.

P4328746

WASHER

16.5 x 11 x 30

4шт.

P33875

SCREW

/BOLT, M16 x 70

4шт.

P520304

SHIN

BRACKET

2шт.

P4328746

WASHER

16.5 x 11 x 30

2шт.

P133805

SCREW

/BOLT, M16 x 60

2шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

L632924

SCREW

/BOLT, M10 x 55

8шт.

P632934

SCREW

/BOLT, M12 x 65

4шт.

337475

NUT,M12, Cl 10

4шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

4шт.

P537240

TEE

T PIECE, DN34 x 27 x 27

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P34325

NUT

1шт.

P35559

SPLIT PIN

8 x 120

1шт.

P545526

WASHER

1шт.

P35972

BUSHING

75 x 85 x 68

2шт.

P35978

BUSHING

100 x 120 x 65

2шт.

P35991

BUSHING, 60 x 75 x 65

4шт.

P33852

SCREW

/BOLT, M16 x 45

2шт.

P4328746

WASHER

16.5 x 11 x 30

2шт.

P933819

SCREW

/BOLT, M12 x 55 x 55

4шт.

P4328797

WASHER

12.5 x 8 x 25

4шт.

P35974

BUSHING, 65 x 75 x 80

2шт.

P130459

12.4 x 145.2

4шт.

P4528797

BUSHING

75 x 100 x 130

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P35558

SPLIT PIN

8 x 100

1шт.

P34350

NUT

1шт.

P34625

WASHER

1шт.

P1827636

LARGE PIN

PIN

1шт.

P5754638

ROD, CONNECTING

CONNECTING ROD

1шт.

P130459

12.4 x 145.2

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P4528796

BUSHING

75 x 100 x 160

2шт.

P35566

SPLIT PIN

10 x 100

1шт.

P227808

SHAFT LOCK

1шт.

P2530906

LARGE PIN

PIN

1шт.

P34350

NUT

1шт.

P35558

SPLIT PIN

8 x 100

1шт.

P45682

WASHER

1шт.

P2229337

SPACER

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P4754824

LINKAGE YOKE

YOKE

1шт.

P4628709

BUSHING

75 x 100 x 75

2шт.

P827837

SHAFT LOCK

1шт.

P4628708

BUSHING

65 x 85 x 130

2шт.

P533846

SCREW

/BOLT, M14 x 40

8шт.

P4328798

WASHER

14.5 x 10 x 28

8шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P930160

COVER

PLATE

2шт.

P829535

SPACER

1шт.

P2247546

DECAL

ADHESIVE

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

P1528650

BUSHING, LARGE

BUSHING, 80 x 105 x 80

2шт.

P45622

WASHER

85 x 140 x 12

1шт.

P2530928

LARGE PIN

PIN

1шт.

P36020

SPLIT PIN/SAFETY PIN

4шт.

P50053

SHAFT LOCK

4шт.

P2530933

HEADED PIN

PIN, HEADED

1шт.

P2530946

HEADED PIN

PIN

2шт.

P144966

TRUSS ROD

TIE BAR

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P4628717

BUSHING

100 x 130 x 120

1шт.

P2749097

PIPE, 19 x 27

1шт.

P1031990

HOSE

4шт.

P4754822

ARM

2шт.

P646325

WASHER

2шт.

P1528631

BUSHING

60 x 75 x 65

2шт.

P50053

SHAFT LOCK

2шт.

P2530926

HEADED PIN

PIN, HEADED

1шт.

P545526

WASHER

1шт.

P2530932

LARGE PIN

PIN

1шт.

P2530927

LARGE PIN

PIN

1шт.

P2749098

PIPE

19 x 27

1шт.

P3447613

PIPE, 19 x 27

1шт.

P2947145

PIPE, 24 x 34

1шт.

P2947146

PIPE, 24 x 34

1шт.

P3447612

PIPE, 19 x 27

1шт.
