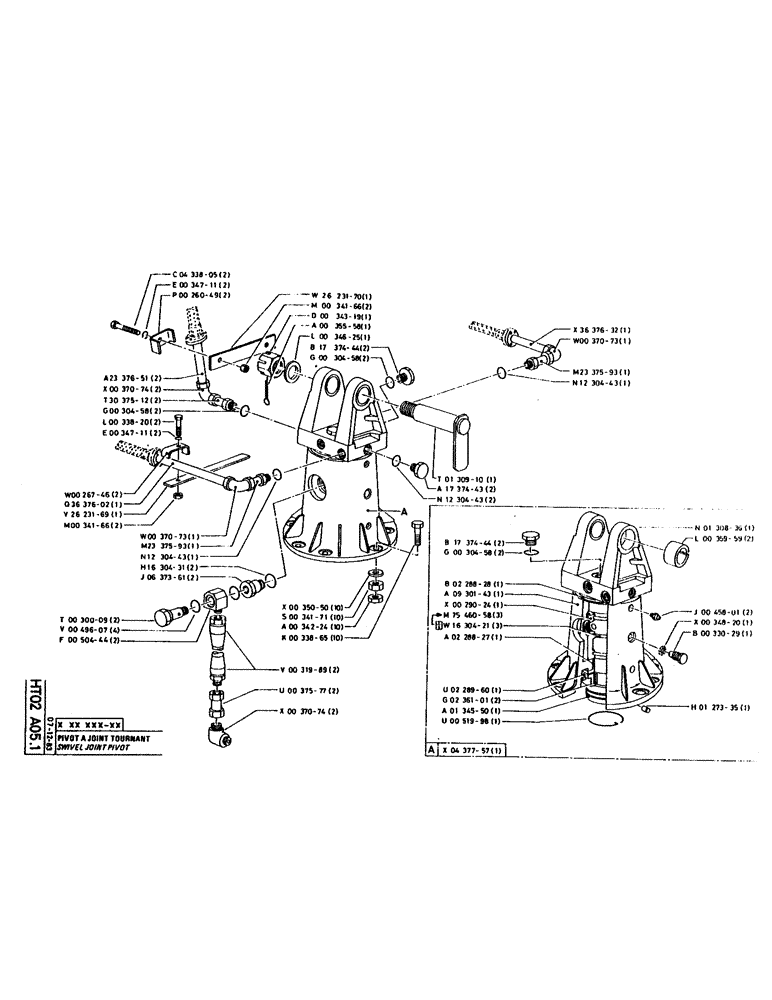

Запчасти Case 160CK (238) - SWIVEL JOINT PIVOT (07) - HYDRAULIC SYSTEM

P433805

SCREW

/BOLT, M10 x 60 x 26

2шт.

P34711

WASHER

2шт.

P26049

PIPE CLAMP

2шт.

P2337651

PIPE

20 x 27

2шт.

P37074

ELBOW-CONNECTION

2шт.

P3037512

FITTING

CONNECTION

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P33820

SCREW

/BOLT, M10 x 45

2шт.

P34711

WASHER

2шт.

P26746

PIPE CLAMP

2шт.

P3637602

PIPE

11 x 17

1шт.

P2623169

PLATE

1шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P37073

ELBOW-CONNECTION

1шт.

P2337593

FITTING

CONNECTION

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

1шт.

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

SEAL, 2.62 x 36.17-80

2шт.

P637361

RESTRICTOR

34G x 27G

2шт.

P30009

BANJO BOLT

FEMALE SCREW

2шт.

P49607

SEAL

BUSHING

4шт.

P50444

FITTING

CONNECTION

2шт.

P2623170

PLATE

1шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P34319

SLOTTED NUT

NUT

1шт.

P35558

SPLIT PIN

8 x 100

1шт.

P34625

WASHER

1шт.

P1737444

PLUG

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P3637632

PIPE

11 x 17

1шт.

P37073

ELBOW-CONNECTION

1шт.

P2337593

FITTING

CONNECTION

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

1шт.

P130910

HEADED PIN

PIN, HEADED

1шт.

P1737443

PLUG

2шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80

2шт.

P35050

WASHER

10шт.

P34171

NUT

10шт.

P34224

NUT

10шт.

P33865

SCREW

/BOLT, M20 x 70

10шт.

P31989

HOSE

2шт.

P37577

PIPE

19 x 27

2шт.

P37074

ELBOW-CONNECTION

2шт.

P1737444

PLUG

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P228828

BUSHING

1шт.

P930143

BODY

1шт.

P29024

BUSHING

1шт.

P7546058

SPECIAL MAT. SEAL

SEAL

3шт.

P1630421

O-RING

5.33 x 94.62-K, no longer sold

3шт.

P228827

BUSHING

1шт.

P228960

SPACER

1шт.

P236101

BUCKET TOOTH KEY

KEY, 12 x 12 x 40

2шт.

P134550

SLOTTED NUT

M75 x 2

1шт.

P51998

RING, SNAP

SPRING WASHER

1шт.

P130836

CLEVIS

FORK

1шт.

P35959

BUSHING

55 x 70 x 35

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P34820

WASHER

1шт.

P33029

SCREW

/BOLT, 16 x 35

1шт.

P127335

LARGE PIN

PIN

1шт.

P437757

PIVOT

1шт.
