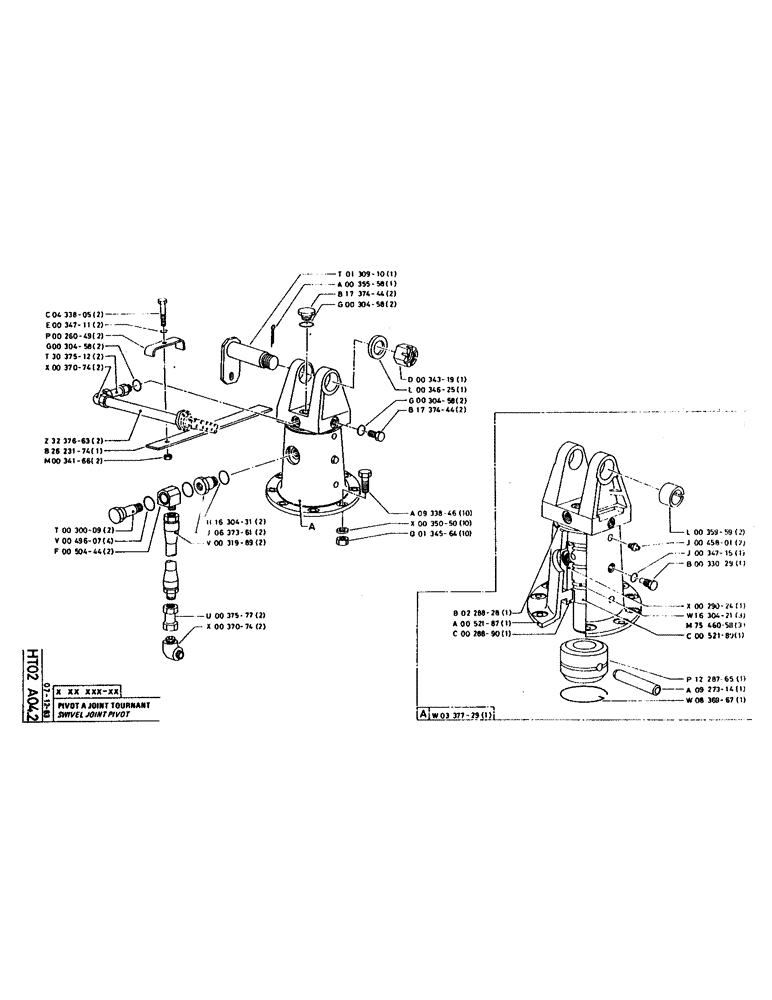

Запчасти Case 160CK (236) - SWIVEL JOINT PIVOT (07) - HYDRAULIC SYSTEM

P433805

SCREW

/BOLT, M10 x 60 x 26

2шт.

P34711

WASHER

2шт.

P26049

PIPE CLAMP

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P3037512

FITTING

CONNECTION

2шт.

P37074

ELBOW-CONNECTION

2шт.

P3237663

PIPE

19 x 27

2шт.

P2623174

PLATE

1шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P30009

BANJO BOLT

FEMALE SCREW

2шт.

P49607

SEAL

BUSHING

4шт.

P50444

FITTING

CONNECTION

2шт.

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

SEAL, 2.62 x 36.17-80

2шт.

P637361

RESTRICTOR

34G x 27G

2шт.

P31989

HOSE

2шт.

P37577

PIPE

19 x 27

2шт.

P37074

ELBOW-CONNECTION

2шт.

P130910

HEADED PIN

PIN, HEADED

1шт.

P35558

SPLIT PIN

8 x 100

1шт.

P1737444

PLUG

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P34319

SLOTTED NUT

NUT

1шт.

P34625

WASHER

1шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P1737444

PLUG

2шт.

P933846

SCREW

/BOLT, M20 x 70

10шт.

P35050

WASHER

10шт.

P134564

SAFETY NUT

10шт.

P228828

BUSHING

1шт.

P52187

BODY

1шт.

P28890

BUSHING

1шт.

P35959

BUSHING

55 x 70 x 35

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P34715

WASHER, LOCK

WASHER

1шт.

P33029

SCREW

/BOLT, 16 x 35

1шт.

P29024

BUSHING

1шт.

P1630421

O-RING

5.33 x 94.62-K, no longer sold

3шт.

P7546058

SPECIAL MAT. SEAL

SEAL

3шт.

P52189

CLEVIS

FORK

1шт.

P1228765

COLLAR

SAFETY SET COLLAR

1шт.

P927314

PIN

1шт.

P836967

SPECIAL RING

SPRING WASHER

1шт.

P337729

PIVOT

1шт.
