Запчасти Case 160CK (233) - FILTER (07) - HYDRAULIC SYSTEM

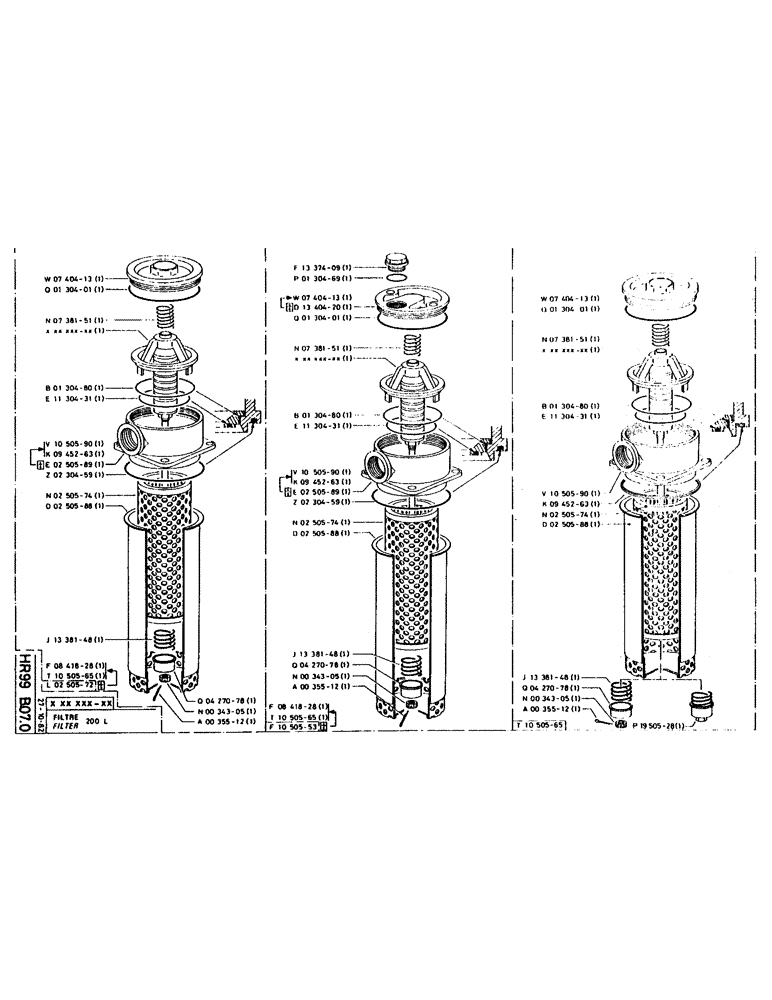

Схема запчастей Case 160CK - (233) - FILTER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P740413

COVER

PLATE

1шт.

P130401

O-RING

3 x 120

1шт.

P738151

COMPRESSION SPRING

1шт.

P130480

O-RING

3 x 109.5

1шт.

P1130431

O-RING

3 x 94.5

1шт.

P1050590

BODY

1шт.

P945263

WASHER, SEALING

SEAL WASHER, 131 x 144 x 5.5

1шт.

P250589

BODY

no longer sold

1шт.

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

SEAL, 5.7 x 139.3-70

1шт.

P250574

CARTRIDGE

1шт.

P250588

FILTER COVER

COVER

1шт.

P1338148

COMPRESSION SPRING

1шт.

P841828

ELECTRO/HYD CONTACT

CONTACT

1шт.

P1050565

FILTER, ENGINE OIL

OIL FILTER

1шт.

P250572

FILTER, ENGINE OIL

OIL FILTER, no longer sold

1шт.

P427078

SUPPORT

1шт.

P34305

NUT

1шт.

P35512

SPLIT PIN

2 x 30

1шт.

P1337409

PLUG

M39 x 1.5

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2.62 x 40.94-80

1шт.

P740413

COVER

PLATE

1шт.

P130401

O-RING

3 x 120

1шт.

P738151

COMPRESSION SPRING

1шт.

P130480

O-RING

3 x 109.5

1шт.

P1130431

O-RING

3 x 94.5

1шт.

P1050590

BODY

1шт.

P945263

WASHER, SEALING

SEAL WASHER, 131 x 144 x 5.5

1шт.

P250589

BODY

no longer sold

1шт.

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

SEAL, 5.7 x 139.3-70

1шт.

P250574

CARTRIDGE

1шт.

P250588

FILTER COVER

COVER

1шт.

P1338148

COMPRESSION SPRING

1шт.

P427078

SUPPORT

1шт.

P34305

NUT

1шт.

P35512

SPLIT PIN

2 x 30

1шт.

P841828

ELECTRO/HYD CONTACT

CONTACT

1шт.

P1050565

FILTER, ENGINE OIL

OIL FILTER

1шт.

P1050553

OIL FILTER, no longer sold

1шт.

P740413

COVER

PLATE

1шт.

P130401

O-RING

3 x 120

1шт.

P738151

COMPRESSION SPRING

1шт.

P130480

O-RING

3 x 109.5

1шт.

P1130431

O-RING

3 x 94.5

1шт.

P1050590

BODY

1шт.

P945263

WASHER, SEALING

SEAL WASHER, 131 x 144 x 5.5

1шт.

P250574

CARTRIDGE

1шт.

P250588

FILTER COVER

COVER

1шт.

P1338148

COMPRESSION SPRING

1шт.

P427078

SUPPORT

1шт.

P34305

NUT

1шт.

P35512

SPLIT PIN

2 x 30

1шт.

P841828

ELECTRO/HYD CONTACT

CONTACT

1шт.

P1050565

FILTER, ENGINE OIL

OIL FILTER

1шт.

P1050553

OIL FILTER, no longer sold

1шт.

P740413

COVER

PLATE

1шт.

P130401

O-RING

3 x 120

1шт.

P738151

COMPRESSION SPRING

1шт.

P130480

O-RING

3 x 109.5

1шт.

P1130431

O-RING

3 x 94.5

1шт.

P1050590

BODY

1шт.

P945263

WASHER, SEALING

SEAL WASHER, 131 x 144 x 5.5

1шт.

P250574

CARTRIDGE

1шт.

P250588

FILTER COVER

COVER

1шт.

P1338148

COMPRESSION SPRING

1шт.

P427078

SUPPORT

1шт.

P34305

NUT

1шт.

P35512

SPLIT PIN

2 x 30

1шт.

P1050565

FILTER, ENGINE OIL

OIL FILTER

1шт.

P1950528

SET OF PARTS

1шт.

Выбрано товаров: 69
