Запчасти Case 160CK (227) - INLET SELECTOR (07) - HYDRAULIC SYSTEM

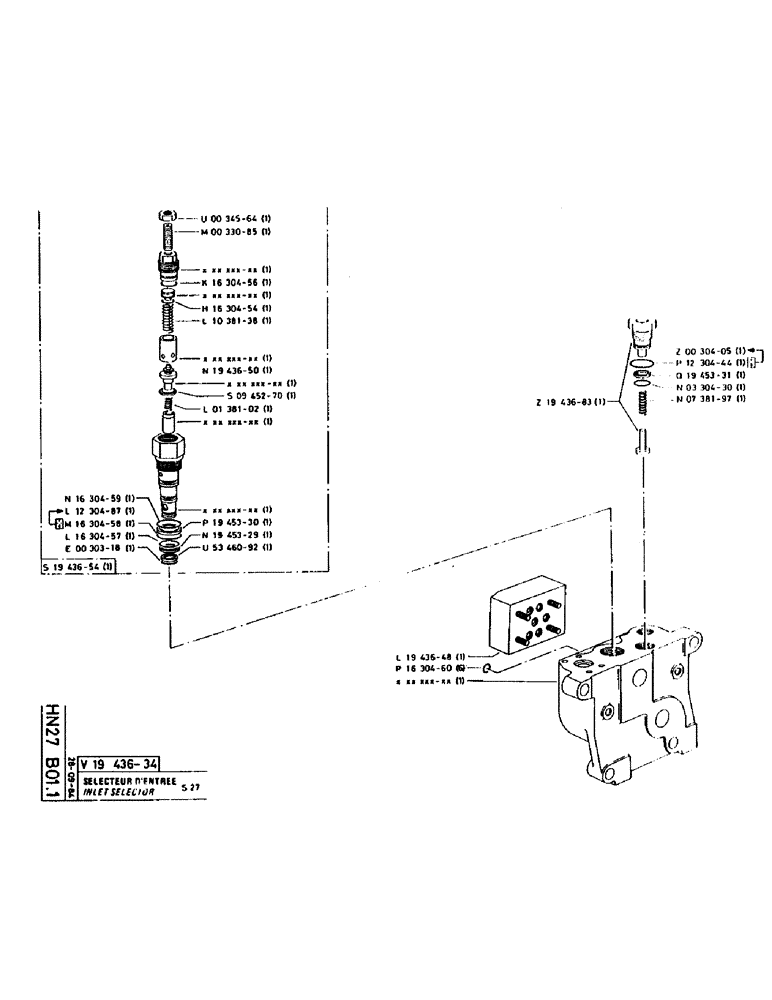

Схема запчастей Case 160CK - (227) - INLET SELECTOR (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P1630459

GASKET

1шт.

P1230487

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

SEAL, 2.62 x 31.42-80

1шт.

P1630458

HYDRAULIC SWIVEL

no longer sold

1шт.

P1630457

HYDRAULIC SWIVEL

1шт.

P30318

O-RING

SEAL, 3.6 x 23

1шт.

P1943654

CARTRIDGE

1шт.

P34564

NUT

1шт.

P33085

SCREW

/BOLT, M16 x 40

1шт.

P1630456

O-RING

1шт.

P1630454

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

P1038138

COMPRESSION SPRING

1шт.

P1943650

VALVE POPPET

VALVE

1шт.

P945270

WASHER, SEALING

SEAL WASHER 20.2 x 25 x 1.5

1шт.

P138102

COMPRESSION SPRING

1шт.

P1945330

BACK-UP RING

BUSHING

1шт.

P1945329

BACK-UP RING

BUSHING

1шт.

P5346092

BACK-UP RING

BUSHING

1шт.

P1943648

VALVE

1шт.

P1630460

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

P1943683

VALVE

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

P1230444

O-RING

2.62 x 32.99-80, no longer sold

1шт.

P1945331

OIL SEAL

BUSHING

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80

1шт.

P738197

COMPRESSION SPRING

1шт.

P1943634

SELECTOR

PLATE

1шт.

Выбрано товаров: 26
