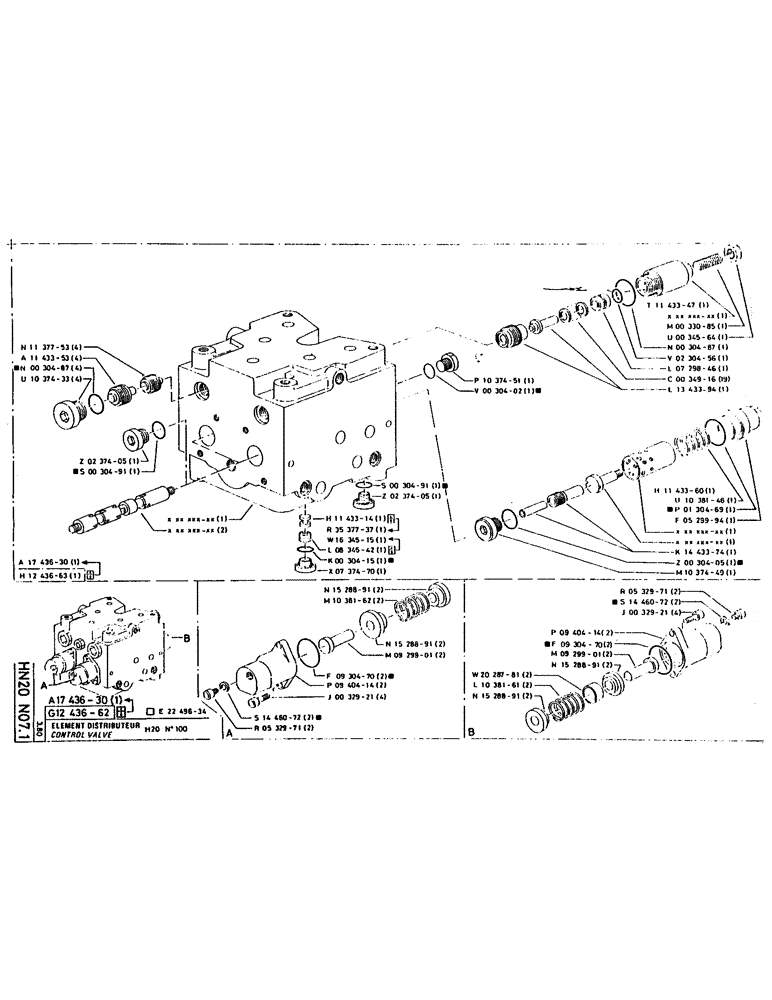

Запчасти Case 160CK (222) - CONTROL VALVE (07) - HYDRAULIC SYSTEM

P1137753

VALVE POPPET

VALVE

4шт.

P1143353

VALVE

4шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80, forms part of a kit

4шт.

P1037433

PLUG

M36 x 1.5

4шт.

P237405

PLUG

3/4 x 12

1шт.

P30491

O-RING

2.5 x 28, forms part of a kit

1шт.

P1743630

SHIN

BRACKET

1шт.

P1243663

SHIN

BRACKET, no longer sold

1шт.

P30491

O-RING

2.5 x 28, forms part of a kit

1шт.

P237405

PLUG

3/4 x 12

1шт.

P1143314

VALVE POPPET

VALVE, no longer sold

1шт.

P3537737

CARTRIDGE

1шт.

P1634515

NUT

M18 x 1.5

1шт.

P834542

NUT

M18 x 1.5, no longer sold

1шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL, 2.62 x 20.29-80, forms part of a kit

1шт.

P737470

PLUG

M18 x 1.5

1шт.

P1037451

PLUG

1шт.

P30402

O-RING

2.5 x 22.5, forms part of a kit

1шт.

P1143347

VALVE

1шт.

P33085

SCREW

/BOLT, M16 x 40

1шт.

P34564

NUT

1шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80, forms part of a kit

1шт.

P230456

O-RING

2.5 x 20

1шт.

P729846

PUSHER

1шт.

P34916

RUBBER WASHER

SPRING WASHER, 25 x 12.2 x 1.5

19шт.

P1343394

ASSEMBLY

1шт.

P1143360

LIMITER

1шт.

P1038146

SPRING COMPRESSOR

COMPRESSION SPRING

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2.62 x 40.94-80, forms part of a kit

1шт.

P529994

COVER

1шт.

P1443374

ASSY

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80, forms part of a kit

1шт.

P1037449

PLUG

M30 x 1.5

1шт.

P1743630

SHIN

BRACKET

1шт.

P1243662

SHIN

BRACKET, no longer sold

1шт.

P2249634

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1446072

WASHER

GASKET, 11 x 6.6 x 1.6, forms part of a kit

2шт.

P532971

SCREW

/BOLT, M6 x 5

2шт.

P1528891

CUPEL

2шт.

P1038162

COMPRESSION SPRING

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80, forms part of a kit

2шт.

P940414

CAP

COVER

2шт.

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.

P1528891

CUPEL

2шт.

P929901

END FITTING

2шт.

P2028781

SPACER

2шт.

P1038161

COMPRESSION SPRING

2шт.

P1528891

CUPEL

2шт.

P940414

CAP

COVER

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80, forms part of a kit

2шт.

P929901

END FITTING

2шт.

P1528891

CUPEL

2шт.

P532971

SCREW

/BOLT, M6 x 5

2шт.

P1446072

WASHER

GASKET, 11 x 6.6 x 1.6, forms part of a kit

2шт.

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.
