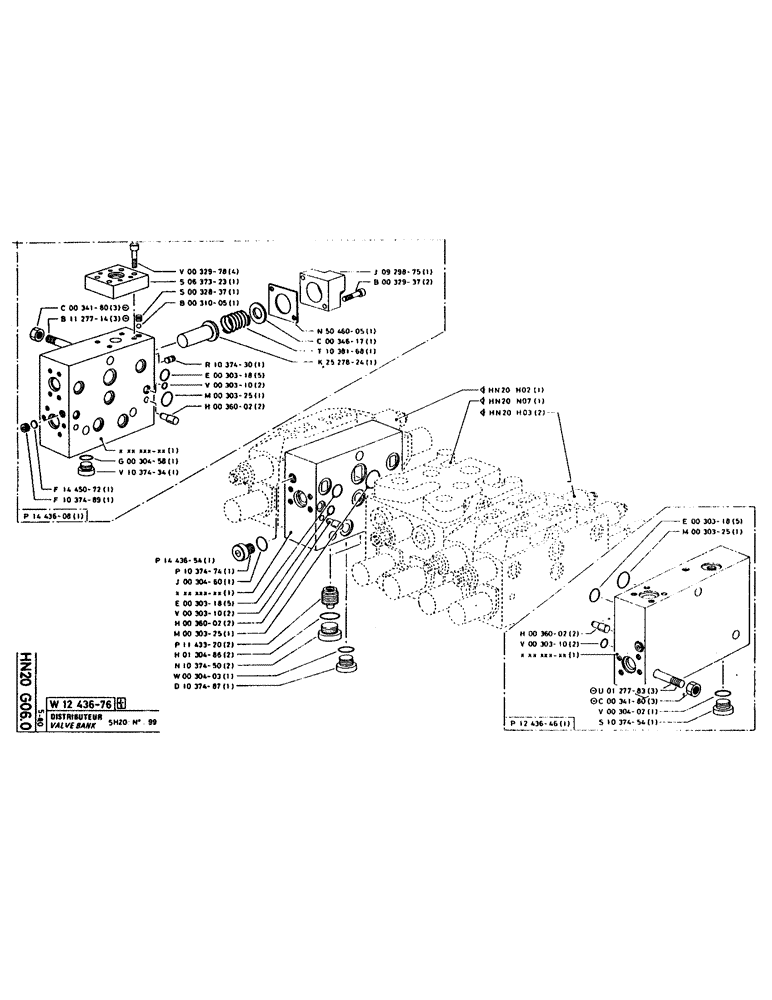

Запчасти Case 160CK (213) - VALVE BANK (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
825-1418
NUT,M18, Cl 8
part not sold under assembly reference number
3шт.
P1127714
STEM
ROD, M18 x 275, part not sold under assembly reference number
3шт.
P30458
O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro
SEAL, 2.62 x 29.82-80
1шт.
P1037434
PLUG
M27 x 1.5
1шт.
P1445072
HOLE PLUG BUTTON
BUTTON, 12 x 2
1шт.
P1037489
PLUG
M14 x 1.5
1шт.
P1443608
SHIN
BRACKET
1шт.
P32978
SCREW
/BOLT, M14 x 30
4шт.
P637323
RESTRICTOR
DN42 x 34
1шт.
P32837
SCREW
/BOLT, M12 x 12
1шт.
P31005
BALL
1шт.
P1037430
ASSEMBLY
ASSY
1шт.
P30318
O-RING
SEAL, 3.6 x 23
5шт.
P30310
SEAL
2.7 x 12.1
2шт.
P30325
SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
3.6 x 34.1
1шт.
P36002
SPLIT PIN/SAFETY, 10 x 20
2шт.
P5046005
SEAL
1шт.
P34617
WASHER
1шт.
P1038168
COMPRESSION SPRING
1шт.
P2527824
VALVE POPPET
VALVE
1шт.
P929875
CAP
COVER
1шт.
P32937
SCREW
/BOLT, M10 x 50
2шт.
P1443654
LARGE PLATE
PLATE
1шт.
P1037474
PLUG
M22 x 1.5
1шт.
P30460
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
SEAL, 2.62 x 25.07-80
1шт.
P30318
O-RING
SEAL, 3.6 x 23
5шт.
P30310
SEAL
2.7 x 12.1
2шт.
P36002
SPLIT PIN/SAFETY, 10 x 20
2шт.
P30325
SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
3.6 x 34.1
1шт.
P1143320
VALVE POPPET
VALVE
2шт.
P130486
O-RING
SEAL, 2.62 x 34.59-80
2шт.
P1037450
PLUG
M33 x 1.5
2шт.
P30403
O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro
SEAL, 2.62 x 26.64-80
1шт.
P1037487
PLUG
M24 x 1.5
1шт.
P36002
SPLIT PIN/SAFETY, 10 x 20
2шт.
P30310
SEAL
2.7 x 12.1
2шт.
P1243646
SHIN
BRACKET
1шт.
P127783
ASSEMBLING ROD, M18 x 270, part not sold under assembly reference number
3шт.
825-1418
NUT,M18, Cl 8
part not sold under assembly reference number
3шт.
P30402
O-RING
2.5 x 22.5
1шт.
P1037454
PLUG
M20 x 1.5
1шт.
P30318
O-RING
SEAL, 3.6 x 23
5шт.
P30325
SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
3.6 x 34.1
1шт.
P1243676
BLOCK, no longer sold
1шт.
Выбрано товаров: 44
