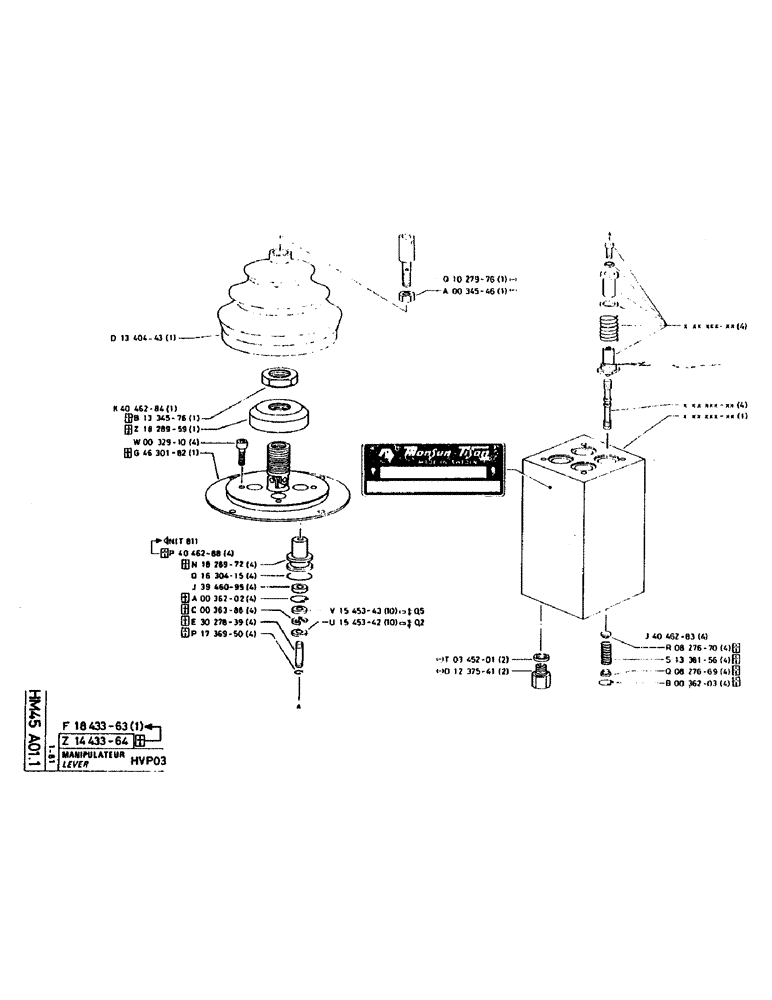

Запчасти Case 160CK (199) - LEVER (07) - HYDRAULIC SYSTEM

P1340443

BELLOWS

1шт.

P4046284

LARGE PLATE

PLATE

1шт.

P32910

SCREW

/BOLT, M6 x 16

4шт.

P1828972

GUIDE

no longer sold

4шт.

P1630415

O-RING

2.4 x 15.3-70

4шт.

P3946095

SEAL

6 x 11 x 3.5-70

4шт.

P36202

LOCKING RING, no longer sold

4шт.

P36388

LOCKING RING, no longer sold

4шт.

P1736950

SPECIAL MAT. SEAL

SPRING WASHER, no longer sold

4шт.

P1027976

PIN

part not sold under assembly reference number

1шт.

P34546

NUT

part not sold under assembly reference number

1шт.

P1545343

BLOCK

SHIM, 11 x 6.5 x 0.5

10шт.

P1545342

BLOCK

SHIM, 11 x 6.5 x 0.2

10шт.

P345201

SEAL

13.2 x 18 x 1.2, part not sold under assembly reference number

2шт.

P1237541

UNION

part not sold under assembly reference number

2шт.

P4046283

CARTRIDGE

4шт.

P827670

GUIDE

no longer sold

4шт.

P1338156

COMPRESSION SPRING, no longer sold

4шт.

P827669

GUIDE, no longer sold

4шт.

P36203

RING, SNAP

LOCKING RING, no longer sold

4шт.

P1843363

BLOCK ASSY.

BLOCK

1шт.
