Запчасти Case 160CK (192) - SAFETY VALVE (07) - HYDRAULIC SYSTEM

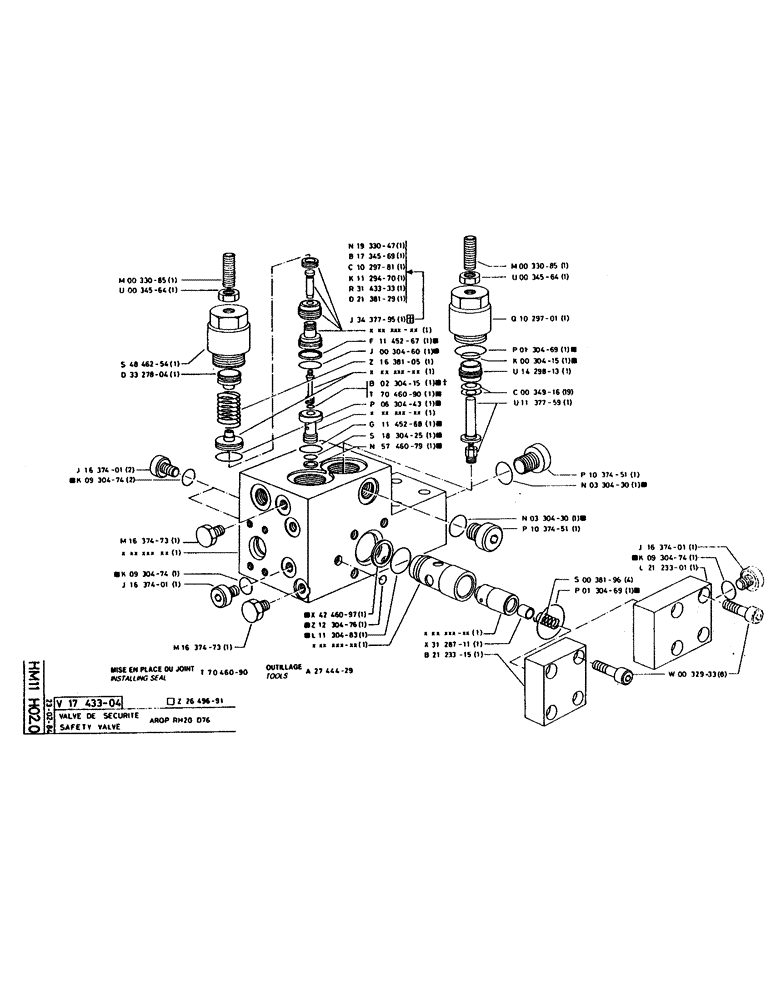

Схема запчастей Case 160CK - (192) - SAFETY VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P33085

SCREW

/BOLT, M16 x 40

1шт.

P34564

NUT

1шт.

P4846254

CAP

COVER

1шт.

P3327804

TAPPET

PUSHER

1шт.

P1637401

PLUG

2шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, forms part of a kit

2шт.

P1637473

PLUG

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, forms part of a kit

1шт.

P1637401

PLUG

1шт.

P1637473

PLUG

1шт.

P7046090

SEAL

1шт.

P1933047

SCREW

/BOLT, M48 x 2

1шт.

P1734569

NUT

M48 x 2

1шт.

P1029781

CAP

COVER

1шт.

P1129470

GUIDE

1шт.

P3143333

CARTRIDGE

1шт.

P2138129

COMPRESSION SPRING

1шт.

P3437795

CARTRIDGE

no longer sold

1шт.

P1145267

BACK-UP RING

JOINT, 2.18 x 25.86-90, forms part of a kit

1шт.

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2.62 x 25.07-80, forms part of a kit

1шт.

P1638105

COMPRESSION SPRING

1шт.

P230415

O-RING

SEAL, 1.78 x 5.28-80, forms part of a kit, no longer sold

1шт.

P7046090

SEAL

forms part of a kit

1шт.

P630443

O-RING

SEAL, 3.53 x 29.74-80, forms part of a kit

1шт.

P1145268

SEAL

WASHER, 19.9 x 24.5 x 1.5, forms part of a kit

1шт.

P1830425

O-RING

SEAL, 2.62 x 13.11-80 , forms part of a kit

1шт.

P5746079

BACK-UP RING

JOINT, 18 x 1.1, forms part of a kit

1шт.

P4246097

BACK-UP RING

JOINT, 3 x 25.81-90, forms part of a kit

1шт.

P1230476

O-RING

SEAL, 2.62 x 7.59-80, forms part of a kit

1шт.

P1130483

O-RING

SEAL, 3.53 x 24.99-80, forms part of a kit

1шт.

P2744429

MANDREL

1шт.

P33085

SCREW

/BOLT, M16 x 40

1шт.

P34564

NUT

1шт.

P1029701

CAP

COVER

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2.62 x 40.94-80, forms part of a kit

1шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL, 2.62 x 20.29-80, forms part of a kit

1шт.

P1429813

TAPPET

PUSHER

1шт.

P34916

RUBBER WASHER

SPRING WASHER, 25 x 12.2 x 1.5

19шт.

P1137759

ASSY

1шт.

P1037451

PLUG

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, forms part of a kit

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, forms part of a kit

1шт.

P1037451

PLUG

1шт.

P38196

COMPRESSION SPRING

4шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2.62 x 40.94-80, forms part of a kit

1шт.

P3128711

BLOCK

SHIM

1шт.

P2123315

LARGE PLATE

PLATE

1шт.

P1637401

PLUG

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2.62 x 15.54-80, forms part of a kit

1шт.

P2123301

LARGE PLATE

PLATE

1шт.

P32933

SCREW

/BOLT, M10 x 30

8шт.

P1743304

BRACKET

1шт.

P2649691

SEAL PACKAGE

SET OF SEALS

1шт.

P7046090

SEAL

1шт.

P2744429

MANDREL

1шт.

Выбрано товаров: 55
