Запчасти Case 160CK (191) - SAFETY VALVE (07) - HYDRAULIC SYSTEM

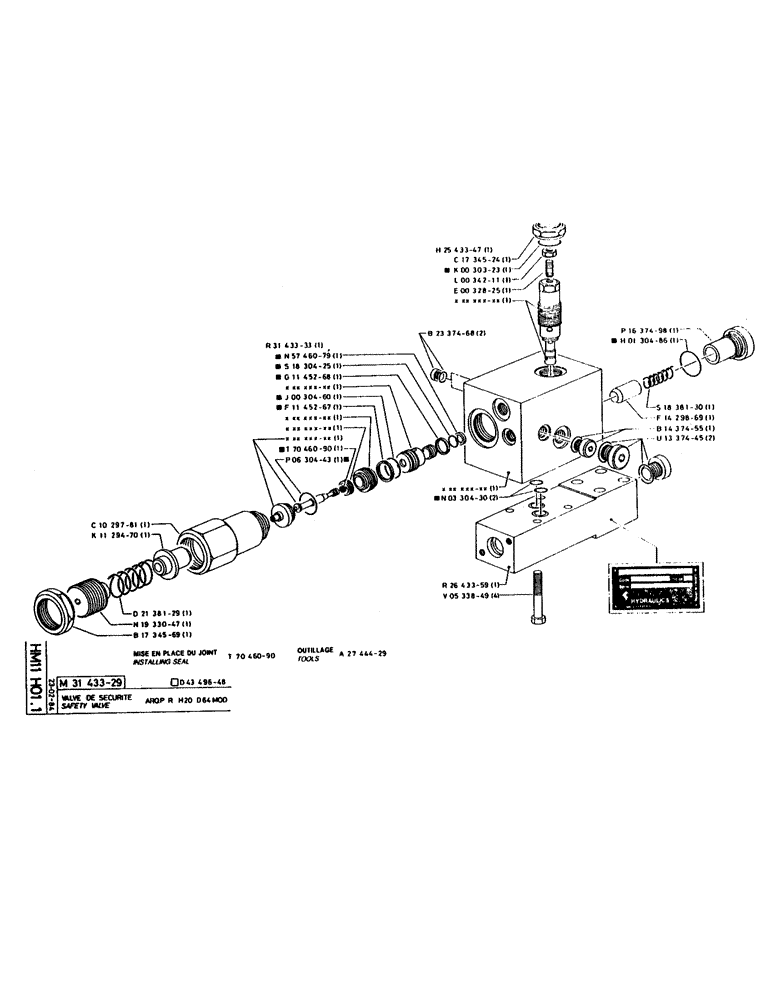

Схема запчастей Case 160CK - (191) - SAFETY VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P1029781

CAP

COVER

1шт.

P1129470

GUIDE

1шт.

P2138129

COMPRESSION SPRING

1шт.

P1933047

SCREW

/BOLT, M48 x 2

1шт.

P1734569

NUT

M48 x 2

1шт.

P3143333

CARTRIDGE

1шт.

P5746079

BACK-UP RING

JOINT, 18 x 1.1, forms part of a kit

1шт.

P1830425

O-RING

SEAL, 2.62 x 13.11-80, forms part of a kit

1шт.

P1145268

SEAL

WASHER, 19.9 x 24.5 x 1.5, forms part of a kit

1шт.

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2.62 x 25.07-80, forms part of a kit

1шт.

P1145267

BACK-UP RING

JOINT, 2.18 x 25.86-90, forms part of a kit

1шт.

P7046090

SEAL

forms part of a kit

1шт.

P630443

O-RING

SEAL, 3.53 x 29.74-80, forms part of a kit

1шт.

P2543347

CARTRIDGE

1шт.

P1734524

NUT

M33 x 1.5

1шт.

P30323

SEAL

3.6 x 30.8, forms part of a kit

1шт.

P34211

NUT

1шт.

P32825

SCREW

/BOLT, M8 x 25

1шт.

P2337468

PLUG

M10 x 1

2шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, forms part of a kit

2шт.

P2643359

SHIN

BRACKET

1шт.

P533849

SCREW

/BOLT, M10 x 65

4шт.

P1637498

PLUG

1шт.

P130486

O-RING

SEAL, 2.62 x 34.59-80, forms part of a kit

1шт.

P1838130

COMPRESSION SPRING

1шт.

P1429869

VALVE POPPET

VALVE

1шт.

P1437455

PLUG

1шт.

P1337445

PLUG

2шт.

P7046090

SEAL

1шт.

P2744429

MANDREL

1шт.

P4349648

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P3143329

SHIN

BRACKET

1шт.

Выбрано товаров: 32
