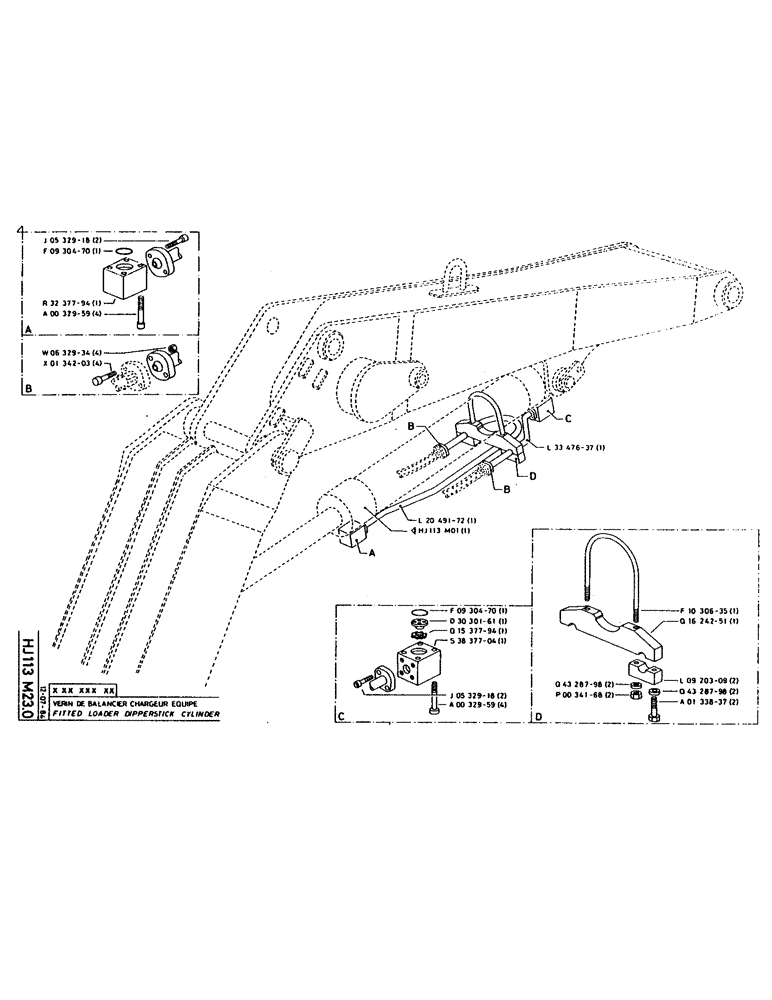

Запчасти Case 160CK (182) - FITTED LOADER DIPPERSTICK CYLINDER (07) - HYDRAULIC SYSTEM

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

1шт.

P3237794

SHIN

BRACKET

1шт.

P32959

SCREW

/BOLT, M16 x 100

4шт.

P632934

SCREW

/BOLT, M12 x 65

4шт.

337475

NUT,M12, Cl 10

4шт.

P3347637

PIPE, 24 x 34

1шт.

P2049172

PIPE, 24 x 34

1шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

1шт.

P3030161

STOP

1шт.

P1537794

VALVE POPPET

VALVE

1шт.

P3837704

SHIN

BRACKET

1шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

P32959

SCREW

/BOLT, M16 x 100

4шт.

P4328798

WASHER

14.5 x 10 x 28

2шт.

P34168

NUT

2шт.

P1030635

STIRRUP

BRACKET, 216 x 212

1шт.

P1624251

SUPPORT

1шт.

P920309

SHIN

BRACKET

2шт.

P4328798

WASHER

14.5 x 10 x 28

2шт.

P133837

SCREW

/BOLT, M14 x 80

2шт.
