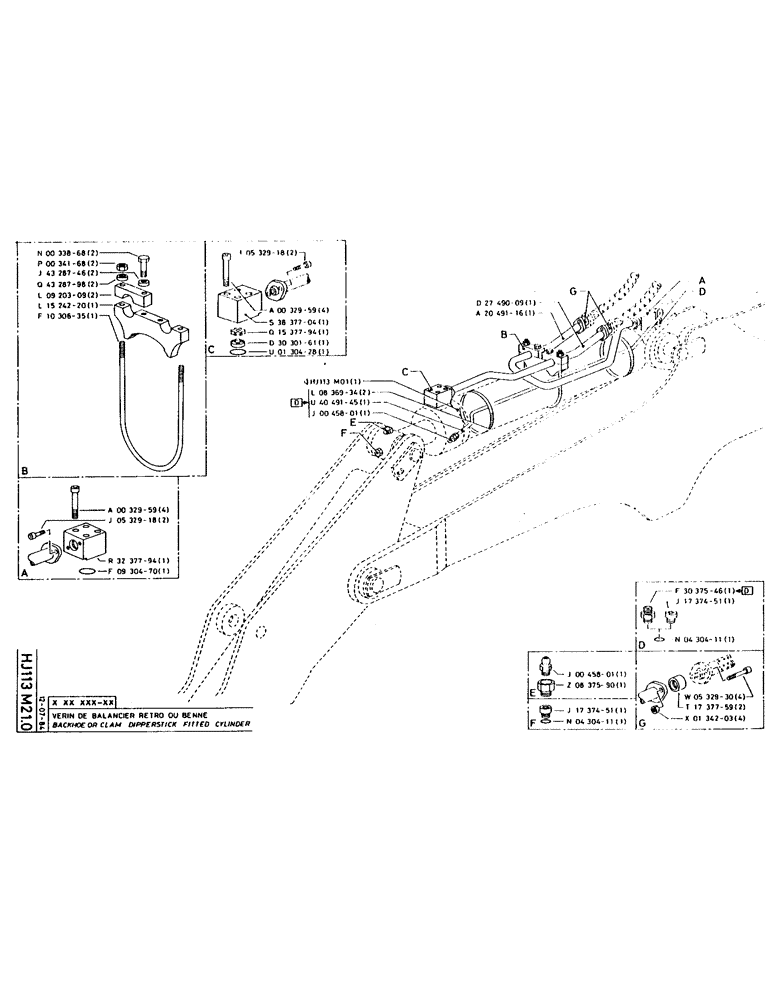

Запчасти Case 160CK (177) - BACKHOE OR CLAM DIPPERSTICK FITTED CYLINDER (07) - HYDRAULIC SYSTEM

P33868

SCREW

/BOLT, M16 x 80

2шт.

P34168

NUT

2шт.

P4328746

WASHER

16.5 x 11 x 30

2шт.

P4328798

WASHER

14.5 x 10 x 28

2шт.

P920309

SHIN

BRACKET

2шт.

P1524220

BRACKET

1шт.

P1030635

STIRRUP

BRACKET, 216 x 212

1шт.

P32959

SCREW

/BOLT, M16 x 100

4шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

P3237794

SHIN

BRACKET

1шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

1шт.

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

P32959

SCREW

/BOLT, M16 x 100

4шт.

P3837704

SHIN

BRACKET

1шт.

P1537794

VALVE POPPET

VALVE

1шт.

P3030161

STOP

1шт.

P130428

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

SEAL, 3.53 x 44.04-60

1шт.

P836934

COLLAR CLAMP

CLAMP COLLAR (Germany)

2шт.

P4049145

PIPE

6 x 10 (Germany)

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, (Germany) M8 x 1.25

1шт.

P2749009

PIPE, 24 x 34

1шт.

P2049116

PIPE

24 x 34

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

1шт.

P837590

END FITTING

1шт.

P1737451

PLUG

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P3037546

UNION

(Germany)

1шт.

P1737451

PLUG

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P532930

SCREW

/BOLT, M12 x 100

4шт.

P1737759

JUNCTION

2шт.

337475

NUT,M12, Cl 10

4шт.
