Запчасти Case 160CK (171) - FITTING BOOM CYLINDER WITH SAFETY VALVE (07) - HYDRAULIC SYSTEM

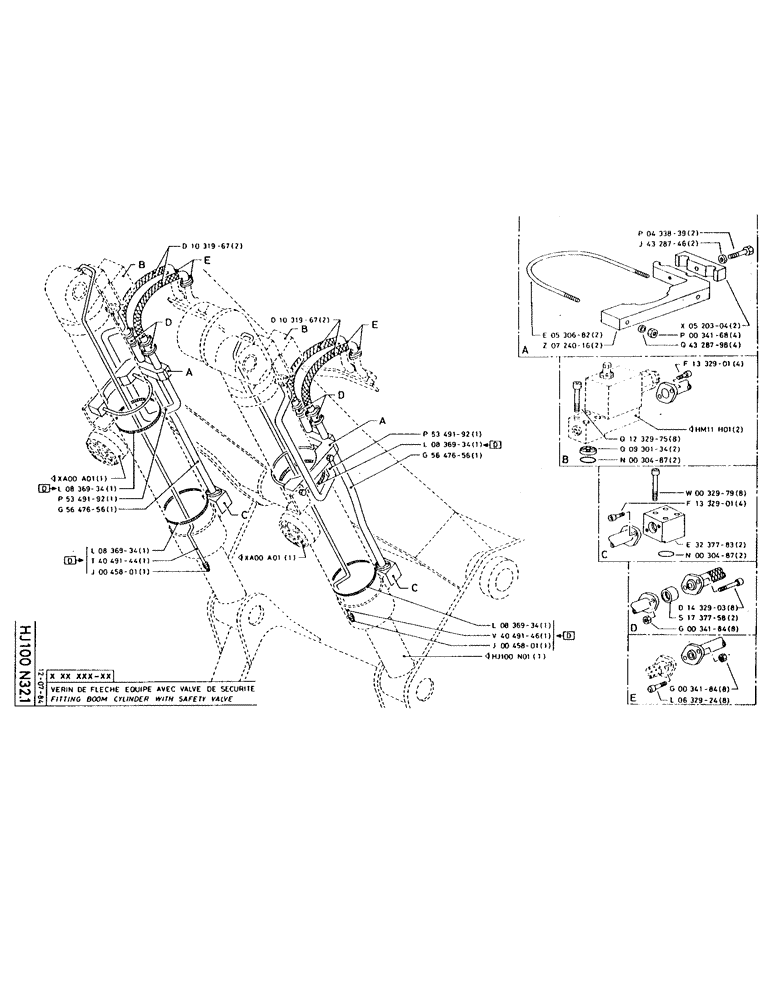

Схема запчастей Case 160CK - (171) - FITTING BOOM CYLINDER WITH SAFETY VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

P1031967

HOSE

2шт.

P1031967

HOSE

2шт.

P836934

COLLAR CLAMP

CLAMP COLLAR (Germany)

1шт.

P5349192

PIPE

19 x 27

1шт.

P5647656

PIPE

19 x 27

1шт.

P836934

COLLAR CLAMP

CLAMP COLLAR (Germany)

1шт.

P4049144

PIPE

6 x 10 (Germany)

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, (Germany) M8 x 1.25

1шт.

P5349192

PIPE

19 x 27

1шт.

P836934

COLLAR CLAMP

CLAMP COLLAR (Germany)

1шт.

P5647656

PIPE

19 x 27

1шт.

P836934

COLLAR CLAMP

CLAMP COLLAR (Germany)

1шт.

P4049146

PIPE

6 x 10 (Germany)

1шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, (Germany) M8 x 1.25

1шт.

P724016

SUPPORT

2шт.

P433839

SCREW

/BOLT, M16 x 65

2шт.

P4328746

WASHER

16.5 x 11 x 30

2шт.

P520304

SHIN

BRACKET

2шт.

P34168

NUT

4шт.

P4328798

WASHER

14.5 x 10 x 28

4шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

/BOLT, M14 x 70

8шт.

P930134

STOP

2шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80

2шт.

P32979

SCREW

/BOLT, M14 x 80

8шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P3237783

SHIN

BRACKET

2шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80

2шт.

P1432903

SCREW

/BOLT, M10 x 85

8шт.

P1737758

JUNCTION

2шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

86500689

NUT,M10 x 1.5, Cl 10

8шт.

L632924

SCREW

/BOLT, M10 x 55

8шт.

Выбрано товаров: 33
